Scissor Lift · Model ASL40T
ASL40T 4T In-ground Ultra-thin Big Scissor Lift
In-ground ultra-thin 4T lift with secondary lift
Product Overview
ASL40T is a 4000 kg in-ground ultra-thin big scissor lift with a secondary lifting system, so one bay covers regular repair and wheel alignment. A four cylinder structure keeps the movement stable and smooth, and a pneumatic safety lock replaces the mechanical trip.
Key Benefits
What This Machine Changes in the Bay
- Ultra-thin platform sits almost flush when lowered, leaving the bay usable
- Secondary lifting system gives the wheels-free position alignment needs
- Four cylinder structure gives stable and smooth movement
- Pneumatic safety lock is more reliable than a mechanical trip
- 24V safe electronic control with front and rear service doors
Application Scenarios
- Dedicated alignment bays that must stay clear between jobs
- Workshops fitting low-clearance and performance vehicles
- Combined repair and alignment work in one floor pocket
- Sites where a raised platform would obstruct vehicle movement
Who It Is For
- Alignment specialists and tyre chains
- General repair shops adding geometry work
- Workshops with limited bay space
- Distributors specifying complete alignment bays
Problems It Solves
What It Stops Costing You
- Surface-mounted lifts block movement across the workshop floor
- A separate alignment bay costs floor area the workshop cannot spare
- Low vehicles ground out on thick lowered platforms
- Mechanical safety locks jam or wear over time
Technical Features
- Capacity 4000 kg / 9000 lbs
- In-ground ultra-thin installation with secondary lifting system
- Pneumatic safety lock
- Four cylinder structure for stable and smooth movement
- Electronic control box with front and rear door
- 24V safe electronic control
- Shot blasting finish with outdoor-grade automatic electrostatic powder coating
- German Bosch Rexroth hydraulic valve parts with Italian oil sealing rings and ball valves

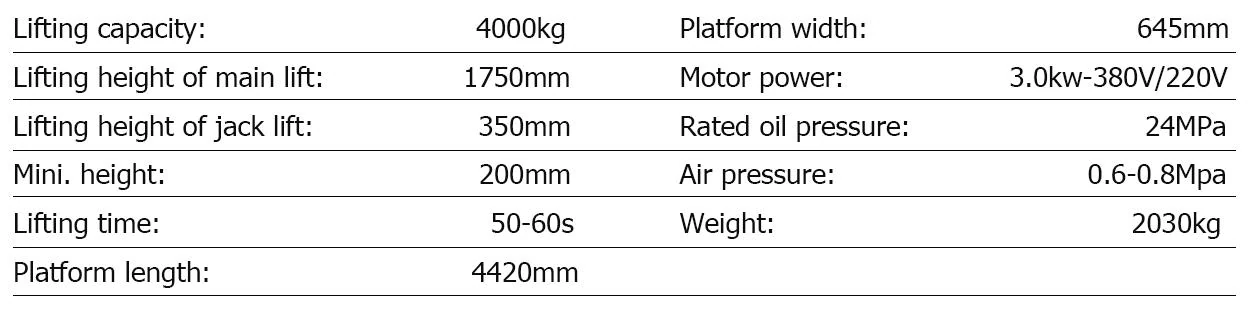

Specifications
Compared With Other Models
- Against the ASL40PT: in-ground installation rather than surface mounted
- Against the ASL40/40S: an ultra-thin platform profile in the same 4T class
- Against a four post lift: the floor stays clear when the lift is down
Use Guide

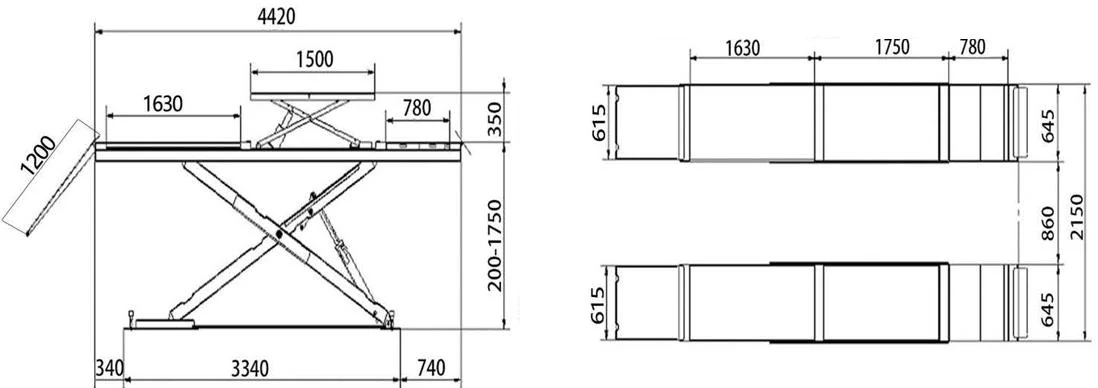

- Confirm the floor pocket against the foundation drawing before civil work
- Drive on with the wheels centred and chock the vehicle
- Use the main lift for repair and the secondary lift for alignment
- Lower onto the safety locks before working underneath
Quality and Support
What Comes With the Machine
Quality Assurance
Every product is supplied with a long warranty assurance.
Expert Guidance
Pre-sales and after-sales teams give professional guidance and aftersales support.
Reliability
Consistent and reliable performance across every product line.
Innovation
An experienced R&D team develops the products the market asks for.
Customization. Machines are built to your local voltage and frequency, and optional equipment is listed on the quotation. Send us your requirement and we will confirm what can be changed before you order.
ASL40T Questions Buyers Ask
What is the capacity?
4000 kg, equivalent to 9000 lbs.
Does it support wheel alignment?
Yes. The secondary lifting system provides the wheels-free position required for alignment.
Why does it use four cylinders?
Four cylinders keep the platform movement stable and smooth, particularly with an off-centre load.
What safety lock is fitted?
A pneumatic safety lock, not a purely mechanical trip.
What civil work is needed?
A floor pocket to our foundation drawing, which we supply before the civil work is commissioned.
Can you quote the lift with an aligner?
Yes. Tell us the aligner model you are considering and we will quote the bay as a package.
