ATL80CA 8T Two Post Lift With Electric Release

Name: ATL80CA 8T Electric Two Post Lift
Brand: Autocraft
SKU: ATL80CA

Product Overview

ATL80CA is an 8000 kg two post lift with electric release, built for the heavy vans and light trucks a general workshop cannot put on a 4T lift. The columns are laser cut from 5 mm plate on a large base, and the hydraulic valve parts are German Bosch Rexroth with Italian seals and ball valves.

Key Benefits

What This Machine Changes in the Bay

8000 kg / 17,600 lbs capacity takes heavy vans and light trucks
Electric release keeps the lowering procedure the same for every technician
Laser cut 5 mm columns on a large base spread the load into the slab
Optional 24V safety electronic control box
Shot blasted frame with outdoor-grade electrostatic powder coating

Application Scenarios

Heavy van and light truck servicing
Fleet workshops with a mixed vehicle weight range
Commercial vehicle brake and suspension work
Municipal and utility vehicle depots

Who It Is For

Commercial vehicle and fleet workshops
Heavy van specialists
Municipal and utility depots
Distributors supplying heavy-duty two post lifts

Problems It Solves

What It Stops Costing You

4T and 5T lifts cannot take the heaviest vehicles in a mixed fleet
Manual release on a heavy lift varies between technicians
Light columns flex under repeated heavy loading
Poorly finished frames corrode in wash bays and wet workshops

Technical Features

Capacity 8000 kg / 17,600 lbs
Two post lift with electric release
Laser cut 5 mm column with large base
Optional 24V safety electronic control box
Shot blasting finish with outdoor-grade automatic electrostatic powder coating
Robotic fabrication for dimensional accuracy
German Bosch Rexroth hydraulic valve parts with Italian oil sealing rings and ball valves

Specifications

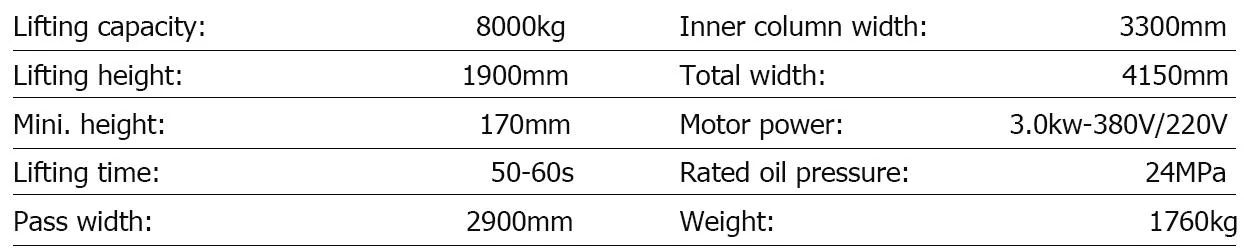

ATL80CA specification table from the manufacturer — Specification table for the ATL80CA as published by the manufacturer.

Compared With Other Models

Against the ATL40 family: double the capacity for commercial vehicle work
Against the AFL80 four post lift: full wheels-free access rather than runway support
Against manual lock heavy lifts: electric release gives a repeatable lowering procedure

Use Guide

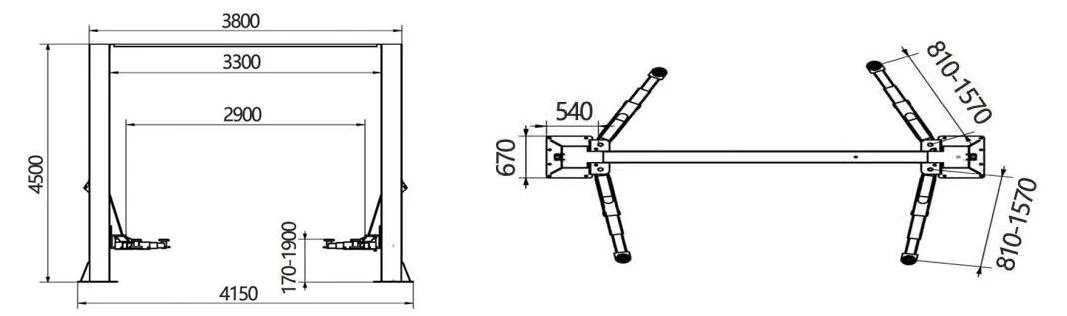

Check slab thickness and anchor specification against the installation drawing
Set the arms under the manufacturer's designated lifting points
Raise fully and lower onto the safety locks before working underneath
Release electrically before lowering the vehicle

Quality and Support

What Comes With the Machine

Quality Assurance

Every product is supplied with a long warranty assurance.

Expert Guidance

Pre-sales and after-sales teams give professional guidance and aftersales support.

Reliability

Consistent and reliable performance across every product line.

Innovation

An experienced R&D team develops the products the market asks for.

Customization. Machines are built to your local voltage and frequency, and optional equipment is listed on the quotation. Send us your requirement and we will confirm what can be changed before you order.
