Wheel Alignment Bay
An aligner, a lift that can hold the vehicle wheels-free, and the floor work to put them together.
Scissor Lift · Model ASL50T
ASL50T 5T Ultra-thin Scissor Lift
Six cylinder 5T ultra-thin lift with one button levelling
Product Overview
ASL50T is a 5000 kg ultra-thin in-ground scissor lift with a second lifting system for repair and wheel alignment. A six cylinder structure carries the platform, and one button levelling brings both sides back into line without manual adjustment, which is what keeps alignment readings repeatable on a heavy lift.
Key Benefits
What This Machine Changes in the Bay
- 5000 kg / 11,000 lbs capacity in an ultra-thin platform profile
- One button levelling re-levels the platform without manual intervention
- Six cylinder structure keeps movement stable under heavy off-centre loads
- Secondary lifting system supports wheels-free wheel alignment
- Pneumatic safety release with 24V safety electronic control
Application Scenarios
- Alignment bays handling vans and larger SUVs
- Workshops running geometry work at volume where levelling drift matters
- Combined repair and alignment in one floor pocket
- Sites fitting low-clearance vehicles that need a thin approach
Who It Is For
- Alignment specialists working on heavier vehicles
- Tyre and service chains standardising a 5T alignment bay
- Workshops with a van and light commercial customer base
- Distributors specifying complete heavy alignment bays
Problems It Solves
What It Stops Costing You
- Platform levelling drifts on heavy lifts and spoils alignment readings
- Four cylinder lifts work harder under a 5T off-centre load
- Thick lowered platforms ground out low vehicles
- Manual re-levelling takes a technician off billable work
Technical Features
- Capacity 5000 kg / 11,000 lbs
- Ultra-thin in-ground scissor lift with second lifting system
- One button levelling
- Pneumatic safety release
- Six cylinder structure for stable movement
- Electronic control box with front and rear door
- 24V safety electronic control
- Shot blasting finish with outdoor-grade automatic electrostatic powder coating
- German Bosch Rexroth hydraulic valve parts with Italian oil sealing rings and ball valves

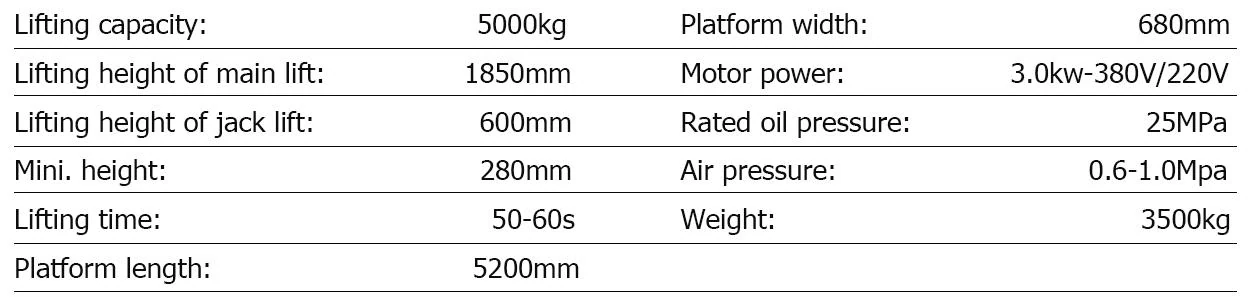

Specifications
Compared With Other Models
- Against the ASL40T: 5000 kg capacity and six cylinders instead of four
- Against the ASL50: an ultra-thin platform profile in the same capacity class
- Against a four post lift: the floor stays clear when the lift is lowered
Use Guide

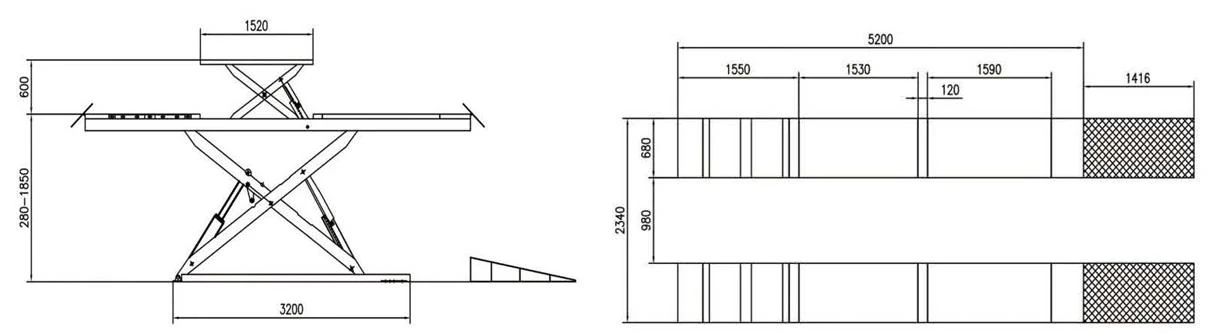

- Confirm the floor pocket against the foundation drawing before civil work
- Drive on with the wheels centred and chock the vehicle
- Use one button levelling before taking alignment readings
- Lower onto the safety locks before working underneath
Quality and Support
What Comes With the Machine
Quality Assurance
Every product is supplied with a long warranty assurance.
Expert Guidance
Pre-sales and after-sales teams give professional guidance and aftersales support.
Reliability
Consistent and reliable performance across every product line.
Innovation
An experienced R&D team develops the products the market asks for.
Customization. Machines are built to your local voltage and frequency, and optional equipment is listed on the quotation. Send us your requirement and we will confirm what can be changed before you order.
Bay Solutions Using This Machine
ASL50T Questions Buyers Ask
What is the rated capacity?
5000 kg, equivalent to 11,000 lbs.
What does one button levelling do?
It brings the platform back level in one operation rather than adjusting each side by hand, which keeps alignment readings repeatable.
Why six cylinders?
Six cylinders spread the load and keep movement stable on a 5T ultra-thin platform.
Can it do wheel alignment?
Yes. The second lifting system provides the wheels-free position alignment requires.
What civil work is required?
A floor pocket built to our foundation drawing, which we send before the civil work begins.
What hydraulic parts are used?
German Bosch Rexroth hydraulic valve parts with Italian imported oil sealing rings and ball valves.
