General Repair Bay
One lift that suits the building you have, plus the oil handling equipment that keeps the floor safe.
Scissor Lift · Model ASL27M
ASL27M 2.7T Middle Rise Scissor Lift
Trench-free mid-rise lift with 110 mm start height
Product Overview
ASL27M is a 2700 kg middle position scissor lift with an initial height of only 110 mm, so it is trench-free and can be placed on an existing floor. An integrated pulley and coupled axle drive keep the movement synchronised, and the vehicle can be lowered manually if the power supply fails.
Key Benefits
What This Machine Changes in the Bay
- Initial height of 110 mm keeps the lift trench-free on an existing floor
- Integrated pulley and coupled axle drive keep both sides synchronised
- Manual lowering when the power supply is off, so a vehicle is never stranded
- Imported electromagnetic valve and seal components stabilise the hydraulic system
- Upper return oil in the cylinder keeps the bore rust-proof
- Audible safety alarm on both raising and lowering
Application Scenarios
- Workshops that cannot cut a trench into the floor
- Brake, tyre and suspension work at mid height
- Sites with unreliable mains power where manual lowering matters
- Secondary bays added to an existing workshop
Who It Is For
- Workshops with fixed or protected floors
- Service centres in markets with unstable power supply
- Small and mid-size independent garages
- Distributors supplying trench-free lifting solutions
Problems It Solves
What It Stops Costing You
- Cutting a trench is impossible or too expensive in many buildings
- A power cut can strand a vehicle in the air on a lift without manual release
- Unsynchronised mid-rise lifts twist under off-centre loads
- Cylinder corrosion causes leaks and unplanned downtime
Technical Features
- Capacity 2700 kg / 6000 lbs
- Middle position scissor lift with 110 mm initial height
- Trench-free installation with integrated pulley
- Pneumatic release
- Coupled axle drive for synchronous lifting
- Hydraulic system with imported electromagnetic valve and seal components
- Manual lowering of lift and vehicle when the power supply is off
- Safety alarm device for raising and lowering
- Oil cylinder with upper return oil for rust protection

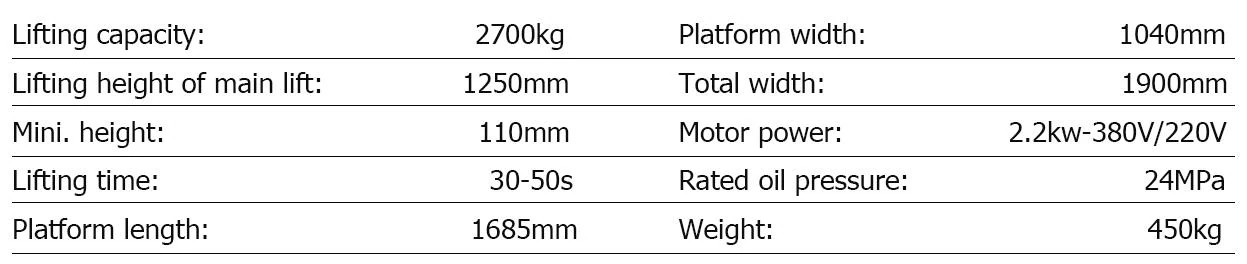

Specifications
Compared With Other Models
- Against the ASL30M: a lower 110 mm start height and trench-free integrated pulley design
- Against a full-rise scissor lift: mid working height, no civil work and lower cost
- Against a two post lift: no anchoring and nothing overhead
Use Guide
- Place the lift on sound, level floor; no trench is required
- Drive on squarely over the low 110 mm profile and chock the vehicle
- Raise to working height and settle onto the release lock
- In a power failure, use the manual lowering procedure in the manual
Quality and Support
What Comes With the Machine
Quality Assurance
Every product is supplied with a long warranty assurance.
Expert Guidance
Pre-sales and after-sales teams give professional guidance and aftersales support.
Reliability
Consistent and reliable performance across every product line.
Innovation
An experienced R&D team develops the products the market asks for.
Customization. Machines are built to your local voltage and frequency, and optional equipment is listed on the quotation. Send us your requirement and we will confirm what can be changed before you order.
Bay Solutions Using This Machine
ASL27M Questions Buyers Ask
What is the lowered height?
The initial height is 110 mm, which is what makes the lift trench-free.
What is the capacity?
2700 kg, equivalent to 6000 lbs.
What happens in a power cut?
The lift and vehicle can be lowered manually when the power supply is off.
How is the hydraulic system specified?
It is assembled with imported electromagnetic valve and seal components to stabilise operation and extend working life.
Is there an audible warning?
Yes, a safety alarm device is fitted for both raising and lowering.
Does it need civil work?
No trench is required. Confirm your slab condition with us and we will advise on placement.
