Battery Removal Lift · Model ABL12
ABL12 1.2T Pneumatic New Energy Lift
1.2T pneumatic table for EV battery work
Product Overview
ABL12 is a 1200 kg scissor table for new energy vehicle lifting work. It runs from a pneumatic hydraulic pump, so it needs shop air rather than a mains connection, and it lifts on a double oil cylinder with manganese plate arms. The platform pulls out to reach under the vehicle.
Key Benefits
What This Machine Changes in the Bay
- 1200 kg / 2600 lbs capacity for new energy vehicle lifting work
- Pneumatic hydraulic pump runs from shop air with no mains connection needed
- Double oil cylinder lifting keeps the platform even under load
- Manganese plate arms carry the load in a compact structure
- Pull-out platform reaches components set back under the vehicle
Application Scenarios
- New energy vehicle battery and underbody component handling
- Workshops without a convenient power outlet at the bay
- EV service work in a shared or temporary bay
- Component removal that needs the platform extended forwards
Who It Is For
- Workshops starting EV and new energy vehicle service
- Service centres with compressed air but limited bay power
- Bodyshops handling new energy vehicles
- Distributors supplying EV workshop equipment
Problems It Solves
What It Stops Costing You
- Mains-powered tables need an outlet where the bay does not have one
- Single cylinder tables tilt under an off-centre component
- Fixed platforms cannot reach components set back under the vehicle
- Standard jacks are not sized for new energy vehicle assemblies
Technical Features
- Capacity 1200 kg / 2600 lbs
- New energy lift scissor structure
- Pneumatic hydraulic pump
- Double oil cylinder lifting
- Manganese plate arm
- Pull-out platform

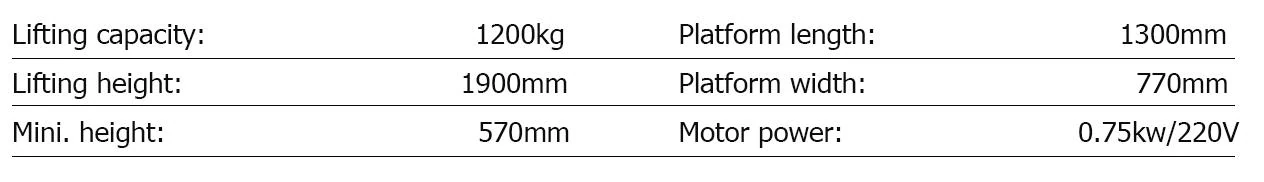

Specifications
Compared With Other Models
- Against the B-15EA: lower capacity, pneumatic pump instead of a wireless electric handle
- Against a standard transmission jack: a platform sized for new energy vehicle assemblies
- Against mains-powered tables: runs from shop air, so bay power is not required
Use Guide
- Follow the vehicle manufacturer's high voltage isolation procedure first
- Connect shop air and check the working pressure
- Extend the pull-out platform to reach the component before taking the weight
- Lower under control and move the assembly clear of the bay
Quality and Support
What Comes With the Machine
Quality Assurance
Every product is supplied with a long warranty assurance.
Expert Guidance
Pre-sales and after-sales teams give professional guidance and aftersales support.
Reliability
Consistent and reliable performance across every product line.
Innovation
An experienced R&D team develops the products the market asks for.
Customization. Machines are built to your local voltage and frequency, and optional equipment is listed on the quotation. Send us your requirement and we will confirm what can be changed before you order.
Bay Solutions Using This Machine
ABL12 Questions Buyers Ask
What is the capacity?
1200 kg, equivalent to 2600 lbs.
Does it need an electrical supply?
No. It uses a pneumatic hydraulic pump, so shop compressed air is enough.
Why two cylinders?
Double oil cylinder lifting keeps the platform even when the load is not centred.
Does the platform extend?
Yes, it is a pull-out platform for reaching components set back under the vehicle.
How does it compare with the B-15EA?
The B-15EA is rated at 1500 kg and uses a wireless electric control handle with an adjustable platform angle.
What air supply is required?
Standard shop compressed air. Send us your compressor rating and we will confirm before you order.
