Scissor Lift · Model ASL08M
ASL08M 0.8T Motorcycle Scissor Lift
0.8T motorcycle lift with optional extensions
Product Overview
ASL08M is an 800 kg motorcycle scissor lift with a hydraulic drive and a concealed four-stage motor and pump station. The platform accepts optional expansion platforms for unusual machines, and the front bracket can be supplied as a universal bracket or a pneumatic clamp.
Key Benefits
What This Machine Changes in the Bay
- 800 kg / 1760 lbs capacity covers touring and large-capacity motorcycles
- Optional expansion platforms suit special motorcycle models
- Universal bracket or pneumatic clamp available for the front wheel
- Concealed four-stage motor and pump station keeps the working area clean
- Shot blasted frame with outdoor-grade electrostatic powder coating
Application Scenarios
- Motorcycle servicing, tyre and brake work
- Custom and touring machines with unusual footprints
- Dealership workshops with customer-visible bays
- Mobile motorcycle service operations
Who It Is For
- Motorcycle dealerships and workshops
- Custom and restoration shops
- Tyre specialists serving motorcycles
- Distributors supplying motorcycle workshop equipment
Problems It Solves
What It Stops Costing You
- Working on a motorcycle at floor level is slow and hard on the technician
- Standard platforms do not fit unusual or custom machines
- Holding the front wheel by hand while working is unsafe
- Exposed pump units collect dirt and get damaged in a busy bay
Technical Features
- Capacity 800 kg / 1760 lbs
- Motorcycle scissor lift with hydraulic drive
- Optional expansion platforms for special motorcycle models
- Optional universal bracket or pneumatic clamp for the front bracket
- Concealed 4-stage motor and hydraulic pump station
- Shot blasting finish with outdoor-grade automatic electrostatic powder coating
- German Bosch Rexroth hydraulic valve parts with Italian oil sealing rings and ball valves

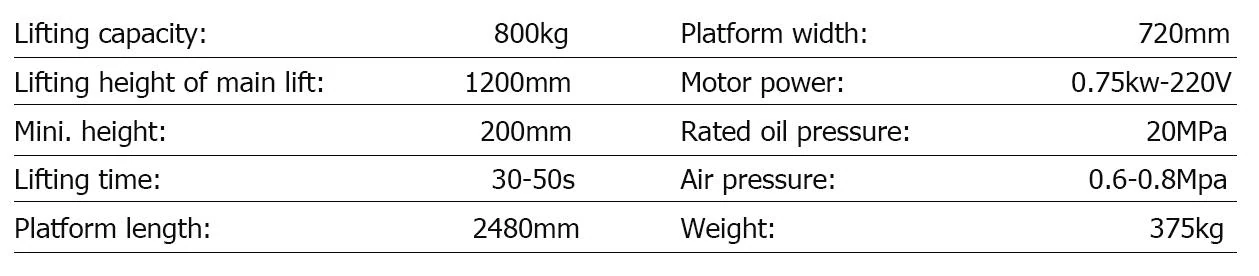

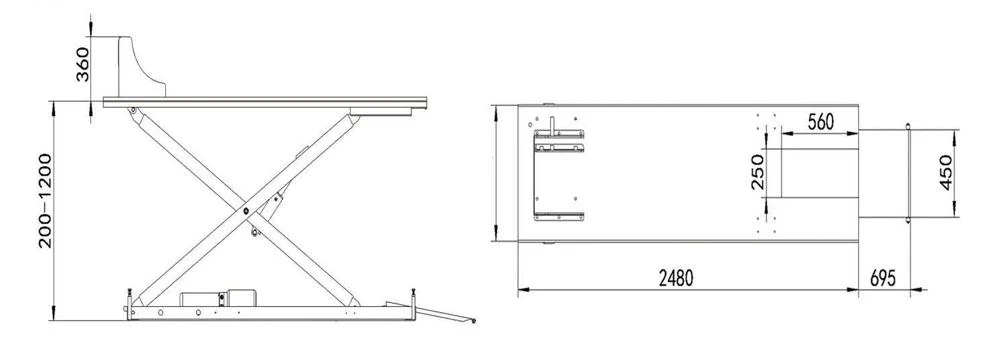

Specifications
Compared With Other Models
- Against a car scissor lift: a platform and clamp arrangement sized for two wheels
- Against a fixed bench: adjustable working height and a front wheel clamp
- Against a basic motorcycle lift: expansion platforms and a choice of front bracket
Use Guide
- Roll the machine on and secure the front wheel in the bracket or pneumatic clamp
- Fit an expansion platform first if the machine needs a wider base
- Raise to working height and confirm the lock before releasing the machine
- Lower under control with the front wheel still clamped
Quality and Support
What Comes With the Machine
Quality Assurance
Every product is supplied with a long warranty assurance.
Expert Guidance
Pre-sales and after-sales teams give professional guidance and aftersales support.
Reliability
Consistent and reliable performance across every product line.
Innovation
An experienced R&D team develops the products the market asks for.
Customization. Machines are built to your local voltage and frequency, and optional equipment is listed on the quotation. Send us your requirement and we will confirm what can be changed before you order.
ASL08M Questions Buyers Ask
What is the capacity?
800 kg, equivalent to 1760 lbs.
Can it handle unusual machines?
Optional expansion platforms are available for various special motorcycle models.
What front bracket options are there?
A universal bracket and a pneumatic clamp are both optional for the front bracket.
Where is the pump unit?
The four-stage motor and hydraulic pump station are concealed within the lift.
Is it suitable for tyre work?
Yes. Tell us your usual machine types and we will confirm the platform and bracket combination.
What is the shipping size?
Crate dimensions and gross weight are confirmed with the quotation.
