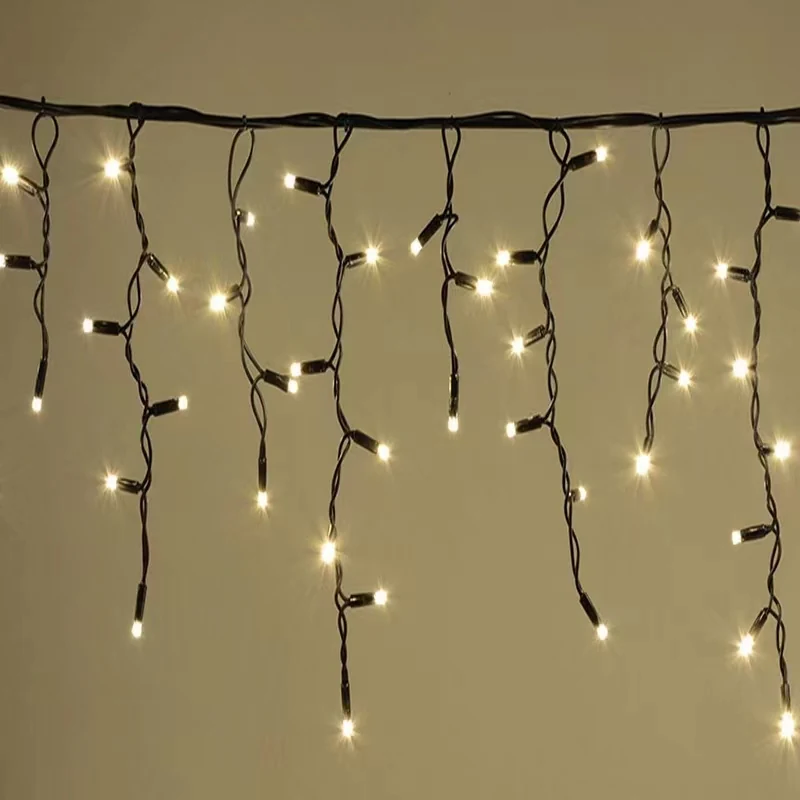

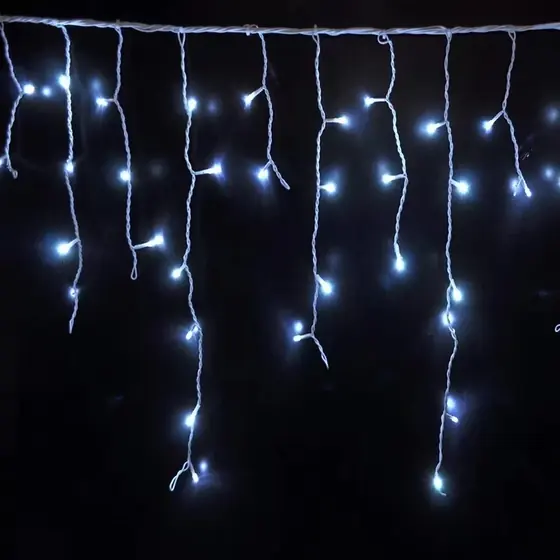

Icicle Light
LED Icicle Light
Roofline drops at mixed lengths so the fringe reads as icicles rather than as a machine-made edge. The mixed drop is deliberate: equal-length drops look artificial, and that single detail is what separates commercial icicle light from a retail product.
- Custom shapes in 20-30 days
- Low MOQ on project work
- OEM and ODM private label
- Samples before bulk order
Key benefits
Why Buyers Choose This Product
Mixed drop lengths for a natural icicle fall
IP65 glued connectors with rubber rings, at the point roofline runs usually fail
Cold-resistant cable that still handles at winter install temperatures
Joinable runs so corners and returns stay tidy
Who It Is For
- Roofline installation contractors
- Hotel and restaurant operators
- Municipal buyers dressing civic buildings
Problems It Solves
- Uniform drops that read as a plastic fringe
- Water tracking into the connector at the lowest point of a drop
- Cable that stiffens and cracks at winter install temperatures
Where It Is Used

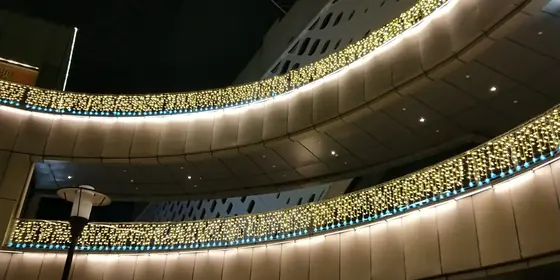

- Building eaves and roofline
- Balcony and canopy edges
- Pergola perimeters
- Shopfront fascia runs
Technical
How It Is Built
Bullet cap with a gluing technique for a bigger, brighter light spot
Welding, gluing and casing done by full-automation machine for a consistent finish
Extendable
one power cord carries up to 200 m
Cold-resistant flexible copper core, so the cable still bends in winter
IP65 joints, glued and sealed with a rubber ring at each connector
3000 sets a day of output, so peak-season volume is covered
| Bulb | Epistar LED bulb |
|---|---|
| Wire | PVC or rubber cable, 0.5 mm2 pure copper core |
| Bulb Spacing | 5 cm to 50 cm to requirement |
| Bulb Colour | Red, green, yellow, blue, white, warm white, pink, purple, multi colour, RGB |
| Wire Colour | Clear, white, green, dark green, blue, pink, black, yellow, purple |
| Ingress Protection | IP65, glued joints with a rubber ring on the connectors |
| Max Run | 200 m from one power cord |
| Options | With or without controller, with or without end plug |
| Standards | Built to CE, RoHS and REACH requirements |
Materials
- 0.5 mm2 pure copper conductor
- Environmentally friendly rubber and PVC cable
- Epistar LED bulbs
- PC bullet caps
Customisation
- Any shape, size, colour and material to your drawing
- Private label OEM and ODM with your brand on product and packaging
- Standard items in 7-9 days, custom work in 20-30 days after sample approval
- Sample orders welcome before a bulk order, and low MOQ on project work
How It Is Made
Copper core cable cut to the ordered length
LED bulbs welded on at the agreed spacing by automatic machine
Bullet caps glued and cased
Connectors fitted with rubber rings and sealed to IP65
Controller and end plug fitted if ordered
Ageing test, coil, label and carton
Quality Control
- Automated weld and glue inspection on the line
- Connector waterproof test
- Continuity and brightness check over the full run length
- Ageing test under current before packing
Certification
- CE EMC Directive 2014/30/EU — certificate HTT202404615E
- CE Low Voltage Directive — certificate HTT202404615L
- RoHS with amending Annex EU 2015/863 — certificate HTT202404615CH
- Covered models: UPL-S01, UPL-S07, UPL-S08, UPL-S10, UPL-S50, UPL-S100
Comparison
How It Compares With The Alternatives
Compared With Curtain light
Icicle drops are short and irregular for an edge; curtains are long and even for an opening.
Compared With Blue meteor tubes
Icicles are static and cheap per metre; meteor tubes move and cost far more. Many schemes use icicles as coverage and tubes as highlights.
Use Guide
- Dress connectors horizontally, never at the bottom of a drop
- Leave slack at corners so the connector is not under tension
- Let a cold coil warm before unrolling to avoid cracking the cable
Related
Other Products In This Range
PVC Tinsel Motif Decoration Material
PVC tinsel is the surface that turns a bare welded frame into a motif that reads as an object in daylight.
View product
PVC Mesh Motif Decoration Material
PVC mesh is the flatter alternative to tinsel for motif surfaces, supplied in 1x3 m, 1x5 m and 1x10 m panels.
View product
Coloured PVC Mesh Fabric Rolls
The same mesh construction supplied as full colour rolls for workshops that cut their own panels.
View product
Tree of Life Fibre Optic Light Sculpture
A tall fountain-form sculpture built from fibre optic strands falling from a central crown, so the light appears to pour downwards.
View productQuestions
LED Icicle Light Questions
Are the drops all the same length?
No, mixed by default, because equal drops look artificial. Tell us if you specifically want a uniform fringe.
Can runs be joined around a corner?
Yes, up to the 200 m per-feed limit. Leave slack at the corner.
What is the most common failure on roofline runs?
A connector left sitting at the lowest point of a drop. Water finds it and the run goes dark.
Request A Quotation For LED Icicle Light
Tell us the size, the quantity and where it is going. Attach a photograph of the position if you have one.
