Curtain Light

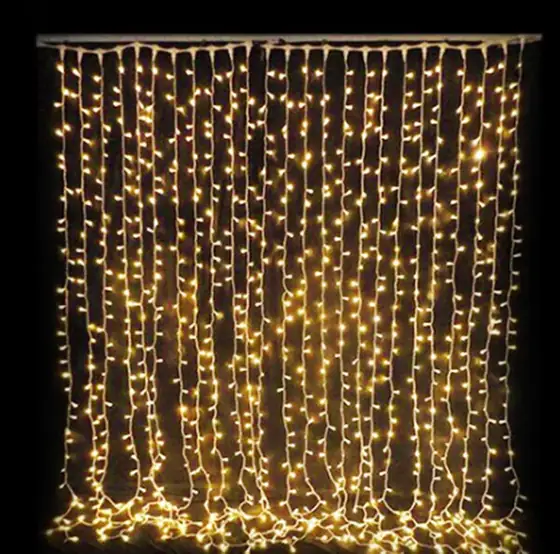

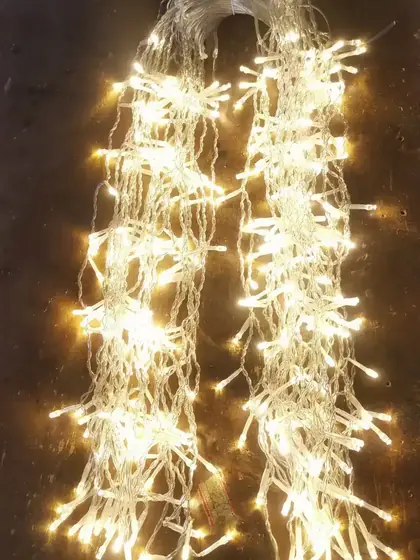

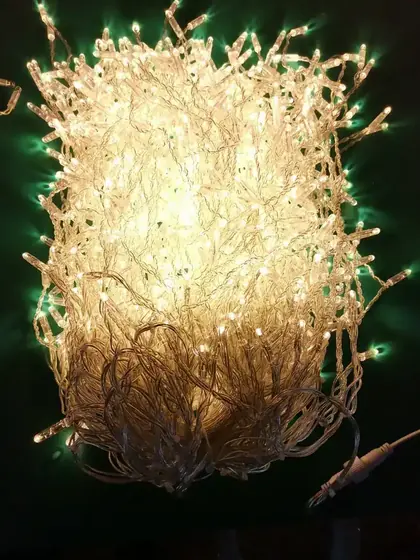

LED Curtain Light
Vertical drops on a common header, made to the opening rather than to a fixed size. Curtain light is the fastest way to fill a tall void, and because the drop profile is made to order it can be cut straight or staggered to suit the architecture.
- Custom shapes in 20-30 days
- Low MOQ on project work
- OEM and ODM private label
- Samples before bulk order
Key benefits
Why Buyers Choose This Product
Drop length and pitch made to the opening rather than to a catalogue size
Straight or staggered profiles available
Epistar bulbs on 0.5 mm2 copper for even brightness down the drop
IP65, so open atriums and outdoor terraces are fine
Who It Is For
- Mall visual merchandising teams
- Stage and event producers
- Hotel and venue operators
Problems It Solves
- Uneven drop lengths that make a curtain look unfinished
- Headers that cannot be fixed to an existing truss or ceiling grid
- Curtains too dim to read against bright interior lighting
- Tangled storage costing a day of install time
Where It Is Used

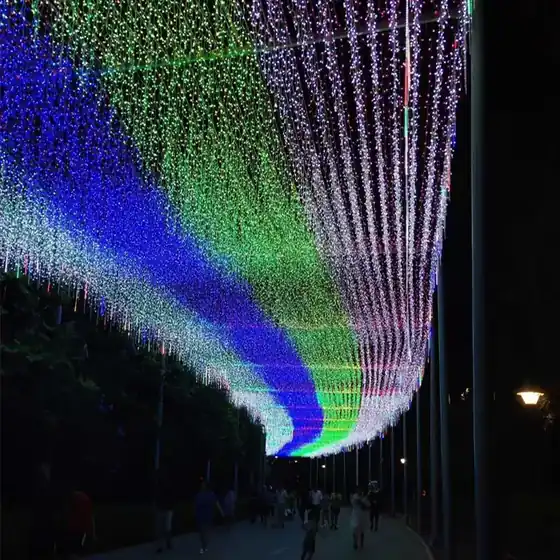

- Mall atrium void curtains
- Stage and ceremony backdrops
- Shop window drops
- Hotel lobby feature walls
Technical
How It Is Built
Bullet cap with a gluing technique for a bigger, brighter light spot
Welding, gluing and casing done by full-automation machine for a consistent finish
Extendable
one power cord carries up to 200 m
Cold-resistant flexible copper core, so the cable still bends in winter
IP65 joints, glued and sealed with a rubber ring at each connector
3000 sets a day of output, so peak-season volume is covered
| Bulb | Epistar LED bulb |
|---|---|
| Wire | PVC or rubber cable, 0.5 mm2 pure copper core |
| Bulb Spacing | 5 cm to 50 cm to requirement |
| Bulb Colour | Red, green, yellow, blue, white, warm white, pink, purple, multi colour, RGB |
| Wire Colour | Clear, white, green, dark green, blue, pink, black, yellow, purple |
| Ingress Protection | IP65, glued joints with a rubber ring on the connectors |
| Max Run | 200 m from one power cord |
| Options | With or without controller, with or without end plug |
| Standards | Built to CE, RoHS and REACH requirements |
Materials
- 0.5 mm2 pure copper conductor
- Environmentally friendly rubber and PVC cable
- Epistar LED bulbs
- PC bullet caps
Customisation
- Any shape, size, colour and material to your drawing
- Private label OEM and ODM with your brand on product and packaging
- Standard items in 7-9 days, custom work in 20-30 days after sample approval
- Sample orders welcome before a bulk order, and low MOQ on project work
How It Is Made
Copper core cable cut to the ordered length
LED bulbs welded on at the agreed spacing by automatic machine
Bullet caps glued and cased
Connectors fitted with rubber rings and sealed to IP65
Controller and end plug fitted if ordered
Ageing test, coil, label and carton
Quality Control
- Automated weld and glue inspection on the line
- Connector waterproof test
- Continuity and brightness check over the full run length
- Ageing test under current before packing
Certification
- CE EMC Directive 2014/30/EU — certificate HTT202404615E
- CE Low Voltage Directive — certificate HTT202404615L
- RoHS with amending Annex EU 2015/863 — certificate HTT202404615CH
- Covered models: UPL-S01, UPL-S07, UPL-S08, UPL-S10, UPL-S50, UPL-S100
Comparison
How It Compares With The Alternatives
Compared With DMX pixel curtain
A standard curtain is a light field at a fraction of the cost; the pixel version displays content.
Compared With Icicle light
Curtains are long even drops for openings; icicles are short irregular drops for edges.
Use Guide
- Give us the opening dimensions and the fixing type before ordering
- Choose tight pitch for bright interiors, because pitch matters more than bulb count
- Roll on the header for storage rather than folding at the same point
Related
Other Products In This Range
PVC Tinsel Motif Decoration Material
PVC tinsel is the surface that turns a bare welded frame into a motif that reads as an object in daylight.
View product
PVC Mesh Motif Decoration Material
PVC mesh is the flatter alternative to tinsel for motif surfaces, supplied in 1x3 m, 1x5 m and 1x10 m panels.
View product
Coloured PVC Mesh Fabric Rolls
The same mesh construction supplied as full colour rolls for workshops that cut their own panels.
View product
Tree of Life Fibre Optic Light Sculpture
A tall fountain-form sculpture built from fibre optic strands falling from a central crown, so the light appears to pour downwards.
View productQuestions
LED Curtain Light Questions
Can drop lengths be staggered?
Yes. Give us the opening dimensions and the profile you want, straight or staggered, and the harness is made to that layout.
How do we fix the header?
Tell us what you are fixing to — truss, ceiling grid, catenary or timber — and we supply matching fixing points.
Will it be bright enough under mall lighting?
Choose warm white or white at tight pitch. In a bright atrium pitch matters more than bulb count.
Request A Quotation For LED Curtain Light
Tell us the size, the quantity and where it is going. Attach a photograph of the position if you have one.
