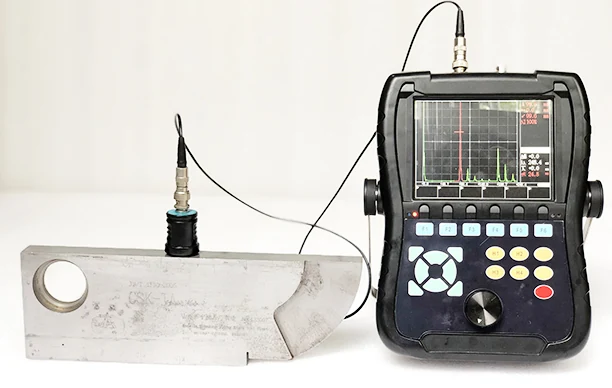

Portable Ultrasonic Flaw Detector For Industrial Nondestructive Testing

The portable ultrasonic flaw detector is a nondestructive testing instrument designed for rapid, accurate detection, location, evaluation, and diagnosis of internal defects in metal components. It operates without damaging the workpiece and is suitable for use in both laboratory environments and field applications. The instrument detects a range of defects including cracks, inclusions, folds, pores, and sand holes by analyzing ultrasonic wave reflections at heterogeneous interfaces.

How It Works: Ultrasonic Wave Reflection And Defect Detection

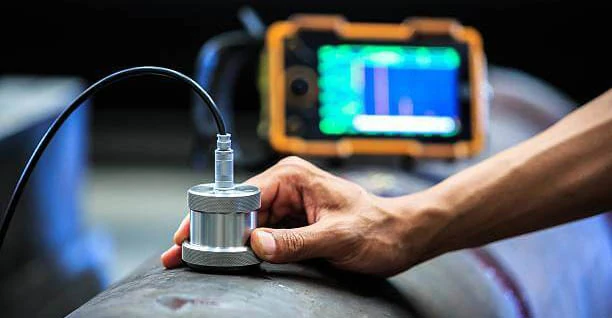

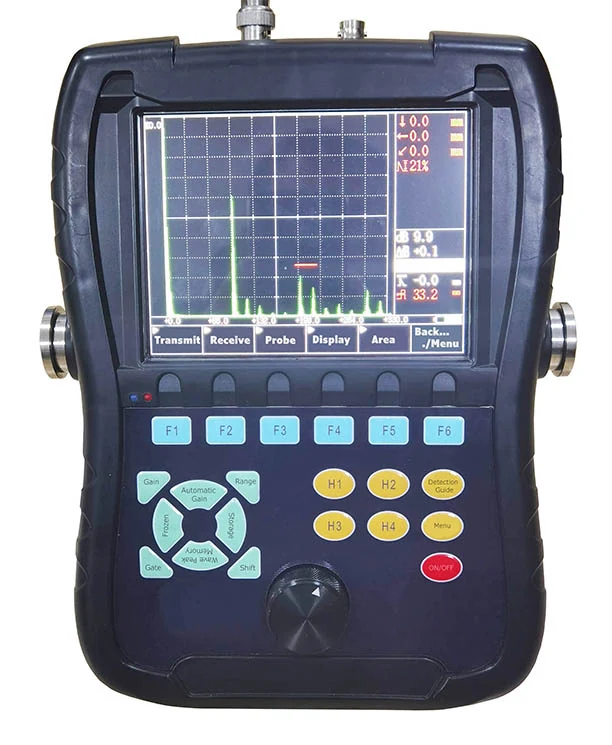

Ultrasonic waves travel through solid materials with minimal transmission loss and exhibit strong directivity, propagating in straight lines. When the waves encounter a defect such as a crack or pore—where gas is present—the wave reflects or refracts at the interface. The probe receives the reflected signal, which is processed internally and displayed as waveforms on the instrument's screen. The depth, size, and type of defect are determined by analyzing the amplitude, spacing, and variation of these waveforms.

Key Advantages For Field And Factory Use

The instrument offers large detection thickness, high sensitivity, fast inspection speed, low operational cost, and no harm to human health. Ultrasonic waves have greater energy than audible sound waves and maintain low attenuation in solids, enabling deep penetration and reliable detection in thick-section materials. These characteristics make the device effective for quality control, in-service safety inspections, and rail transportation maintenance.

Limitations And Operational Considerations

The detection results are not visually intuitive and require trained personnel to interpret waveforms correctly. The method is sensitive to operator skill and can be affected by subjective judgment. Proper setup, calibration, and probe positioning are essential to ensure accurate defect identification and avoid false readings.
