Rail Flaw Detection Vehicle

Rail Flaw Detection Vehicle Overview

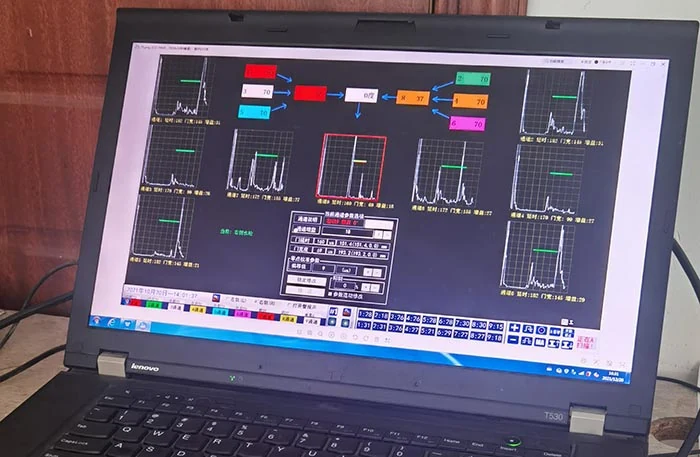

The rail flaw detection vehicle is a specialized inspection platform equipped with ultrasonic testing systems to identify internal rail defects such as transverse cracks in the rail head, fatigue damage, and weld imperfections. It operates at speeds between 10 and 50 km/h, using ultrasonic waves to detect flaws in the rail head, waist, and joint areas. The system records damage signals, mileage data, and track features like bridges, tunnels, and sleeper types on a continuous medium for later analysis. This enables precise location of defects and tracking of defect progression over time.

Key Technical Features

Uses ultrasonic wave technology to detect transverse cracks, fatigue defects, rail waist cracks, weld curves, rail head crushing, wavy wear, rail bottom corrosion, and crescent-shaped spalling. Equipped with automatic recording instruments that capture damage signals, mileage, and track characteristics on a single continuous record. Supports analysis of defect size, position, and development rate through repeated inspections. Detection sensitivity for core damage is 50 mm², and for rail waist cracks, equivalent to a 3 mm diameter hole. Positional accuracy is within ±10 cm.

Detection Capabilities and Limitations

Can detect transverse cracks in the rail head, fatigue damage near the rail head and waist, weld imperfections, rail head crushing, wavy wear, rail bottom corrosion, and crescent falling. Cannot detect rail waist damage or joint defects using electromagnetic methods. Electromagnetic detection has limited sensitivity (20%–25% of rail head cross-section) and cannot detect core damage effectively. Ultrasonic detection is preferred for comprehensive flaw identification and accurate defect location.

Operational Scenarios

Used for scheduled inspections of mainline tracks, periodic checks on private and industrial railways, inspection during short possession windows at ports and mines, night maintenance operations in urban metro systems, and follow-up verification after rail grinding or replacement. Ideal for environments where high detection accuracy and data traceability are required.

Who This Is For

Railway bureaus managing their own inspection teams, metro operators conducting inspections during limited night windows, rail maintenance contractors covering multiple lines with one crew, and port and mine operators maintaining heavy haul industrial tracks. Suitable for organizations requiring reliable, repeatable, and data-backed rail inspection results.

Problems Solved

Transverse cracks in the rail head are invisible to visual inspection and can cause derailments. Electromagnetic detection methods lack sensitivity and cannot detect core damage. Manual walking inspections are slow and subjective. Single-pass inspection of both rails reduces inspection time and crew workload. Continuous data recording allows for post-inspection review and defect trend analysis.
