Solution
OEM and ODM Case Development
From a reference photo to a tooled chassis in your own carton
Most buyers do not want a new chassis from a blank sheet. They want an existing shell with their own front panel, their own I/O layout and their own box. Because die and mould work runs inside the group, that change is a tooling item rather than a separate project with a separate supplier.
Process
Eight Stages From Enquiry to Container
Each stage exists because something specific goes wrong without it.
- Step 01
Requirement
We start from the closest model already in the catalogue and scope only the parts that actually have to change.
- Step 02
Design
Changes are separated into bezel tooling, sheet metal tooling and printing so you can see what each one costs.
- Step 03
Prototyping
A tooled sample is produced and shipped for physical approval before bulk steel is cut.
- Step 04
Material selection
The grade used in the sample is recorded on the sample sheet and held for production.
- Step 05
Production
Production runs against the approved sample with colour checked at the line.
- Step 06
Quality control
QC officers inspect at the line, and the About page certificate evidence covers the certified product lines.
- Step 07
Packing
Colour box, insert and manual are printed and packed with the chassis on the same packing list.
- Step 08
Logistics
Carton dimensions are fixed at sample stage so container loading can be planned accurately.
Stage by Stage
The Problem Each Stage Exists to Solve
| Requirement | Problem. A generic chassis cannot carry your brand, but a full ground-up design is not justified by the volume. How we handle it. We start from the closest model already in the catalogue and scope only the parts that actually have to change. |
|---|---|
| Design | Problem. Front panel, I/O cut-out and logo placement each affect a different tool. How we handle it. Changes are separated into bezel tooling, sheet metal tooling and printing so you can see what each one costs. |
| Prototyping | Problem. An approval decision made on a render is a decision made on nothing. How we handle it. A tooled sample is produced and shipped for physical approval before bulk steel is cut. |
| Material selection | Problem. Steel grade and panel material are where cost quietly gets cut after the sample. How we handle it. The grade used in the sample is recorded on the sample sheet and held for production. |
| Production | Problem. Colour and finish drift between runs damages a brand programme. How we handle it. Production runs against the approved sample with colour checked at the line. |
| Quality control | Problem. Defects found by your customer cost far more than defects found in the plant. How we handle it. QC officers inspect at the line, and the About page certificate evidence covers the certified product lines. |
| Packing | Problem. Branded packaging ordered separately is the item that slips the ship date. How we handle it. Colour box, insert and manual are printed and packed with the chassis on the same packing list. |
| Logistics | Problem. Carton size decides freight cost more than unit weight does. How we handle it. Carton dimensions are fixed at sample stage so container loading can be planned accurately. |
Product Ranges
What This Programme Covers
Models
Typical Starting Points
Gaming Cases
Model U02 Tempered Glass ATX Gaming Case
- Motherboard SupportATX, M-ATX, ITX
- Max GPU Length430mm G.W / N.W 8.3kg / 7.1kg Q’ty in 40HQ 800Pcs
- Case SizeL434*W245*H473mm (with panel &feet)
Gaming Cases

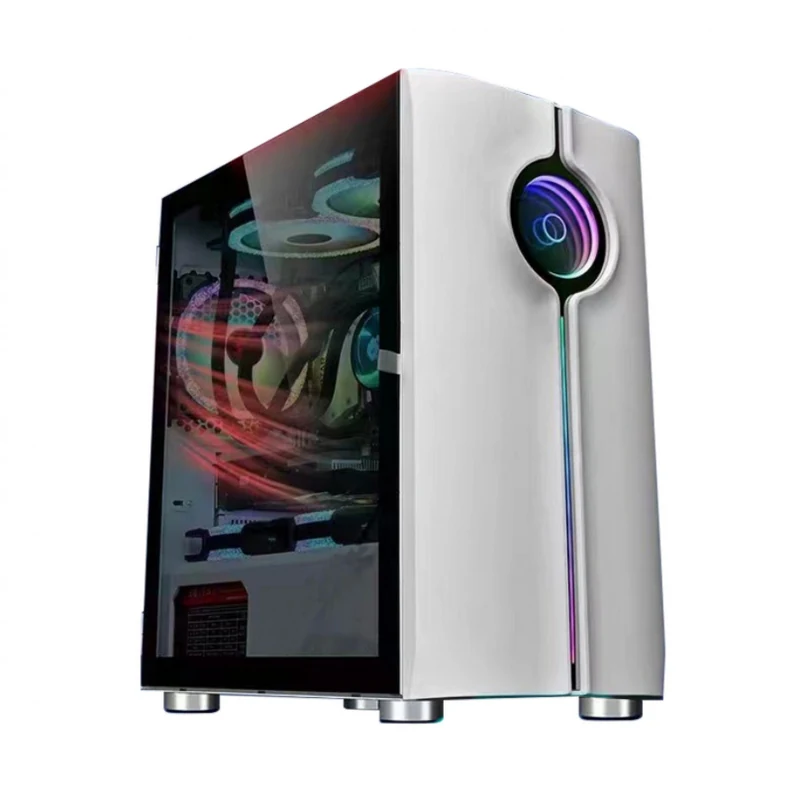

Model 8508 Tempered Glass Micro ATX Gaming Case
- Motherboard SupportE-ATX, ATX, M-ATX, ITX
- Max GPU Length330mm
- Case SizeL365*W210*H422mm (with feet)
Special Shaped Cases
Model 1617 Micro ATX Special Shaped Gaming Case
- Motherboard SupportM-ATX
- Max GPU Length325mm
- Case SizeL450*W315*H350mm
Special Shaped Cases
Model 1613 ATX Special Shaped Gaming Case
- Motherboard SupportATX, M-ATX
- Max GPU Length320mm
- Case SizeL520*W225*H495mm
Special Shaped Cases

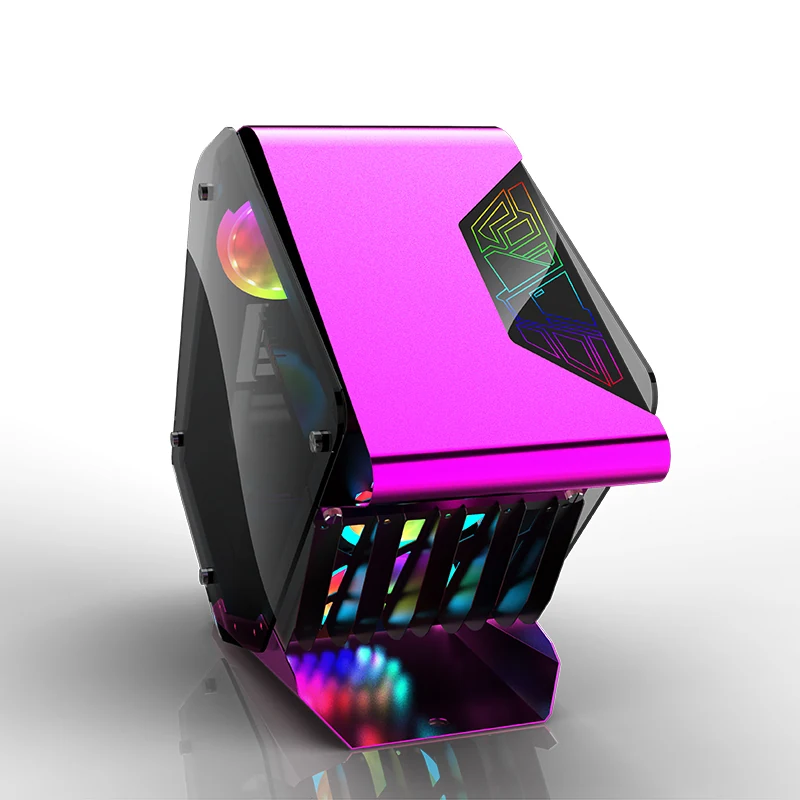

Model 1612 Micro ATX Special Shaped Gaming Case
- Motherboard SupportM-ATX
- Max GPU Length310mm
- Case SizeL580*W225*H450mm
Entry Level ATX Cases
Model 1800 Tempered Glass Entry Level ATX Case
- Motherboard SupportATX, M-ATX, ITX
- Max GPU Length310mm
- Case SizeL410*W180*H420mm (with feet)
Entry Level ATX Cases
Model 3128 Tempered Glass Entry Level ATX Case
- Motherboard SupportATX, M-ATX, ITX
- Max GPU Length310mm
- Case SizeL375*W175*H408mm (with feet)
Related Guides
Background Reading
ATX vs Micro ATX vs Slim Case Form Factors Explained for Buyers
How chassis form factor decides board fit, card clearance, carton volume and freight cost, with the clearance figures pu
SPCC vs SGCC Steel and Why Chassis Gauge Matters to Your Cost Sheet
What the steel grade and thickness on a chassis specification mean in practice, and why a tenth of a millimetre changes
Tempered Glass vs Mesh Front Panels for Gaming Chassis Programmes
The trade-off between a glass front that sells on a shelf and a mesh front that moves air, and how packing and breakage
OEM and ODM Case Development Questions
How does a oem and odm case development project start?
With a written brief rather than a form. Send the model numbers, quantities, destination and any artwork or drawing over WhatsApp or e-mail and we will respond with the first stage of the plan set out on this page.
Who do we deal with during the project?
The same sales engineer from quotation through to shipment, so the specification recorded at sample stage is held by the person managing the production.
What is confirmed in writing?
Steel grade and thickness, panel materials, colour reference, packing method, carton dimensions and gross weight. Those are the items that drift if they are not recorded.
Start a OEM and ODM Case Development Project
Send the model numbers, quantities, destination and any artwork or drawing. You will get the first stage back in writing, not a form acknowledgement.
