1U 2U Flex Power Supplies
TFX 200W 230W 250W Power Supply for 1U and 2U Chassis
- Rated Power250W
- Output Rails+12V +5V +3.3V -12V +5VSB
- Dimensions150x86x140mm (WxHxL), 8cm Fan 150x86x140mm (WxHxL), 12cm Fan
Industry
Industrial and Embedded Builders
Flex and TFX power inside 1U, 2U and slim enclosures
Pain Points
What Goes Wrong in This Segment
- A standard ATX supply simply will not fit a 1U or 2U chassis
- Slim desktop builds are boxed in by cooler height and card length
- All-in-one alternatives cannot be serviced in the field
- Rail budgets are tight once an add-in card is fitted
Customer Needs
What Buyers Here Actually Ask For
- Flex ATX and TFX form factors with a published mechanical envelope
- Slim chassis with stated cooler and card clearance
- Standard field-replaceable components rather than proprietary parts
- Per-rail load data for engineering sign-off
Suitable Ranges
Product Ranges That Fit This Segment
1U 2U Flex Power Supplies
2 models · Flex ATX and TFX form factor supplies from 200W to 250W for 1U, 2U and slim chassis.
Slim Cases
4 models · Horizontal and slim-profile desktop shells around 103 to 105 mm wide for low-profile build
Micro ATX Cases
13 models · Compact M-ATX and ITX towers for small-footprint office, retail POS and thin-client deskto
Power Supplies
7 models · ATX, Micro ATX, Flex and TFX switching power supplies from 200W up to 1000W, including 80
Recommended Models
A Starting Shortlist
These are the models buyers in this segment most often start from. Every one of them publishes its clearance figures and carton data.
1U 2U Flex Power Supplies
Flex ATX 200W 230W 250W Power Supply for 1U and 2U Chassis
- Rated Power250W
- Output Rails+12V +5V +3.3V -12V +5VSB
- Dimensions150x86x140mm (WxHxL), 8cm Fan 150x86x140mm (WxHxL), 12cm Fan
Slim Cases
Model U03D All Metal Slim Desktop Case
- Max GPU Length260mm
- Case SizeL420*W105*H340mm (with feet)
Slim Cases
Model U03E All Metal Slim Desktop Case
- Max GPU Length260mm
- Case SizeL420*W105*H340mm (with feet)
Slim Cases

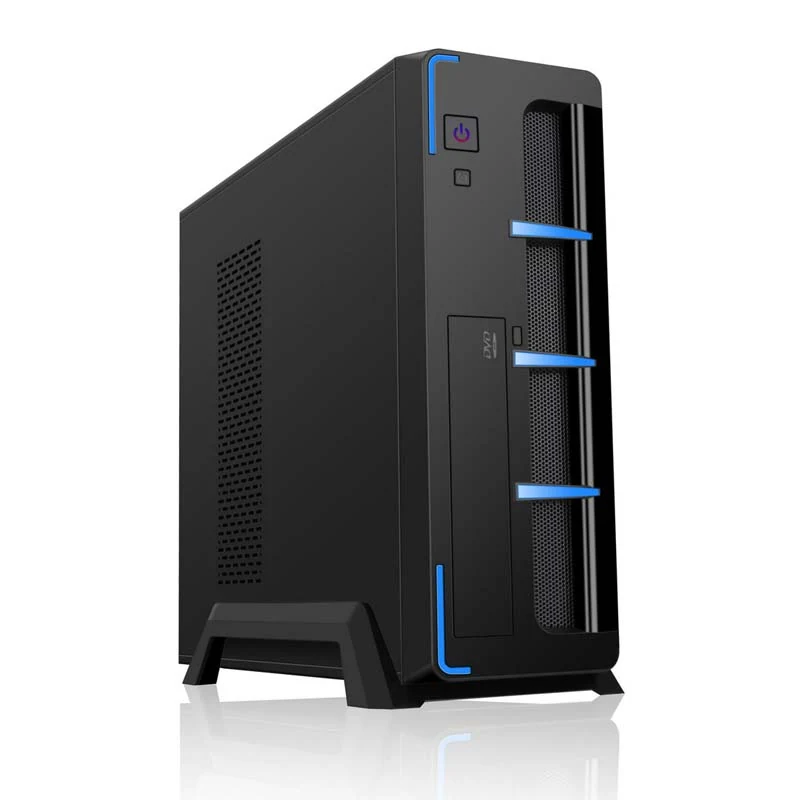

Model U03B All Metal Slim Desktop Case
- Max GPU Length260mm
- Case SizeL420*W105*H340mm (with feet)
Micro ATX Cases
Model 359 All Metal Micro ATX Case
- Motherboard SupportM-ATX, ITX
- Max GPU Length185mm
- Case SizeL355*W175*H365mm
Micro ATX Cases
Model 358 All Metal Micro ATX Case
- Motherboard SupportM-ATX, ITX
- Max GPU Length185mm
- Case SizeL355*W175*H365mm
Micro ATX Cases

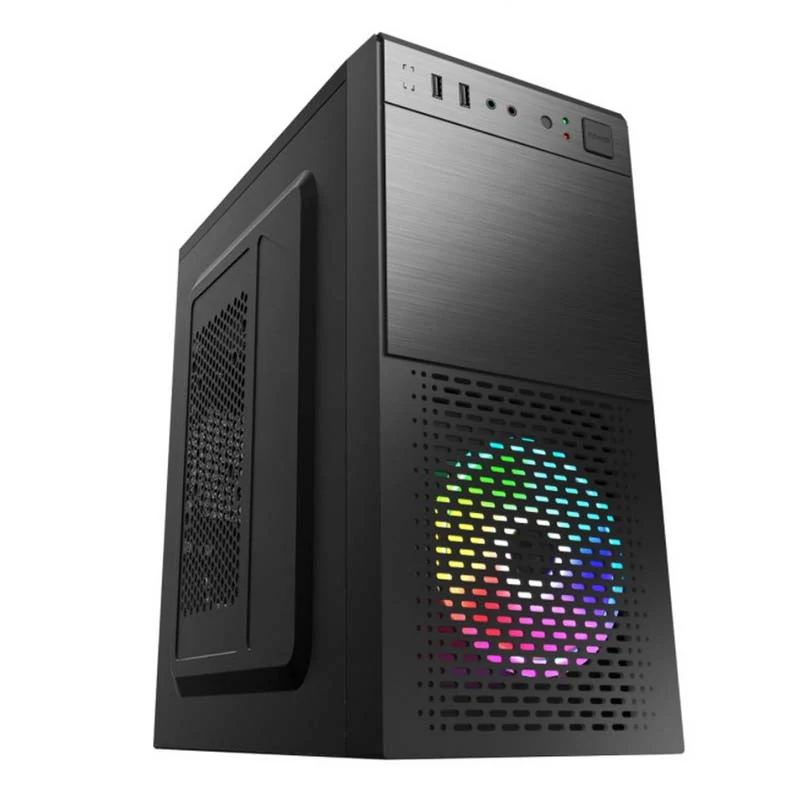

Model 357 All Metal Micro ATX Case
- Motherboard SupportM-ATX, ITX
- Max GPU Length185mm
- Case SizeL355*W175*H365mm
Typical Scenarios
Where These Machines End Up
1U and 2U rack chassis in a control cabinet
Slim horizontal desktop under a monitor or behind a display
Retail POS and kiosk machines serviced on site
Thin-client and signage players in a fixed installation
How We Work
The Delivery Process for This Segment
Four stages, each one there to remove a specific failure mode listed above.
- Step 01
Envelope check
The chassis bay and the supply envelope are compared dimensionally before anything is quoted.
- Step 02
Rail budget
Board, storage and add-in card loads are totalled against the published per-rail maximum.
- Step 03
Sample fit
A physical fit sample is supplied where the installation is tight.
- Step 04
Repeat supply
The confirmed pairing is held as a standing specification for repeat orders.
Related Guides
Background Reading for This Segment
ATX vs Micro ATX vs Slim Case Form Factors Explained for Buyers
How chassis form factor decides board fit, card clearance, carton volume and freight cost, with the clearance figures pu
How to Read a Computer Power Supply Datasheet Before You Buy in Bulk
Rated versus peak wattage, per-rail load limits, ripple and regulation figures, and the questions that separate a real d
SPCC vs SGCC Steel and Why Chassis Gauge Matters to Your Cost Sheet
What the steel grade and thickness on a chassis specification mean in practice, and why a tenth of a millimetre changes
Industrial and Embedded Builders Questions
Do you work with industrial and embedded builders directly?
Yes. Flex and TFX power inside 1U, 2U and slim enclosures. Send us the specification you are working to and we will come back with the models that match it.
What information do you need to quote?
Model numbers or a description of what you need, target quantity, destination port and whether any branding or tooling change is involved. That is enough for a first written quotation.
Can you hold a specification for repeat orders?
Yes. Steel grade, packing method and carton data are recorded at sample approval and referenced on later purchase orders so the specification does not drift.
Send Us the Specification You Are Working To
Tell us the build standard, the quantity and the destination and we will come back with the models that match, the price and the container plan.
