Model 8510 Tempered Glass Micro ATX Gaming Case

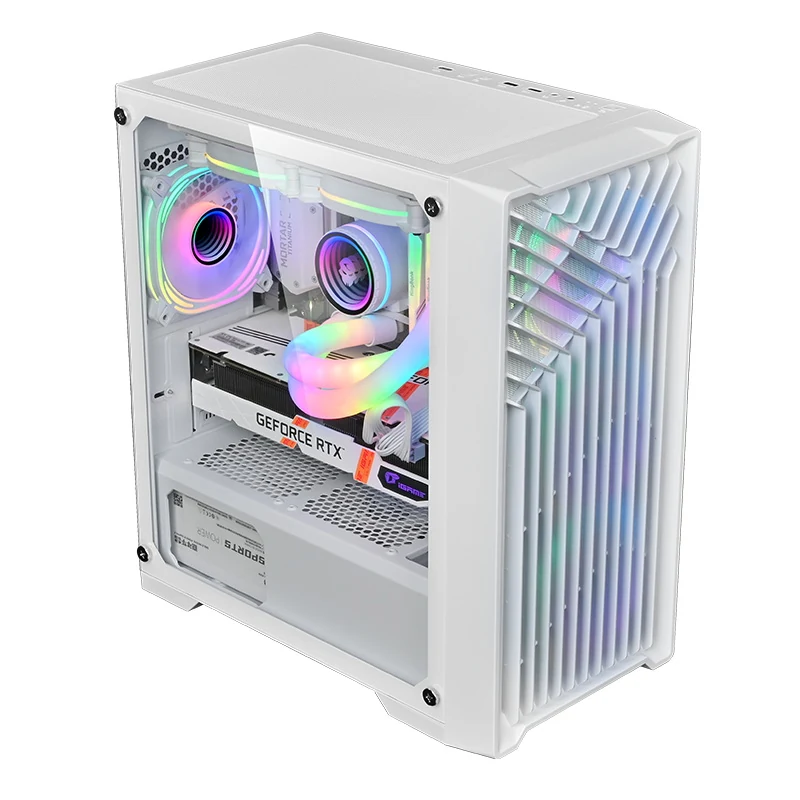

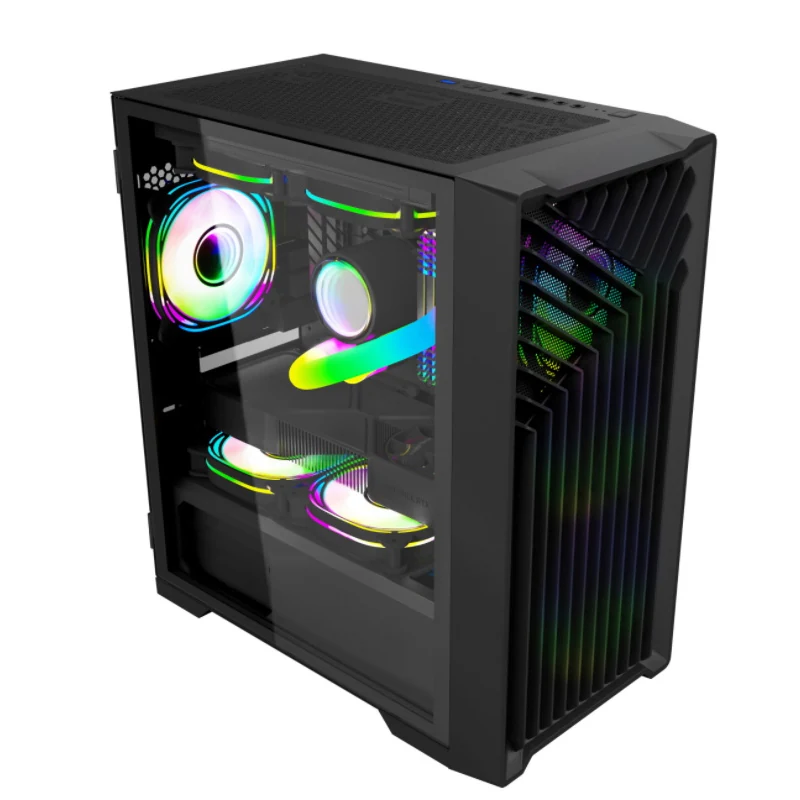

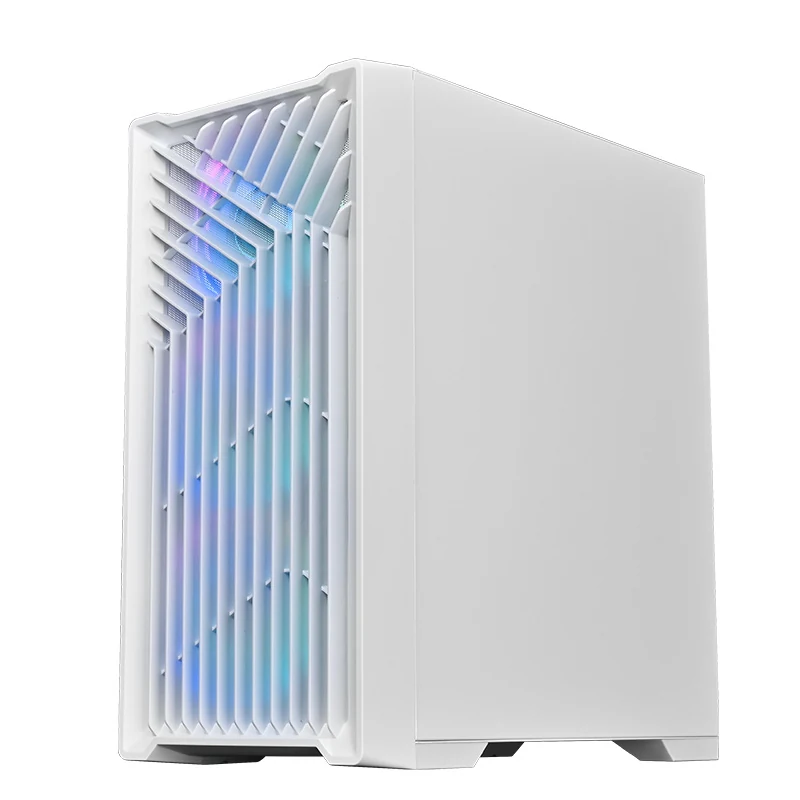

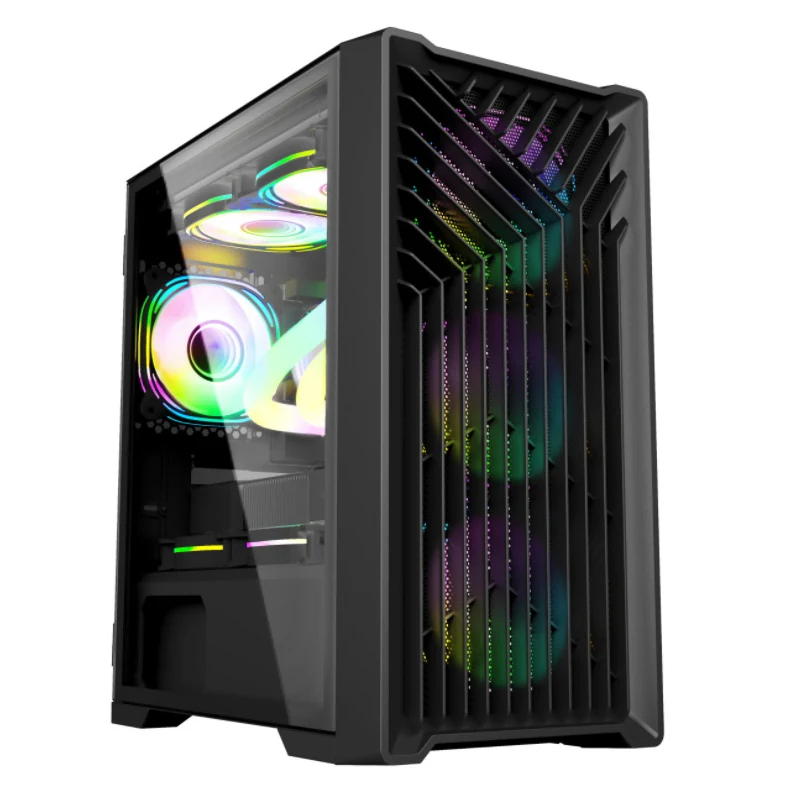

Model 8510 Tempered Glass Micro ATX Gaming Case is a gaming tower case built on a 0.5mm SPCC black coating chassis with an ABS front panel and a tempered glass window on one side and a steel panel opposite.
- Motherboard SupportE-ATX, ATX, M-ATX, ITX
- Max GPU Length330mm
- Max CPU Cooler Height160mm
- Case SizeL365*W210*H422mm (with feet)
Product Overview
What This Model Is and What It Takes
Model 8510 Tempered Glass Micro ATX Gaming Case is a gaming tower case built on a 0.5mm SPCC black coating chassis with an ABS front panel and a tempered glass window on one side and a steel panel opposite. The assembled case measures L365*W210*H422mm (with feet), each unit ships in a L485*W285*H442mm carton, at 5.0Kg & 4.2Kg gross and net. The chassis takes boards in E-ATX, ATX, M-ATX, ITX format, graphics cards up to 330mm, CPU coolers up to 160mm and power supplies up to 140mm.
Technical Features
- Motherboard support: E-ATX, ATX, M-ATX, ITX
- Power supply form factor: Standard ATX
- Front I/O: 2*USB2.0+1*3.0USB, HD Audio
- Expansion slots: 7pcs

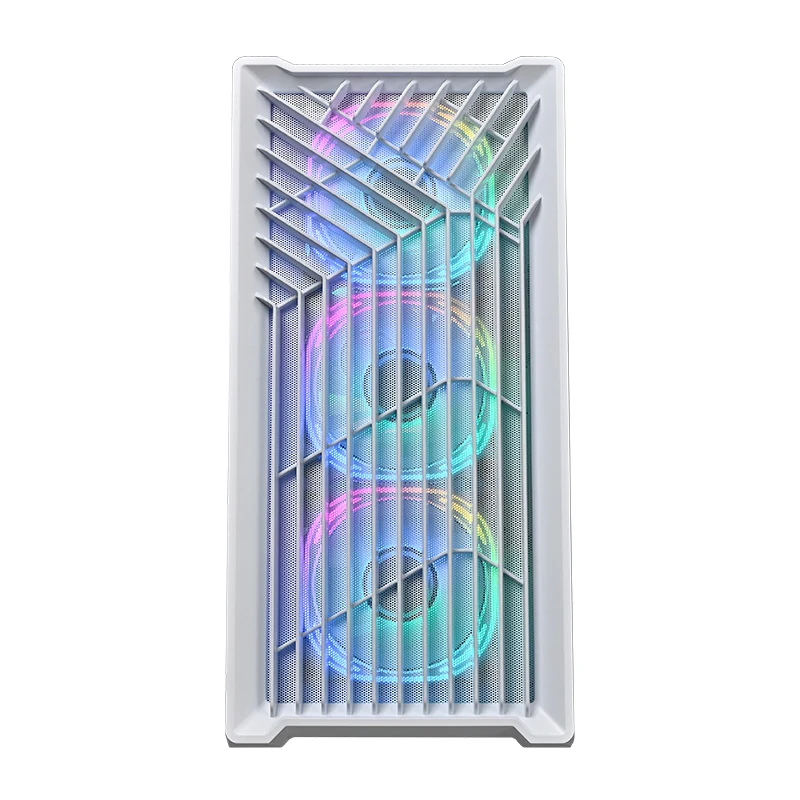

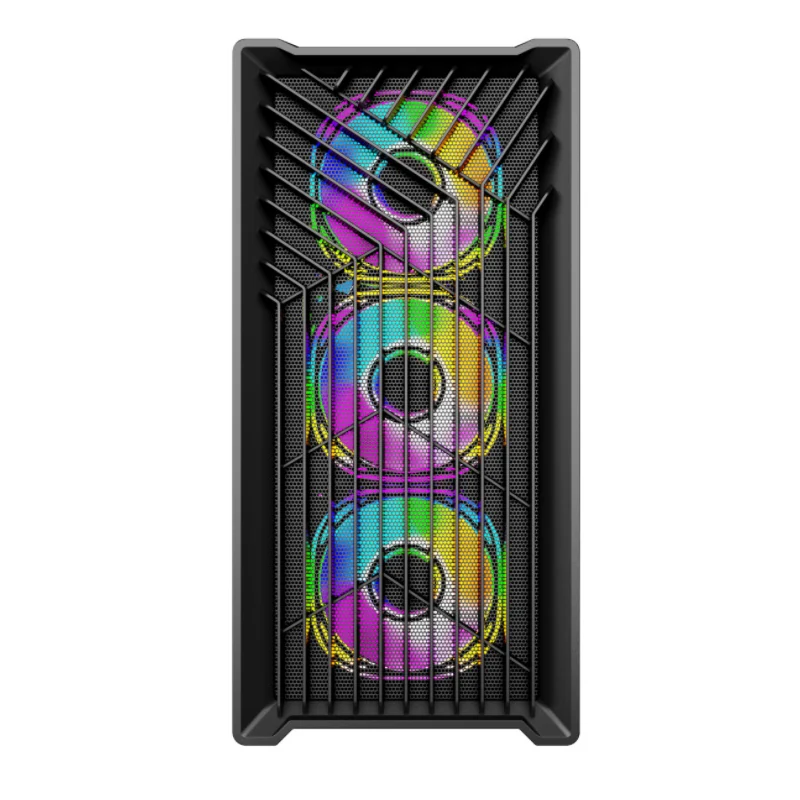

- Fan support: Front: 3*12cm or 2*14mm, Rear:1*12cm, Top: 3*12cm or 2*14mm , bottom:2*12cm
- Airflow design: Air channels(front , side, rear)
Key Benefits
The Figures That Decide Whether This Model Fits Your Build
- Graphics card clearance is published at 330mm, so the card on your build list is confirmed before the purchase order
- CPU cooler height clearance of 160mm is stated rather than left to be discovered on the assembly line
- Panel steel is specified as 0.5mm SPCC black coating, which is the figure held from sample through to bulk production
- The front panel carries 2*USB2.0+1*3.0USB, HD Audio, so the motherboard header set can be matched in advance
- Fan mounting is laid out as Front: 3*12cm or 2*14mm, Rear:1*12cm, Top: 3*12cm or 2*14mm , bottom:2*12cm, giving a defined airflow plan instead of a generic claim
- Carton size L485*W285*H442mm at 5.0Kg & 4.2Kg lets you calculate container loading and freight cost directly
Who It Is For
Buyers This Model Is Specified By
- Repair and upgrade shops replacing damaged or obsolete chassis
- Desktop system integrators building to a fixed bill of materials
- PC brands that need an OEM chassis without funding a full tooling programme
- Distributors stocking barebone chassis for local assemblers
- A retail SKU that looks identical to every competitor on the same shelf
- Chassis arriving with a different steel gauge than the sample, so the panels flex on the shelf
- Graphics cards that do not fit because the supplier never published a clearance figure
- Carton dimensions changing between orders and wrecking a container loading plan
Application Scenarios
Where This Model Is Used
CKD shipments assembled locally to reduce freight volume
Office desktop fleets built to a standard board and drive configuration
Esports and gaming cafe machines running long daily hours
Education laboratory desktops that get moved and re-cabled often
Specifications
Full Factory Specification Table
Reproduced from the factory specification sheet for this model. Figures the factory does not publish are left out rather than estimated.
| Motherboard Support | E-ATX, ATX, M-ATX, ITX |
|---|---|
| PSU Form Factor | Standard ATX |
| Structure Size | L335*W210*H407mm |
| Case Size | L365*W210*H422mm (with feet) |
| Carton Size | L485*W285*H442mm |
| Gross / Net Weight | 5.0Kg & 4.2Kg |
| Front Panel Material | ABS |
| Steel Thickness and Grade | 0.5mm SPCC black coating |
| Side Panel Material | tempered glass panel & metal panel |
| Packing | A=A & Foam |
| Front I/O Ports | 2*USB2.0+1*3.0USB, HD Audio |
| Expansion Slots | 7pcs |
| 5.25 inch Bays | 0 |
| 3.5 inch Bays | 2 |
| 2.5 inch Bays | 1 |
| Fan Support | Front: 3*12cm or 2*14mm, Rear:1*12cm, Top: 3*12cm or 2*14mm , bottom:2*12cm |
| Airflow Design | Air channels(front , side, rear) |
| Max CPU Cooler Height | 160mm |
| Max PSU Length | 140mm |
| Max GPU Length | 330mm |
Materials
- Front panel: ABS
- Chassis steel: 0.5mm SPCC black coating
- Side panels: tempered glass panel & metal panel
Certifications
- CE EMC certificate held for the computer case line
- CE LVD certificate held for the computer case line
- Produced in ISO 9001:2000 and ISO 14001:2004 certified joint venture plants
Manufacturing Process
How This Model Is Made
- Step 01
Steel coil cut to size and stamped on ...
Steel coil cut to size and stamped on the press line
- Step 02
Chassis panels formed, punched and spo...
Chassis panels formed, punched and spot welded
- Step 03
Surface coating applied to the specifi...
Surface coating applied to the specified finish
- Step 04
Front panel and plastic parts moulded ...
Front panel and plastic parts moulded and trimmed
- Step 05
Chassis assembled, fitted out and func...
Chassis assembled, fitted out and function checked
- Step 06
Packed as A=A & Foam into a L485*W285*...
Packed as A=A & Foam into a L485*W285*H442mm carton
Quality Control
What Is Checked and When
- Incoming steel and plastic checked against the recorded grade before production
- In-process checks on stamping, welding and surface finish at the line
- Assembled unit function checked before packing
- Packed carton verified against the recorded packing specification and carton size
- QC officers carry out inspection before shipment as stated by the factory
Customisation Options
What Can Be Changed on This Model
- Front bezel and I/O cut-out changes handled as an in-house tooling item
- Chassis and panel colour changed against an approved sample
- Logo printing on the bezel and on the colour box
- Packing changed between assembled and barebone CKD where the design allows
- Fan and lighting configuration specified at order stage
Comparison
How This Compares With the Alternatives
| A chassis bought without published clearance figures | This model states 330mm of card clearance and 160mm of cooler clearance, so the build list is confirmed before the order rather than on the assembly line. |
|---|---|
| A generic import with no stated steel grade | Panel steel is named as 0.5mm SPCC black coating and recorded on the sample sheet, which is what stops the gauge drifting on the repeat order. |
| An all-in-one or proprietary enclosure | Standard ATX-family components stay field replaceable, so servicing does not depend on one supplier's spare parts. |
Use Guide
Checks to Run Before You Place the Order
- Check your graphics card length against the published 330mm, measuring from the mounting bracket to the far end of the shroud
- Check the assembled height of your CPU cooler against 160mm including the fan clip
- Confirm the power supply fits within 140mm and leave room for the cable exit behind it
- Match your motherboard header set to the front panel ports: 2*USB2.0+1*3.0USB, HD Audio
- Plan the fan population from the supported positions: Front: 3*12cm or 2*14mm, Rear:1*12cm, Top: 3*12cm or 2*14mm , bottom:2*12cm
- Use the carton figure L485*W285*H442mm at 5.0Kg & 4.2Kg for your container load plan
Model 8510 Tempered Glass Micro ATX Gaming Case Questions
What is the maximum graphics card length in Model 8510 Tempered Glass Micro ATX Gaming Case?
The published clearance is 330mm. Measure your card from the bracket to the end of the shroud, including any power connector that exits the end rather than the top.
Will a tower air cooler fit?
Cooler height clearance is 160mm. Compare that against the total height of the cooler including the fan clip, not the heatsink alone.
Which motherboard sizes does this case take?
It is drilled for E-ATX, ATX, M-ATX, ITX. Standoffs for the smaller formats are part of the same tray.
What are the carton dimensions for freight calculation?
One unit packs into a L485*W285*H442mm carton at 5.0Kg & 4.2Kg. Send us your destination port on WhatsApp and we will confirm how many pieces fit a 20ft or 40ft container.
How is the tempered glass panel protected in transit?
Packing for this model is A=A & Foam. The glass panel carries its own protective film and foam corner support. Tell us your transport leg and we will confirm the packing that applies to your order.
Can the front panel be changed for our own brand?
Yes. Die and mould work runs inside the group, so a revised bezel, a different I/O cut-out or a printed logo is handled as a tooling item rather than outsourced. Send the drawing or a photo of the reference part and we will quote the tooling separately from the unit price.
