Ball Joint Stanchion With Handrail
Hot-dip galvanized ball joint stanchion system: 48 x 3.25 mm post, 76 x 3 mm drilled ball and 42.3 x 3.25 mm handrail tube, with a 6 mm base plate.
Product Overview

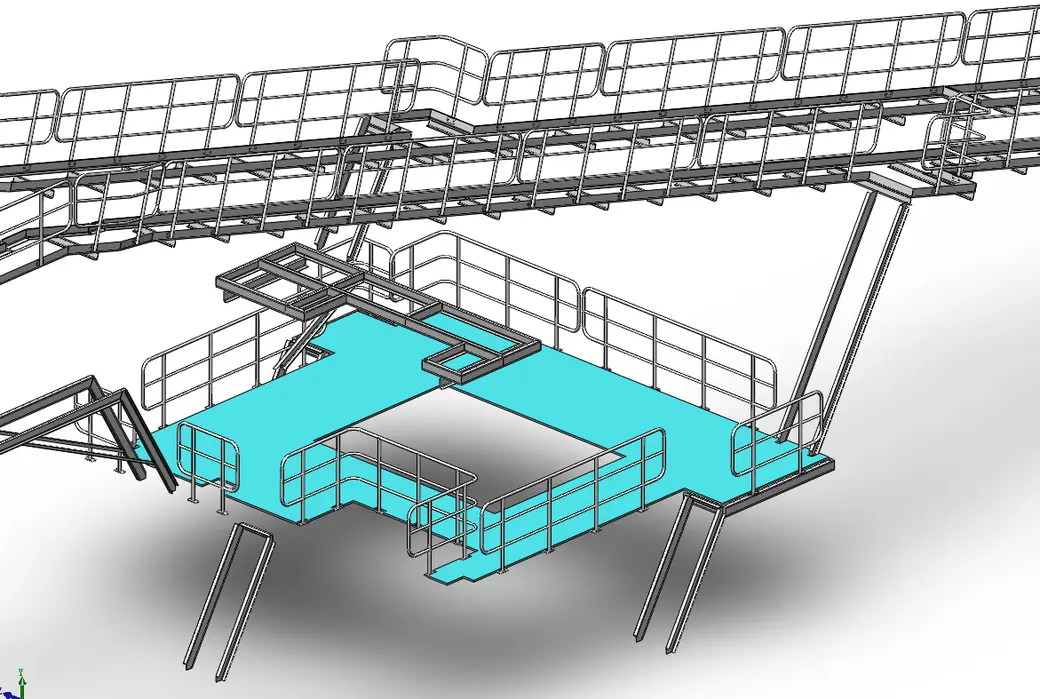

A ball joint handrail system solves a problem that only shows up on a real platform: the run changes direction and level, and every fabricated corner is a site weld that has to be ground and repainted. Here the rail passes through a drilled ball welded to the post, so the rail can follow the run and the geometry is absorbed at the joint. The posts are 48 x 3.25 mm tube, the balls 76 x 3 mm, the rail 42.3 x 3.25 mm, and the base plates 6 mm thick, drilled to your steelwork. The whole system is hot-dip galvanized, the same finish as the grating it goes around.
Key Benefits
- Rail follows changes of level and direction without a fabricated corner at each post
- Site welding and site painting reduced to almost nothing
- Base plates drilled to your steelwork pattern before galvanizing
- Same finish and same delivery as the grating for that platform
At A Glance
- Family
- Stanchion And Handrail
- Category
- Stanchion And Handrail
- Product type
- Ball joint stanchion with handrail
- Round tube size
- 48 x 3.25 mm
- Rail size
- 42.3 x 3.25 mm
- Ball size
- 76 x 3 mm
What It Looks Like
Photographs of this product taken by the factory, lit and in production. Nothing here is a rendering of a product that does not exist yet.
Who It Is For
- Steel fabricators decking and railing platforms
- Process plant and utilities contractors
- Contractors working to a site handrail specification
- Buyers already ordering grating who need the edge protection with it
Problems It Solves
- Handrail fabricated post by post on site at site labour rates
- Rail runs that do not line up where a walkway steps or turns
- Painted handrail needing repainting after two winters
- Grating and handrail ordered separately and arriving weeks apart
Application Scenarios
- Edge protection on access platforms and mezzanines
- Walkway runs that step or change direction
- Stair handrail and landing guarding
- Tank top, pipe rack and roof plant access
Technical Features
- Round tube post 48 x 3.25 mm
- Handrail tube 42.3 x 3.25 mm
- Drilled ball 76 x 3 mm
- Base plate thickness 6 mm
- Hot-dip galvanized
Published Specification
Every row below is reproduced from the manufacturer's published specification for this range. Rows shown in italics are figures the specification does not publish; those are confirmed in writing rather than estimated here.
| Product type | Ball joint stanchion with handrail |
| Round tube size | 48 x 3.25 mm |
| Rail size | 42.3 x 3.25 mm |
| Ball size | 76 x 3 mm |
| Bottom plate thickness | 6 mm |
| Surface treatment | Hot-dip galvanizing |
| Post height and centres | TBC, confirmed against your specification |
| Place of production | Yantai, Shandong Province, China |
| Brand | ShengJingYe |
| Minimum order quantity | Small batch accepted |
| Lead time | Confirmed in writing per order, not published |
Use Guide
- Set out post centres from the drawing before the grating goes down
- Check base plate patterns against the steelwork before galvanizing, not after
- Leave tube ends able to drain; sealed tube traps water
- Do not weld to galvanized components on site without recoating the area
- Order the handrail with the grating so both arrive in one shipment
Quality Control
- Ball position and drilling checked so rails align along the run
- Base plate hole pattern checked against the steelwork drawing
- Weld between ball and post inspected
- Coating inspected inside tube ends and around the ball
Materials
- Carbon steel tube, plate and ball
- Zinc coating applied by hot-dip galvanizing
Manufacturing Process
- Drawing and 3D model
- Cutting and stamping
- Pressure welding or press locking
- Framing and fabrication
- Surface treatment
- Inspection and packing
Certification Standards
Production follows TBC, the source specification publishes no certification marks. Certificates are sent per product on request rather than posted publicly, because the documents a shipment needs depend on the destination market.
Customisation Options
- Post height and post centres to your specification
- Base plate pattern, edge distance and slotted holes
- Mid-rail, toe plate and infill arrangements
- Painted finish over galvanizing where a colour is required
How It Compares With The Alternatives
A technical comparison against other ways of solving the same problem. Nothing here is a performance claim against a named competitor product.
| Against a stock panel cut to fit on site | A stock panel trimmed on site loses its banding, its bar pitch at the edge and its coating at every cut. This one is drawn to the opening and coated after it is fabricated. |
| Against buying the panel and its frame separately | Panel, banding, hooks, frame and handrail are fabricated and coated in the same plant and the same batch, which is what makes them fit each other. |
| Against another family in this range | See the Stanchion And Handrail page for what this family does that the others do not, and the related products below for the nearest alternatives. |
Ball Joint Stanchion With Handrail Questions
What height are the posts?
Which handrail standard does this meet?
Can you drill the base plates to our pattern?
Can I order the grating and handrail together?
