- Welded Steel Grating 30x2.5 With Flat Cross Bar
Welded Steel Grating 30x2.5 With Flat Cross Bar
Pressure-welded carbon steel panel on 30x2.5 bearing bar with an 8x2 flat cross bar, hot-dip galvanized, for general platform, walkway and trench duty.
Product Overview
This is the section most walkways are built from. A 30 mm deep bearing bar at 2.5 mm thick carries pedestrian and light trolley traffic over a normal span without being heavier or more expensive than the job needs, and the 8x2 flat cross bar pressure welded across it squares the panel up and keeps the mesh from racking. Panels are hot-dip galvanized after they are cut and banded, so the edges are protected as well as the faces. If you are decking a platform, covering a service trench in a yard, or replacing panels on an existing structure, this is the default to price first and move away from only if the load says so.
Key Benefits
- Carries normal foot and trolley traffic without paying for a heavier section
- Pressure-welded joints rather than hand tacks, so the mesh stays square in service
- Galvanized after fabrication, so cut ends and banding are coated too
- Available in small batches for projects that need panels rather than a container
At A Glance
- Family
- Welded Steel Grating
- Category
- Welded Steel Grating
- Material
- Carbon Steel
- Bearing bar
- 30 x 2.5 mm
- Cross bar
- 8 x 2 mm
- Surface treatment
- Hot-dip Galvanizing
What It Looks Like

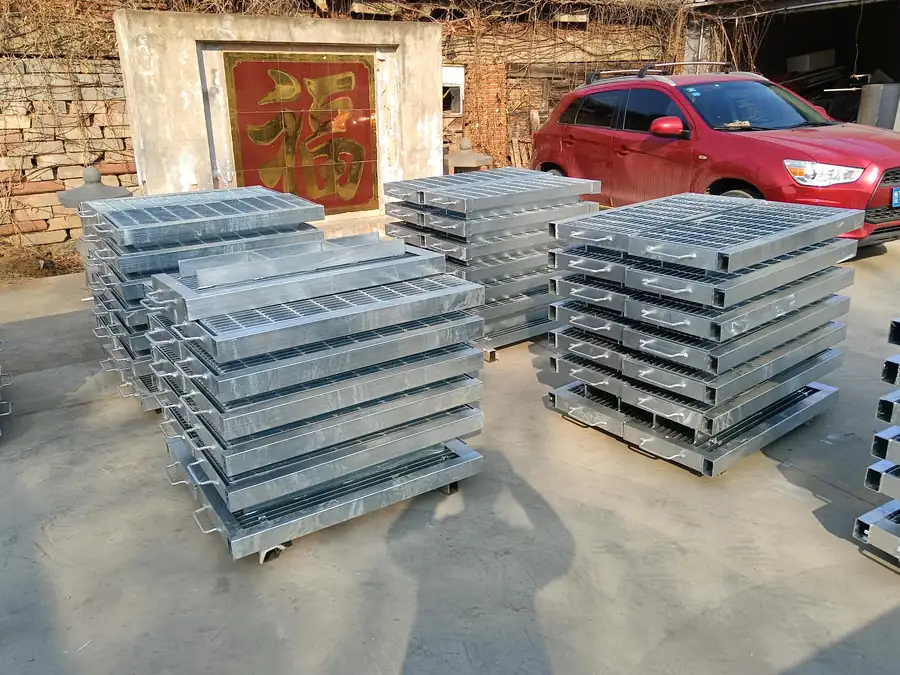

Photographs of this product taken by the factory, lit and in production. Nothing here is a rendering of a product that does not exist yet.
Who It Is For
- Steel fabricators decking platforms to a drawing
- Plant maintenance teams replacing corroded panels
- Warehouse fit-out contractors
- Trading companies supplying grating into building projects
Problems It Solves
- Panels delivered out of square that will not line up across a run
- Cross bar joints working loose under vibration
- Bare, rusting cut ends from galvanizing applied before fabrication
- Minimum quantities far larger than the project actually needs
Application Scenarios
- Maintenance walkways and access platforms in plants
- Mezzanine decking that has to drain and pass light
- Service trench covers in yards and loading areas
- Stair landings on external steelwork
Technical Features
- Bearing bar 30 x 2.5 mm carbon steel
- Cross bar 8 x 2 mm flat, pressure welded
- Hot-dip galvanized after cutting and banding
- Produced on the plant’s automatic pressure welding line
- Panel size, banding and cut-outs made to your drawing
Published Specification
Every row below is reproduced from the manufacturer's published specification for this range. Rows shown in italics are figures the specification does not publish; those are confirmed in writing rather than estimated here.
| Material | Carbon Steel |
| Bearing bar | 30 x 2.5 mm |
| Cross bar | 8 x 2 mm |
| Surface treatment | Hot-dip Galvanizing |
| Structure | Welded Steel Grating |
| Panel size | Made to your drawing |
| Place of production | Yantai, Shandong Province, China |
| Brand | ShengJingYe |
| Minimum order quantity | Small batch accepted |
| Load class | TBC, confirmed in writing against your loading |
| Lead time | Confirmed in writing per order, not published |
Use Guide
- Set panels so bearing bars run across the shortest span, not along it
- Support all four edges; a panel bearing on two edges deflects more than the section suggests
- Fix panels down where trolleys or vehicles cross, or they will walk out of the frame
- Do not flame-cut galvanized panels on site; the coating is destroyed at the cut
- Keep a spare panel from the same batch for future replacement
Quality Control
- Panel checked for size and squareness against the drawing before banding
- Bar pitch checked across the panel, not only at the ends
- Weld joints inspected along the cross bar runs
- Coating finish inspected after galvanizing
Materials
- Carbon steel bearing bar and cross bar
- Zinc coating applied by hot-dip galvanizing
Manufacturing Process
- Drawing and 3D model
- Cutting and stamping
- Pressure welding or press locking
- Framing and fabrication
- Surface treatment
- Inspection and packing
Certification Standards
Production follows TBC, the source specification publishes no certification marks. Certificates are sent per product on request rather than posted publicly, because the documents a shipment needs depend on the destination market.
Customisation Options
- Panel length, width and division to your opening
- Serrated bearing bar for wet or oily surfaces
- Banding bar, end plates, hooks and lifting points
- Cut-outs for pipework and structure
How It Compares With The Alternatives
A technical comparison against other ways of solving the same problem. Nothing here is a performance claim against a named competitor product.
| Against a stock panel cut to fit on site | A stock panel trimmed on site loses its banding, its bar pitch at the edge and its coating at every cut. This one is drawn to the opening and coated after it is fabricated. |
| Against buying the panel and its frame separately | Panel, banding, hooks, frame and handrail are fabricated and coated in the same plant and the same batch, which is what makes them fit each other. |
| Against another family in this range | See the Welded Steel Grating page for what this family does that the others do not, and the related products below for the nearest alternatives. |
Welded Steel Grating 30x2.5 With Flat Cross Bar Questions
What span will this section carry?
Can you serrate the bearing bar?
What panel sizes can you make?
How is it packed?
