ESD Packaging Tubes
ESD Packaging Tubes are extruded plastic channels designed to protect electronic components from electrostatic discharge, mechanical shock, and environmental damage during shipping and handling.
ESD Packaging Tubes in One Paragraph
ESD Packaging Tubes are extruded plastic channels designed to protect electronic components from electrostatic discharge, mechanical shock, and environmental damage during shipping and handling. SEWATE manufactures them in PVC, PS, PC, PETG, and ABS, with oval or square profiles matched to the device body. Available in lengths from 50mm to 1000mm and wall thicknesses from 0.30mm to 1.85mm, they support through-hole, surface-mount, and leadless packages including QFN, MLF, and LPCC. Anti-static properties are achieved through surface treatment or built-in additives, ensuring protection throughout the supply chain.
Why Buyers Specify ESD Packaging Tubes
- Protects components from ESD, dust, and mechanical damage during transport and storage
- Oval or square internal profile matched to device body prevents misalignment and jamming
- Critical dimension control within 5 mils on PVC and +/- 2 mils on PC ensures consistent feeding
- Wall thickness from 0.30mm to 1.85mm allows trade-off between cost, strength, and durability
- Tubes ship in 5-15 days for standard profiles, reducing line downtime
- Available in multiple materials to match environmental, clarity, and impact needs
ESD Packaging Tubes on the Line
Shipping relays, switches, and connectors from a component manufacturer to an overseas EMS

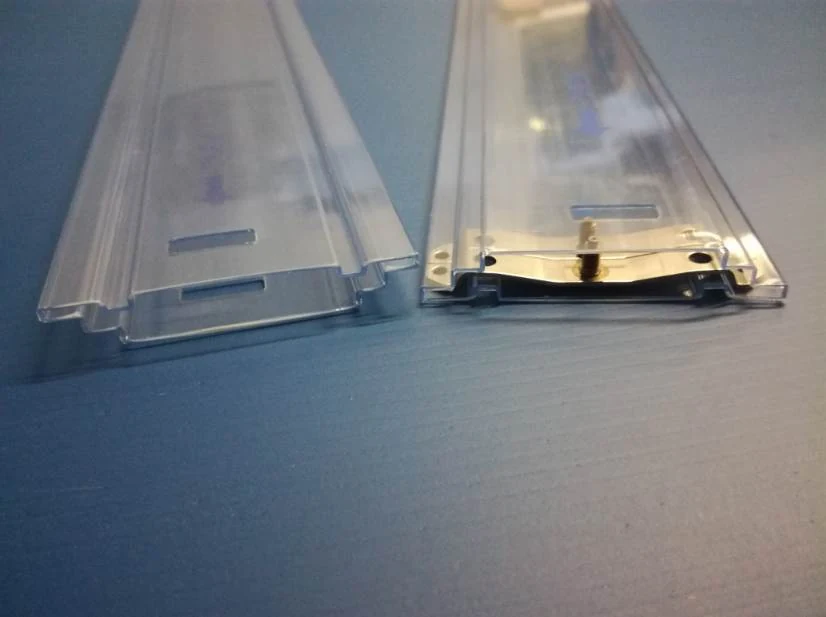

Feeding DIP, SOIC, MSOP, TSSOP, and QFN devices into automatic insertion or pick and place machines
Storing moisture-insensitive components in a warehouse between inspection and production
Re-packing bulk devices into fixed counts per tube for kitting and traceability
Protecting long-lead semiconductors in buffer stock held against allocation risk
Handling heavy or large packages like ceramic TOs and microprocessor heat sinks
ESD Packaging Tubes Is Built For
- IC distributors re-packaging bulk devices for their customers
- Semiconductor and passive component makers packaging finished goods
- EMS and SMT plants receiving tube-packed devices and needing spares for rework
- Relay, switch, and connector manufacturers shipping large or heavy bodies
- LED, power module, and sensor producers requiring ESD-safe packaging
- Purchasing teams replacing a supplier whose tube profile no longer matches the device
What Goes Wrong Without ESD Packaging Tubes
- Devices jam mid-tube due to dimensional drift or rough internal surface
- Electrostatic discharge damages sensitive components during handling and transit
- Bulk-packed parts arrive in random orientation, increasing manual loading time
- Tubes crack on drop, spilling contents inside the carton
- Large or heavy devices cannot fit into tape and reel systems but still need fixed orientation
- Surface-only anti-static treatment degrades after wiping or long storage
Technical Detail of ESD Packaging Tubes

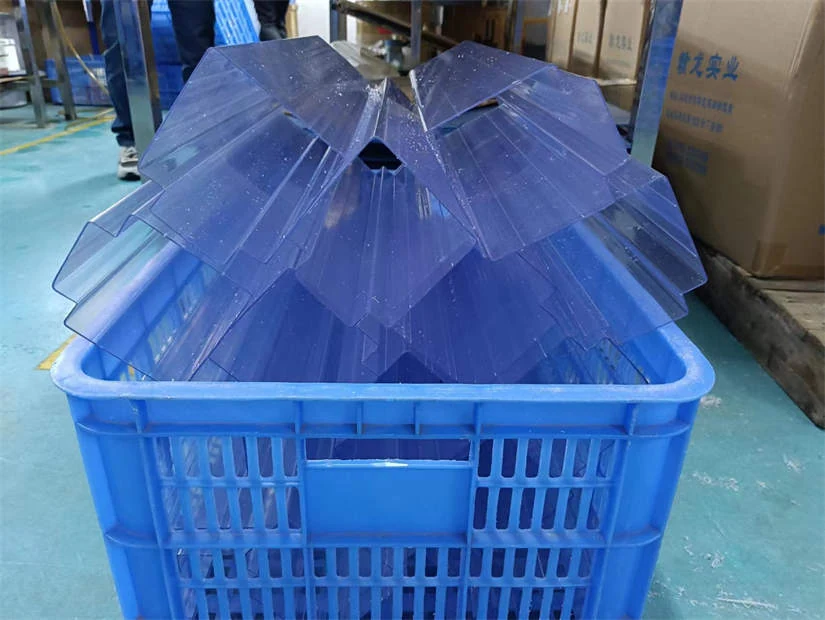

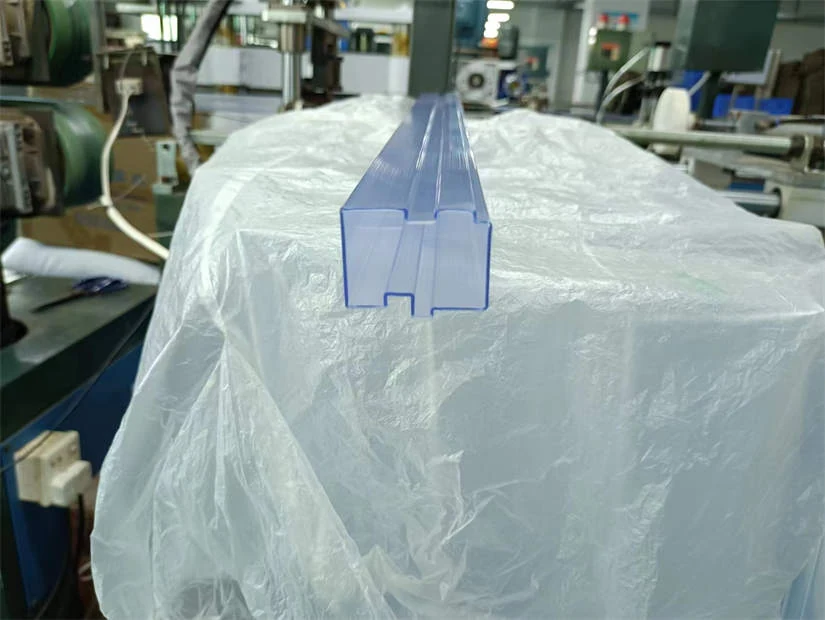

- Oval or square extruded profile matched to device body and lead span
- Anti-static achieved via surface layer process or additives built into the resin
- Critical dimension control within 5 mils on PVC, +/- 2 mils on PC
- Smooth internal surface for consistent device sliding without binding
- Good impact strength and drop resistance for crack-free tubes after carton handling

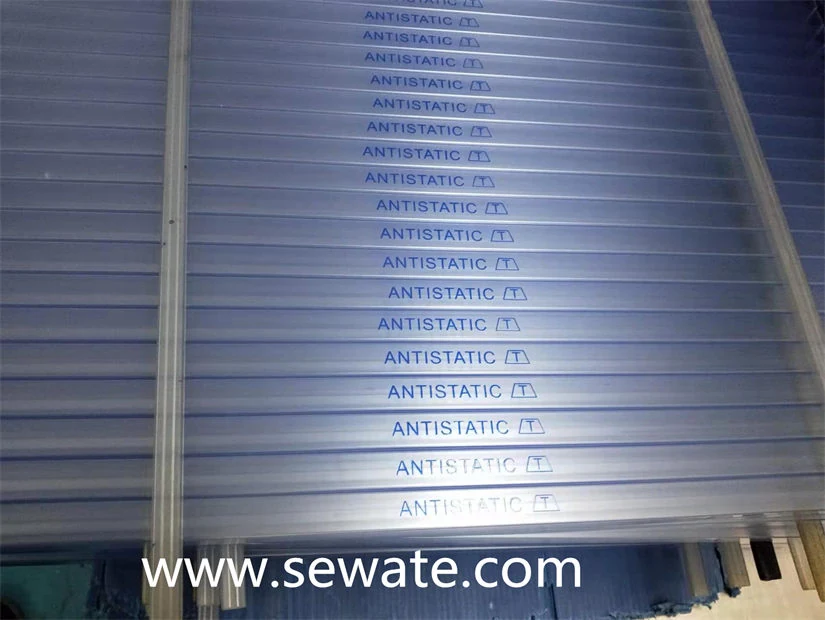

- Optional surface printing of part numbers, symbols, or handling marks
The Numbers for ESD Packaging Tubes
Values are taken from the SEWATE product data for this item.
| Model Number | SE-IC-012 |
|---|---|
| Length | 50mm-1000mm as customized |
| Wall Thickness | 0.30mm-1.85mm |
| Profile | Oval or square or customized |
| Material | PVC / PS / PC / PETG / ABS |
| Colour | Transparent, Blue, Black, Red, Yellow and customized etc |
| Dimension Control | Within 5 mils on PVC, +/- 2 mils on PC |
| Certification | RoHS |
| MOQ | 10000 pieces |
| Sample Time | 3-5 days or according to custom |
| Capacity | 50000 pcs per week |
| Supply Ability | 150 tons per month |
| Payment Terms | T/T, L/C, etc |
| Place of Origin | Shenzhen, China |
| Experience | More than 20 years experience |
| Lead Time | 5-15 days depending on quantity |
Resins Used in ESD Packaging Tubes
- PVC offers high strength, good flexibility, stable geometry, and long storage life; standard choice for most IC tubes
- PS is halogen free, low cost, and provides improved clarity and impact strength over standard plastics
- PC delivers tight dimensional tolerance (+/- 2 mils), high impact strength, and clarity for fine-pitch and fragile packages
- PETG provides the strongest impact resistance and excellent transparency, ideal for heavy-duty and large packages
- ABS is selected when high impact strength is required, though transparency is lower than PC or PETG
Production Route for ESD Packaging Tubes
- Review of application requirements and tube functionality during quotation
- Drawing created from purchase order and issued for customer approval before tooling
- Mould making and tooling trial on the approved profile
- Sample production with 20-50 free tubes for fit testing on the actual device
- Extrusion of the approved profile followed by cutting to the ordered length
- Anti-static treatment applied via surface layer process or built-in additive as specified

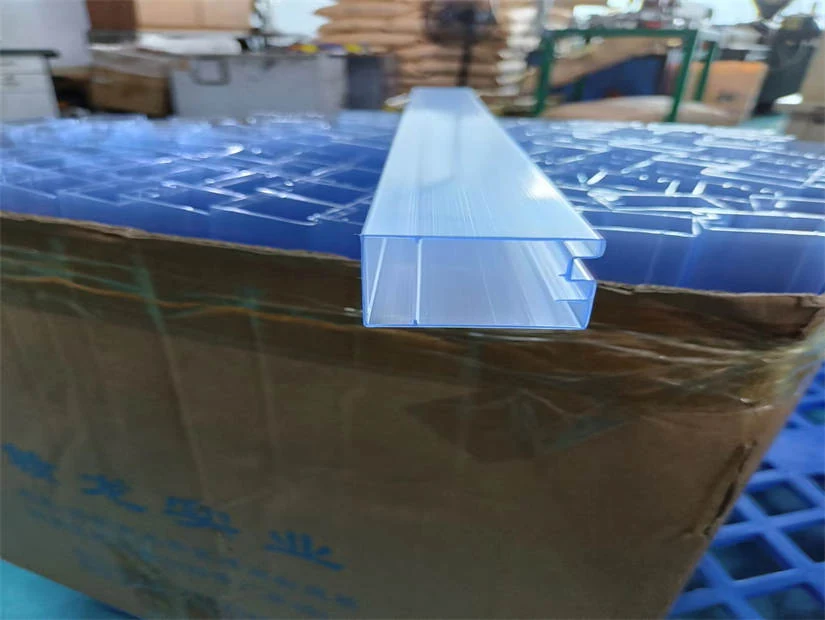

- Fitting of closures (rubber plugs, plastic pins, nails, caps, EPE plugs), counting, and packing into cartons
How ESD Packaging Tubes Is Checked
- Critical dimension control within 5 mils on PVC and +/- 2 mils on PC ensures consistent fit
- Sample tubes tested against the device or drawing before mass production
- Anti-static value verified to remain stable after handling and storage
- Drop and pressure tests performed on tube bodies before packing
- ISO14001 quality management system in place with after-sales support on shipped lots
What Can Change on ESD Packaging Tubes
- Tube length customized to match magazine or carton pitch from 50mm to 1000mm
- Internal profile designed from customer drawing, device drawing, or physical sample
- Material selected from PVC, PS, PC, PETG, or ABS based on cost, clarity, and impact needs
- Colour chosen from transparent, blue, black, red, yellow, or custom options for line identification
- Anti-static method specified as surface treated or additive loaded based on storage and handling
- Surface printing of part numbers, symbols, or handling marks available
- Closure type selected from rubber end plugs, plastic pins, nails, plastic caps, or EPE plugs
Comparing ESD Packaging Tubes
| Tape and reel | Tubes handle larger, heavier, or leadless packages that tape pockets cannot support, but tape is better for high-volume SMD placement |
|---|---|
| Vacuum formed trays | Trays offer better protection for fragile or fine-pitch packages, but tubes are lower cost and load directly into tube feeders |
| Bulk bag packing | Tubes cost more per unit than bulk bags but eliminate random orientation, ESD exposure, and manual loading time |
| Standard stock tubes | Custom profiles require one-time tooling and 4-6 weeks lead time, but stock profiles ship in 5-15 days and fit only pre-defined devices |
Working With ESD Packaging Tubes
- Send a tube drawing, device drawing, or physical sample so the internal profile can be matched
- If no drawing exists, send the physical component for profile measurement
- Confirm tube length against your machine’s magazine pitch before tooling
- Specify whether anti-static must survive repeated wiping and long storage to select the right method
- Choose closure type: rubber plugs for repeated opening, pins for one-way shipping
- Store tubes flat and dry in cartons, away from direct sunlight to prevent deformation
- Plan for one-time tooling cost and 4-6 weeks lead time when introducing a new custom profile
Related Products
Other items in the IC Tubes line that buyers compare with esd packaging tubes.
IC Storage Tubes
IC Storage Tubes are extruded plastic channels designed to hold electronic components in a fixed orientation during shipping, storage, and handling.
View Details
Anti Static Shipping Tubes
Anti Static Shipping Tubes are extruded plastic channels designed to protect electronic components from electrostatic discharge, mechanical shock, and environmental damage during transport and storage.
View Details
IC Shipping Tubes
IC Shipping Tubes are extruded plastic channels designed to protect electronic components during transport and storage, preventing electrostatic discharge, mechanical shock, and environmental damage.
View DetailsRelated Guides
Background reading before you specify esd packaging tubes.
Vacuum Formed Trays For Component Packaging
Vacuum formed trays are made by heating a plastic sheet, stretching it over a mold, and pulling it down with vacuum pressure.
Read Guide
How Anti Static IC Tubes Are Made From PVC
The process starts with PVC resin fed into an extruder.
Read Guide
Materials For Anti Static IC Tubes
IC shipping tubes are made from several plastics including PVC, PS, PET, PC, and ABS.
Read GuideWhere It Is Used
Where esd packaging tubes is used in production.
Connectors Relays And Switches
Connectors, relays, terminal blocks, switches and power modules are too large or heavy for standard tape and reel packaging.
See Application
LED And Optoelectronics
SEWATE supplies anti-static carrier tape and reel, cover tape, and anti-static tubes for LEDs and optoelectronic devices, including modules, diodes, filters, relays, switches, fuses, transformers, magnetic components, and inductors.
See ApplicationESD Packaging Tubes Buyer Questions
What is the minimum order quantity for ESD Packaging Tubes?
10000 pieces for standard profiles. The MOQ reflects extrusion setup costs; short runs are not economical due to changeover time.
How long does a stock tube order take?
5-15 days depending on quantity. Sample tubes for fit testing are delivered in 3-5 days.
What is the lead time for a custom tube profile?
Basic low volume: 25-day ARO. Typical: 4-6 weeks. Complex or high volume tools: 10-12 weeks.
What do you need to quote a custom tube?
One of: a tube drawing, device drawing, or physical sample. If none exists, send the component for profile measurement.
Which material should I choose for my application?
PVC is standard for strength and stability. PS is halogen free and cost-effective. PC offers tight tolerance and clarity. PETG has highest impact strength. ABS is for high impact needs.
Is the anti-static property permanent?
It depends. Surface treatment can degrade with wiping or long storage. Additives built into the resin maintain anti-static performance longer. Specify your storage duration for the right choice.
Do the tubes come with plugs?
Yes. Rubber end plugs, plastic pins, nails, plastic caps, and EPE plugs are available and selected based on the tube profile and how often it will be opened.
Send the Device and Get ESD Packaging Tubes Quoted
A drawing, a sample or the physical component is enough. Sales and engineering come back within 24 hours.
