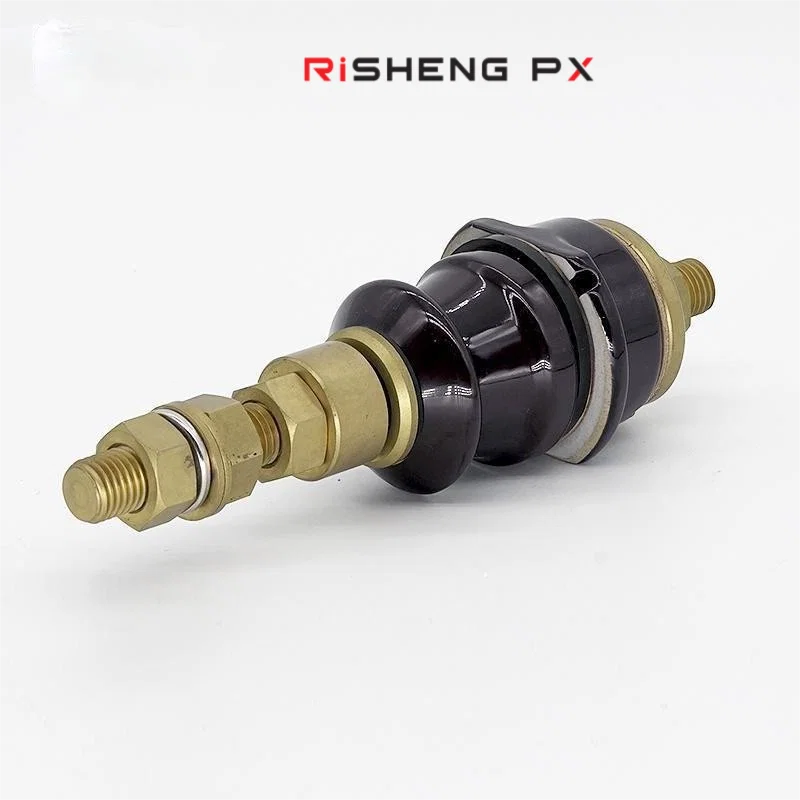

DIN 42530 1kV 630A Ceramic Bushing DT 1/630
Low Voltage Transformer Bushings
Product Overview
A DIN 42530 low voltage bushing catalogued as DT 1/630 at 1 kV and 630 A. The published table gives a 45 mm tank hole size, 75 mm creepage and an M20 stem connection. Across the DIN 42530 range the tank hole grows with current, from 45 mm at 630 A to 90 mm at 3150 A, and the stem connection steps from M12 through M20, M30, M42 and M48.
- DIN 42530
Key benefits
Why Buyers Choose This Part
- Tank hole size and stem thread published per current rating
- 45 mm tank hole and M20 stem at the 630 A rating
- 75 mm creepage, the standard figure from 630 A upward
- Part of a table spanning 250 A through 3150 A
Application scenarios
Where It Is Used
- 1 kV low voltage transformer terminals at 630 A
- Terminal board design where tank hole size governs
- Replacement matching an existing M20 stem connection
- Transformer builds standardising on DIN 42530
Who it is for
Who It Suits
- Distribution transformer manufacturers
- Design engineers laying out LV terminal boards
- Distributors supplying the DIN 42530 range
Problems it solves
What Goes Wrong Without The Right Part
- Bushings ordered without checking the tank hole size
- Stem threads that do not match the busbar connection
- Creepage assumptions carried across from the wrong current rating
- Terminal boards redesigned because the bushing did not fit

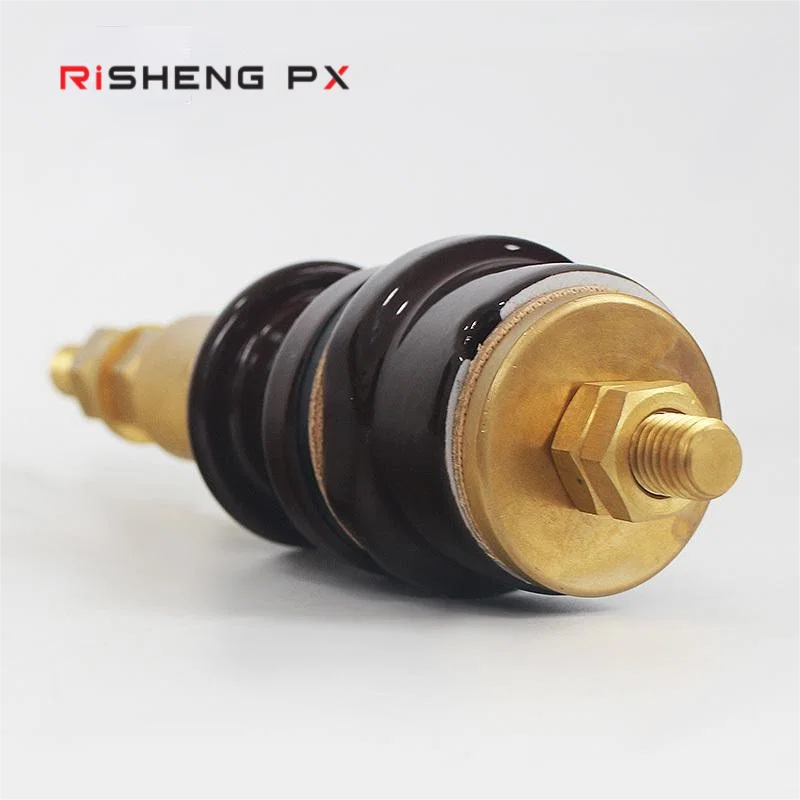

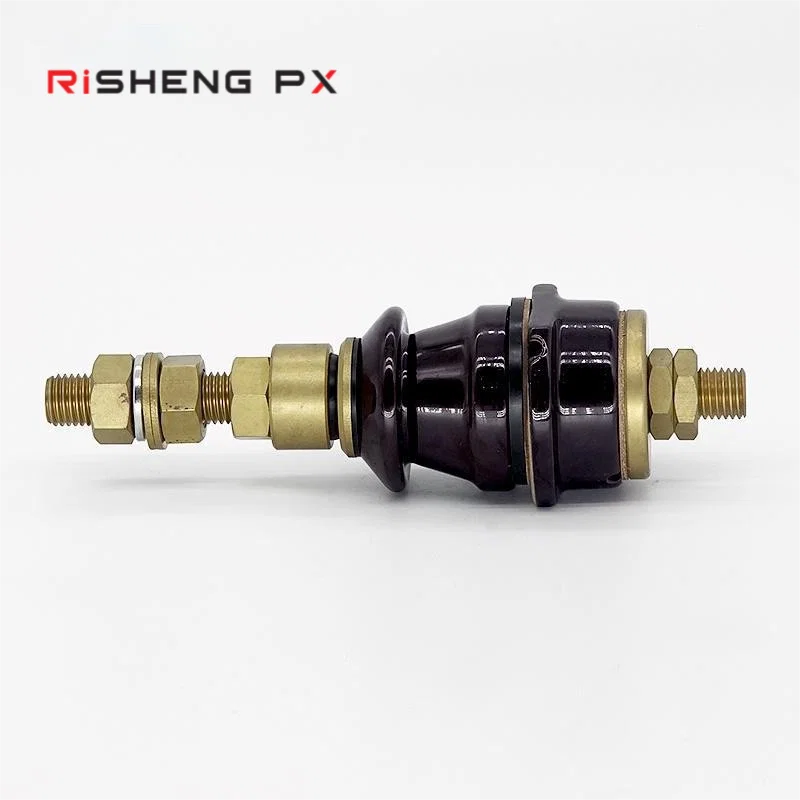

Technical features
How It Is Built
- DIN 42530 DT 1/630 pattern
- 1 kV at 630 A
- 45 mm tank hole size
- 75 mm creepage distance
- M20 stem connection
- Family tank holes: 45 mm at 630 A, 56 mm at 1000 A, 70 mm at 2000 A, 90 mm at 3150 A
- Family stem connections: M12, M20, M30, M42, M48
Specifications
Published Figures For This Product
Every value below comes from the manufacturer data for this item. Figures not listed are confirmed against the drawing before an order is placed.
| Tank Hole Size | 45 mm |
|---|---|
| Creepage Distance | 75 mm |
| Weight | 0.26 kg |

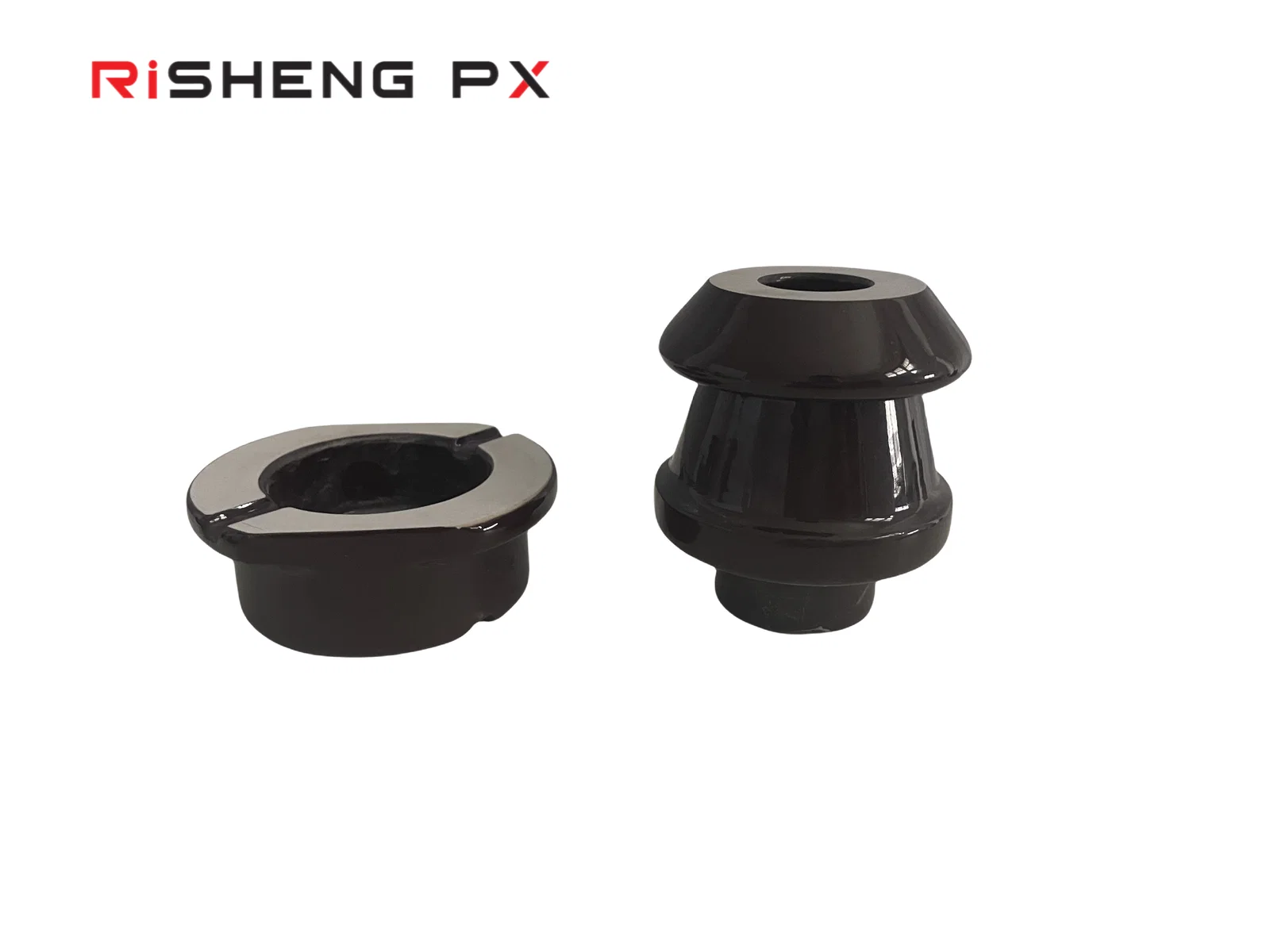

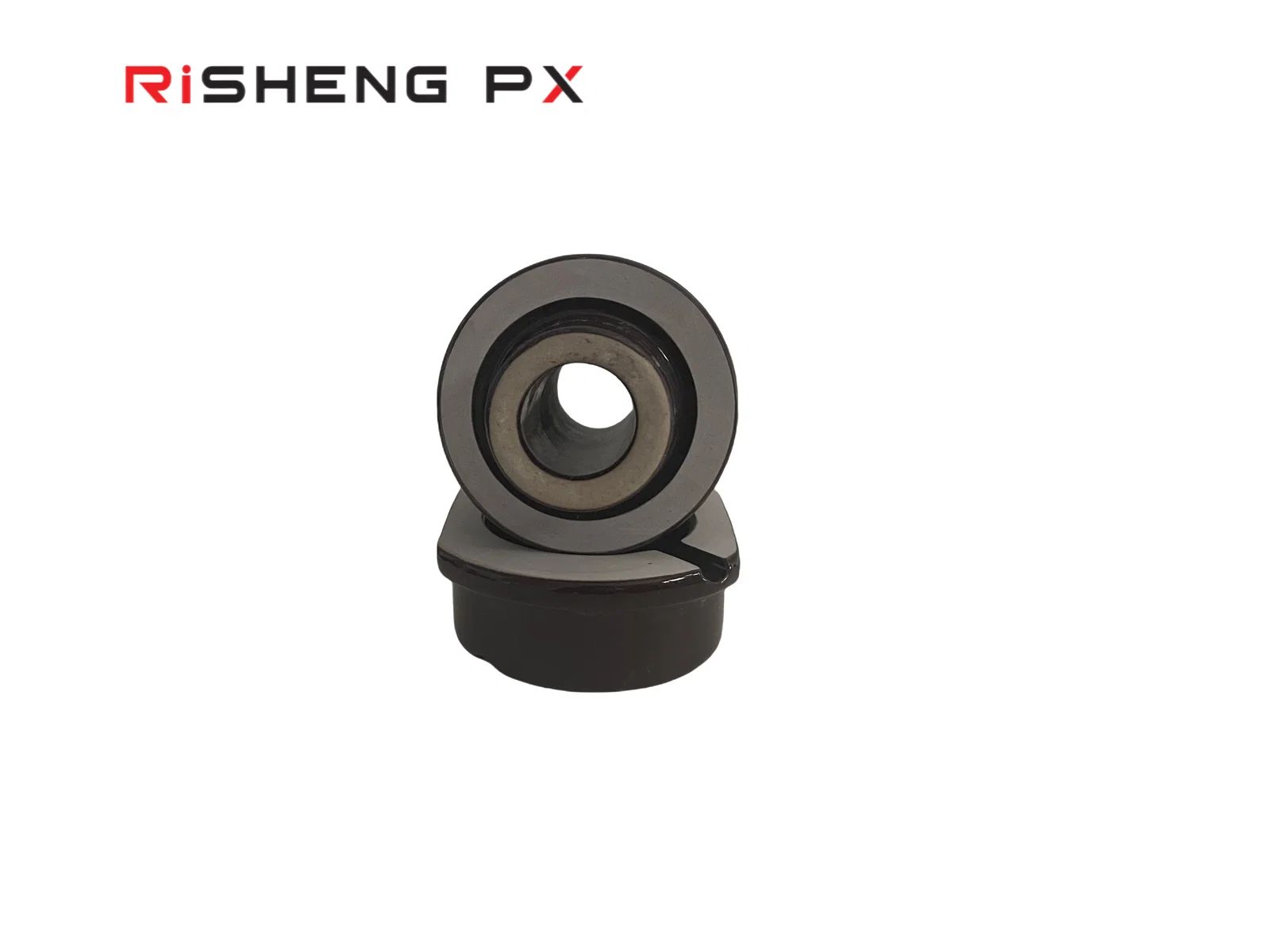

Materials
Materials
- Electrical porcelain
- Copper fittings
Manufacturing
Process
- Forming
- Glazing
- Firing
- Stem machining and assembly
- Routine electrical test
Quality control
Testing
- Tank hole and stem thread dimensional check
- Creepage verified against the 75 mm figure
- Conductor path inspection at the 630 A rating
Certifications
Certification
- Manufactured to DIN 42530
- ISO 9001 quality management system
Customisation
Customisation Options
- Special lengths or connection types to specification
- Other current ratings in the DIN 42530 range
- OEM and ODM supply
Comparison
How It Compares
| DT 1/250 | The 250 A version uses a 60 mm creepage and an M12 stem. Tank hole and stem change with every step in current, so the terminal board has to match. |
|---|---|
| DT 1/3150 | The 3150 A version needs a 90 mm tank hole and an M48 stem at the same 75 mm creepage. |
Use guide
Before You Order And After It Arrives
- Measure the tank hole and match it to the 45 mm figure
- Confirm the M20 stem suits your busbar connection
- Do not assume creepage carries across current ratings
- Order gaskets with the bushing when replacing
Questions
DIN 42530 1kV 630A Ceramic Bushing DT 1/630 Questions
What tank hole size does the DT 1/630 need?
45 mm. The 1000 A version needs 56 mm, the 2000 A version 70 mm and the 3150 A version 90 mm.
What stem connection does it use?
M20. Across the range the stem steps M12, M20, M30, M42 and M48.
What is the creepage distance?
75 mm. The 250 A version is 60 mm.
What is the rated voltage?
1 kV.
Can you supply special lengths?
Yes, we manufacture bushings to customer specifications including special lengths and connection types.
Which DIN standards do you cover?
DIN 42530, 42539, 42531, 52432, 42533 and 42534.
