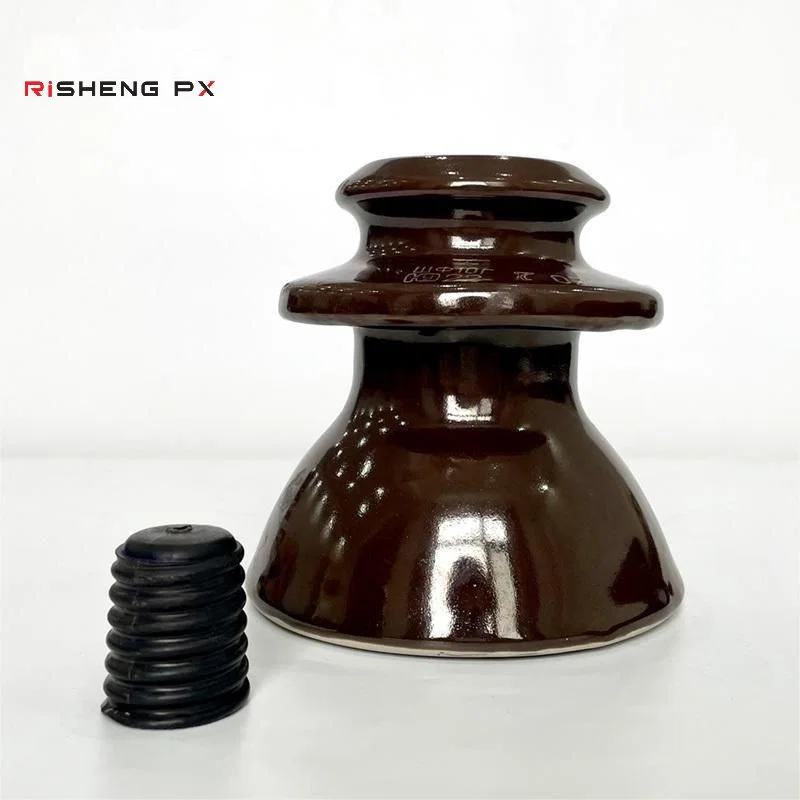

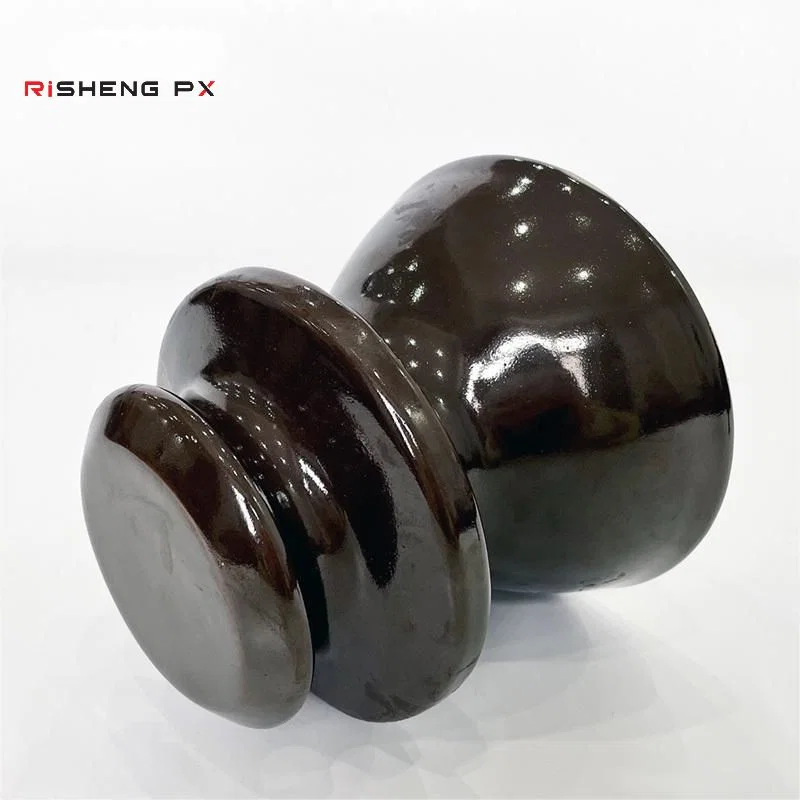

ShF-10G Ceramic Pin Insulator Standard Listing
Pin Type Insulators
Product Overview
The catalogue listing of the ShF-10G ceramic pin insulator, the 10 kV member of the ShF pin family used across CIS distribution networks. It carries line conductors on pin spindles and is ordered against the ShF-10G designation. Full drawing values for this listing are confirmed on request before the order is placed.
Key benefits
Why Buyers Choose This Part
- Held as a distinct catalogue listing for buyers ordering by designation
- Same ShF-10G pattern used across CIS 10 kV distribution networks

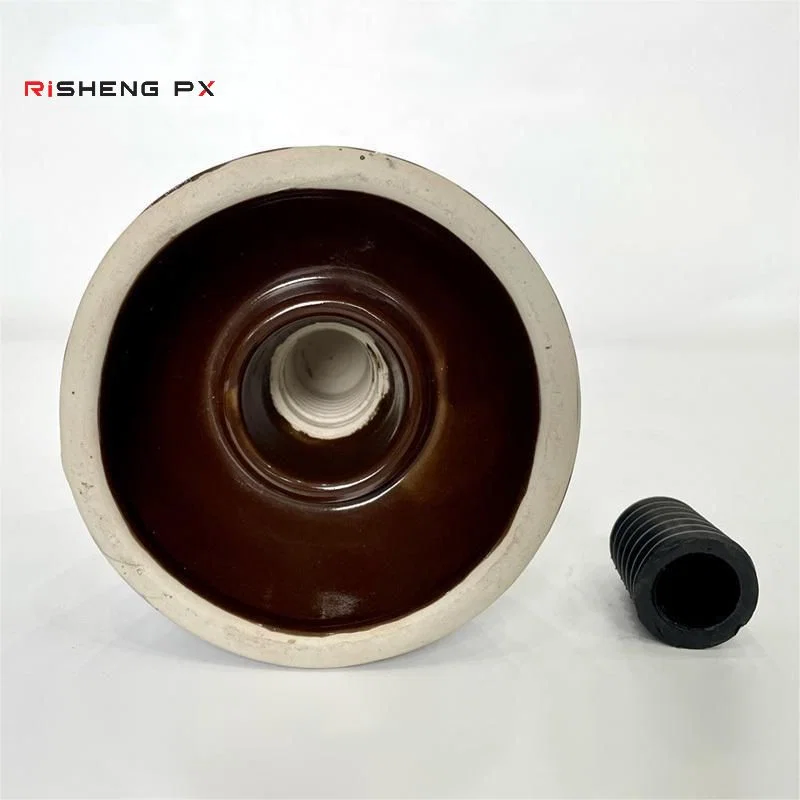

- Glazed porcelain body suited to long outdoor exposure
- Supplied alongside the rest of the ShF range from one factory
Application scenarios
Where It Is Used
- 10 kV distribution line construction and repair
- Bulk stock orders against the ShF-10G designation
- Networks standardising pin hardware on the ShF family
- Line refurbishment matching existing installed insulators
Who it is for
Who It Suits
- Line construction crews at 10 kV
- Utility stores holding ShF pin insulator spares
- Distributors quoting from CIS catalogues
Problems it solves
What Goes Wrong Without The Right Part
- Orders that have to be placed against a specific catalogue designation
- Pin insulator supply split across several vendors
- Replacement units that do not match the installed spindle thread
- Small repeat quantities local suppliers will not run
Technical features
How It Is Built
- ShF-10G designation
- 10 kV distribution class
- Glazed electrical porcelain body

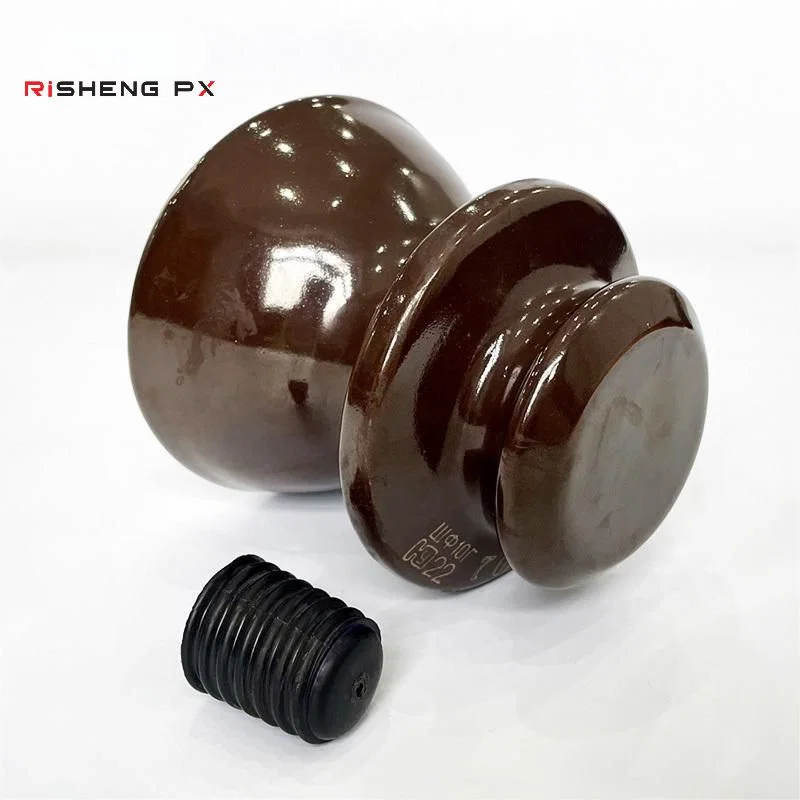

- Pin spindle mounting with conductor tie groove
Specifications
Published Figures For This Product
Every value below comes from the manufacturer data for this item. Figures not listed are confirmed against the drawing before an order is placed.
| Distribution Class | 10 kV |
|---|
Materials
Materials
- Electrical porcelain body
- Metal pin fitting
Manufacturing
Process
- Forming
- Glazing
- Firing
- Fitting assembly
- Routine test
Quality control
Testing
- Glaze and body inspection on every unit
- Dimensional check against the ShF-10G drawing
- Routine electrical test before despatch
Certifications
Certification
- ISO 9001 quality management system
Customisation
Customisation Options

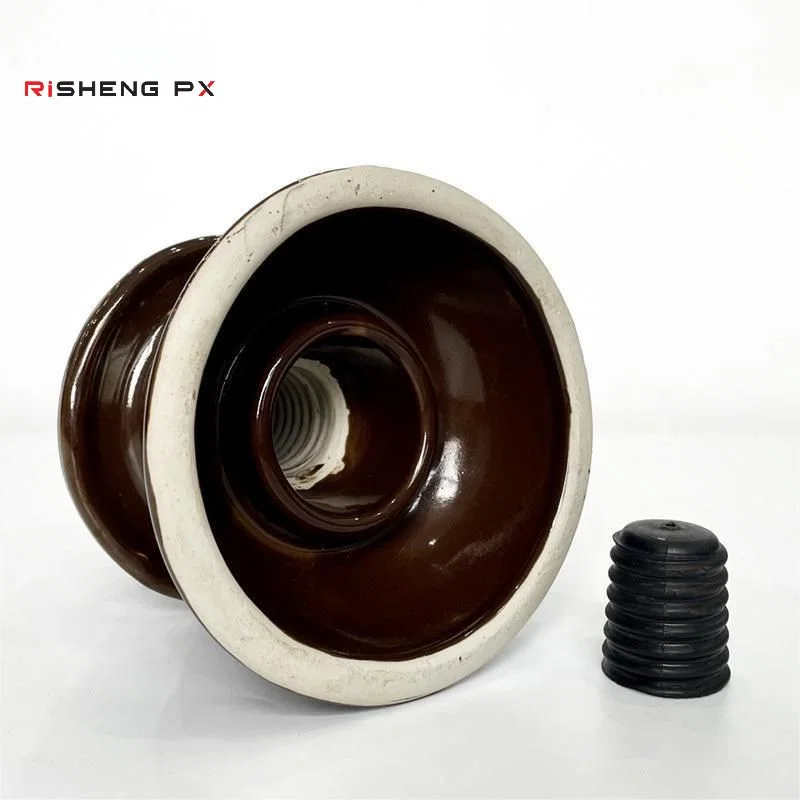

- Pin thread matched to your existing spindles
- Produced to drawing or sample
- Own-brand marking under OEM arrangement
Comparison
How It Compares
| The detailed ShF-10G listing | The same insulator is also published with full test values: 256 mm minimum creepage, 12.5 kN bending load, 100 kV impulse withstand and 1.8 kg weight. |
|---|---|
| ShF-20G1 | The 20G1 is the 20 kV part with longer creepage and a stringing sleeve. Match the class to the line voltage. |
Use guide
Before You Order And After It Arrives
- Order against the designation printed on your parts list
- Confirm the spindle thread before committing to quantity
- Tie the conductor into the groove properly
- Replace any unit with a chipped groove rather than reusing it
Questions
ShF-10G Ceramic Pin Insulator Standard Listing Questions
What are the technical figures for the ShF-10G?
Not less than 256 mm nominal creepage, 12.5 kN minimum bending failing load, 100 kV impulse withstand, 160 kV puncture voltage in insulating medium and 1.8 kg weight.
Why is it listed twice in the catalogue?
One entry is the plain catalogue listing and one carries the full test table. It is the same insulator, so order against whichever reference your parts list uses.
What voltage class is it?
10 kV distribution.
Can you match our spindle thread?
Yes, send the thread detail and we will confirm before production.
Do you supply the whole ShF range?
Yes, including ShF-10MO, ShF-20G, ShF-20G1 and ShF-20G1S.
What guarantee applies?
A one year quality guarantee period.
