The Failure Mode Is The Real Difference
When a toughened glass disc is punctured the glass shatters and the shell falls away, leaving the cap and pin holding the string. That is visible from the ground and from a helicopter. When a porcelain disc is punctured it usually still looks intact, and finding it means testing the string unit by unit. On a long line this single difference decides the maintenance budget.
U70B Toughened Glass Disc Insulator For 33kV Lines

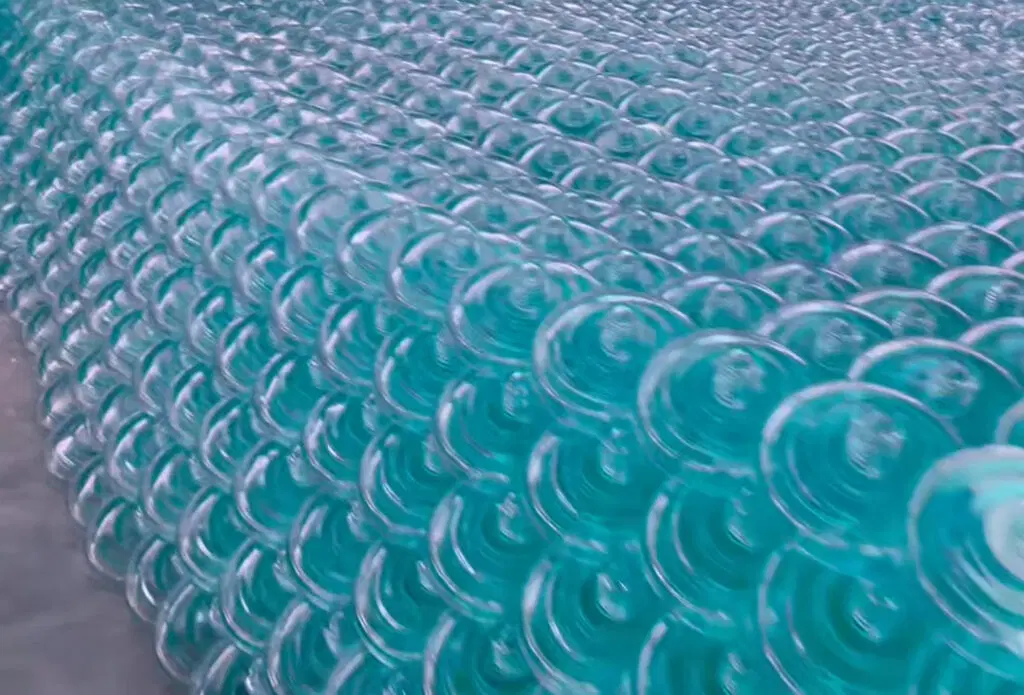

Mechanical Ratings
Both materials are used across the same range of duties. Our toughened glass discs run from 40kN on the U40B through 70kN, 100kN and 120kN to 160kN on the U160B, with a mechanical routine test applied to every disc from 20kN up to 80kN. Porcelain pin and post insulators cover cantilever ratings from 4kN through 16kN depending on the pattern.
U40B Toughened Glass Disc Insulator 40kN
Creepage Per Unit
Glass discs contribute a fixed creepage per unit and the string length sets the total: 185mm on a U40B, 320mm on a U70B through U120B and 400mm on a U160B. A porcelain pin post carries its whole creepage in one body, from 450mm on the ALP22-450 up to 1015mm on the ANSI 57-14. Which approach fits depends on whether the design has room for a swinging string.
ANSI 57-14 Line Post Porcelain Insulator 1015mm Creepage
Where Porcelain Still Wins
Porcelain is the established material at the transformer tank interface, where the part has to be both a mechanical fixing and a seal. It also holds its surface in UV and heat without the ageing behaviour a polymer housing can show. For bushings below 40kV it remains the default, which is why our transformer bushing range is porcelain throughout.
DIN 24kV 630A Transformer Bushing CD525
Choosing For A Dusty Line
On a dusty line the profile matters more than the material. Aerodynamic glass discs are shaped so wind carries deposits off rather than letting them settle. In porcelain the equivalent move is to a long creepage pin post such as the ZS-770 with 770mm of leakage path.
Aerodynamic Toughened Glass Suspension Insulator XYAY Series
