ZS-600 Pin Post Insulator 24kV 600mm Creepage

Name: ZS-600 Pin Post Insulator 24kV 600mm Creepage
Brand: Risheng PX

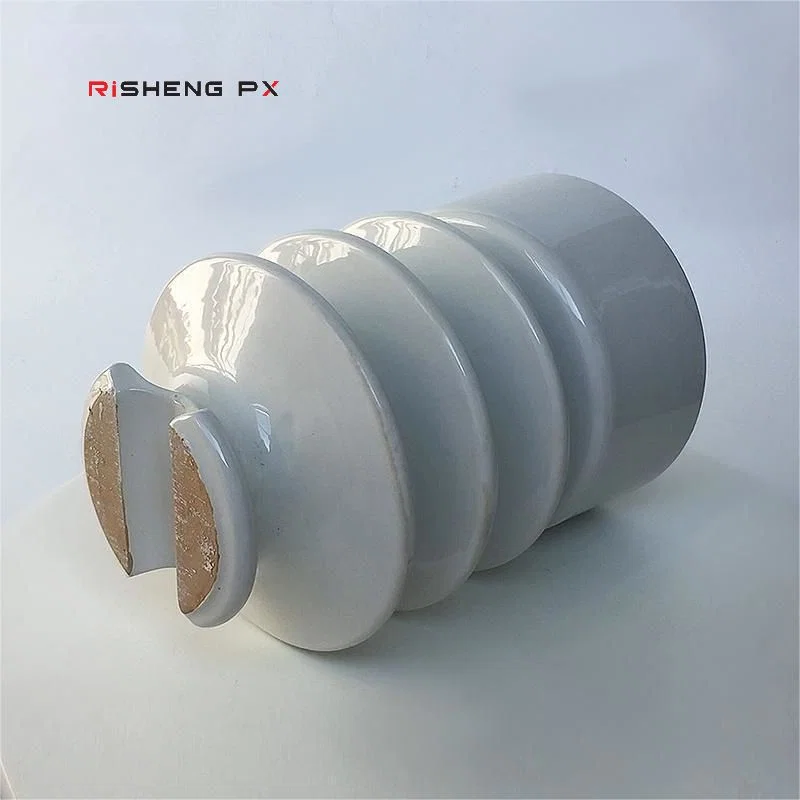

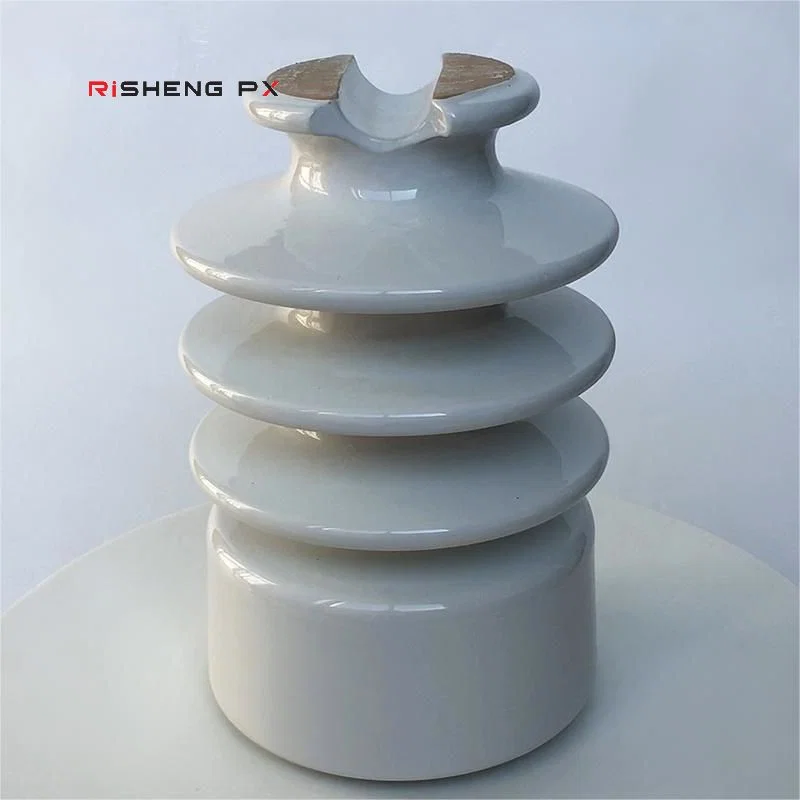

ZS-600 pin post insulator with stacked sheds

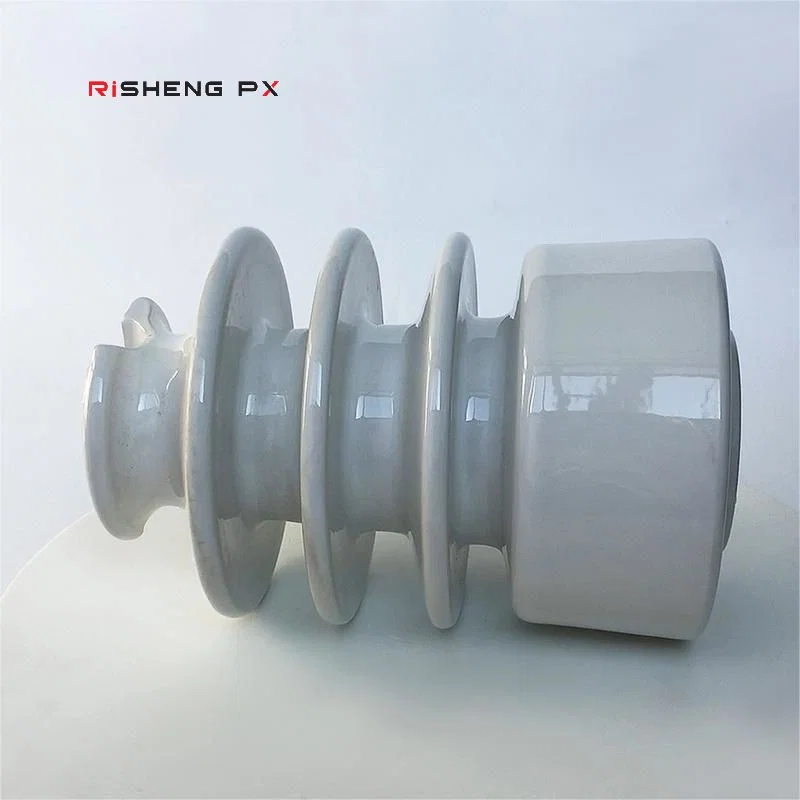

ZS-600 pin post insulator conductor seat

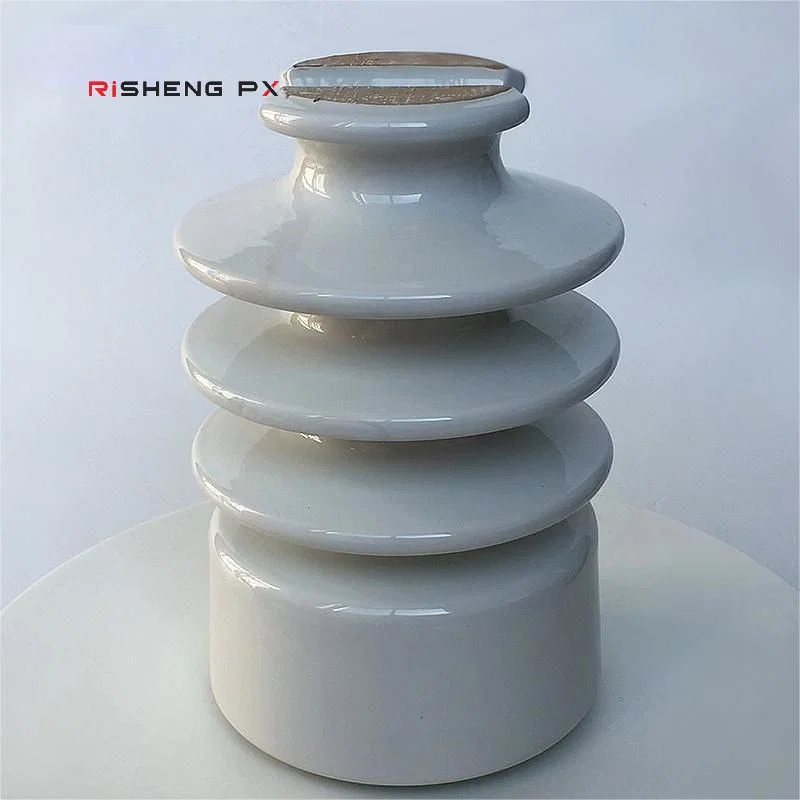

ZS-600 pin post insulator glaze close up

Pin Type Insulators

Product Overview

A 24 kV pin post porcelain insulator with 600 mm creepage and a 13 kN rated electromechanical failing load. Lightning impulse withstand is 125 kV with 75 kV dry and 55 kV wet power frequency withstand, and the power frequency breakdown voltage is 160 kV. It is the mid-size member of the ZS pin post family, below the 770 mm ZS-770.

Request A Quote Email Us

Key benefits

Why Buyers Choose This Part

600 mm creepage at 24 kV for moderately polluted sites
13 kN rated electromechanical failing load
125 kV lightning impulse withstand with a 160 kV breakdown voltage
Pin post mounting keeps the conductor rigid without a string

Application scenarios

Where It Is Used

24 kV distribution lines through moderately polluted air
Compact line designs where a suspension string will not fit
Upgrading a line section that flashes over on standard insulators
New construction specified at 600 mm creepage

Who it is for

Who It Suits

Line engineers specifying creepage by pollution class
Contractors building compact 24 kV lines
Utilities reducing pollution-related outages

Problems it solves

What Goes Wrong Without The Right Part

Standard pin insulators that cannot hold 24 kV in dirty air
Pole designs with no room for a longer insulator string
Lightning trips where impulse withstand is marginal
Choosing between a 600 mm and 770 mm creepage part without data

Technical features

How It Is Built

Rated voltage 24 kV
600 mm creepage distance
13 kN rated electromechanical failing load
125 kV lightning impulse withstand voltage
75 kV power frequency dry withstand voltage
55 kV power frequency wet withstand voltage
160 kV power frequency breakdown voltage

Specifications

Published Figures For This Product

Every value below comes from the manufacturer data for this item. Figures not listed are confirmed against the drawing before an order is placed.

Voltage	24 kV
Creepage Distance	600 mm
Rated Electromechanical Failing Load	13 kN
Lightning Impulse Withstand Voltage	125 kV
Power Frequency Dry Withstand Voltage	75 kV
Power Frequency Wet Withstand Voltage	55 kV
Power Frequency Breakdown Voltage	160 kV

Materials

Electrical porcelain body
Galvanised metal base fitting

Manufacturing

Process

Forming
Glazing
Firing
Base fitting assembly
Electromechanical proof test

Quality control

Testing

Electromechanical proof loading at the 13 kN rating
Lightning impulse withstand verification at 125 kV
Wet power frequency withstand test at 55 kV

Certifications

Certification

ISO 9001 quality management system

Customisation

Customisation Options

ZS-770 available where 770 mm creepage is required
Base fitting matched to your bracket
Produced to drawing or sample

Comparison

How It Compares

ZS-770	The ZS-770 adds 170 mm of creepage and raises the electromechanical rating from 13 kN to 16 kN, with a 190 kV impulse withstand. Specify it only where pollution is severe.
ALP22-450 pin insulator	The ALP22-450 is a 22 kV part at 450 mm creepage and 11 kN. The ZS-600 is the step up for 24 kV service with more creepage.

Use guide

Before You Order And After It Arrives

Choose between ZS-600 and ZS-770 from the measured site pollution class
Keep line pull within the 13 kN electromechanical rating
Mount on a bracket square to the line
Inspect shed undersides where deposits accumulate first
