Non Woven Folding Machine
Automatic Embossing And Folding At 300 To 500 Sheets Per Minute
What This Machine Does

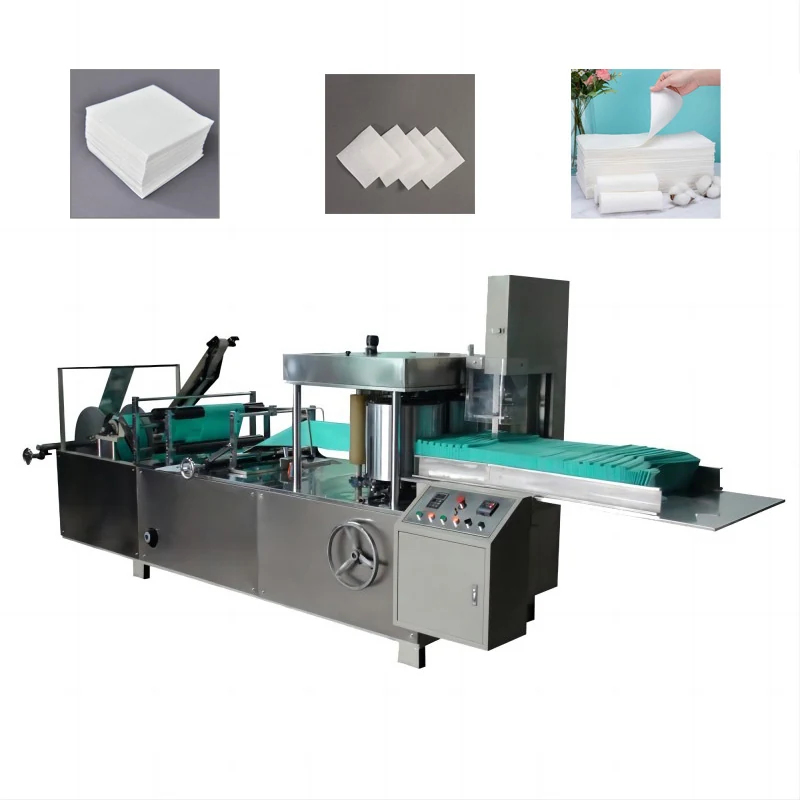

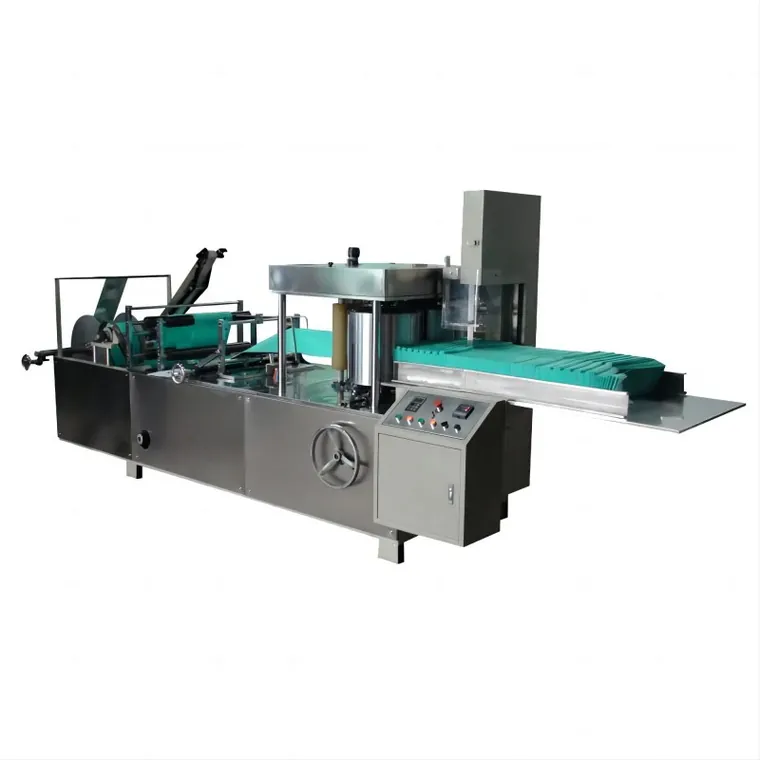

The AQ-F(150-1000) Non Woven Folding Machine folds, embosses and cuts non woven at 300 to 500 sheets per minute with a folding size range of 150 to 1000 mm. N folds, W folds, half folds and other special shapes are all available, and the automatic embossing function adds a clear pattern in line. Total power is 6.5 kW at 220 V / 50 Hz with a machine weight of about 2200 kg, which makes it a practical first folding machine for a growing converting plant.
- Spunlace non woven
- Spunbond non woven
- Air laid webs
Why Buyers Choose This Model
One machine covers small wipes at 150 mm and large sheets at 1000 mm
Automatic embossing improves the perceived quality of an otherwise plain wipe
Folding and cutting parameters adjust to material type, so new products do not need new tooling
2200 kg footprint at 220 V suits plants without heavy three-phase infrastructure in place
Factories Running This Machine
- Wipe and hygiene converters
- Medical disposable manufacturers
- Private label producers with several fold formats
- Plants buying their first automatic folding machine
What It Removes From Your Line
- Fold formats limited by fixed tooling
- Embossing done as a separate operation
- Cut length that drifts as speed rises
- Machines too heavy or too power-hungry for a small plant
Where This Machine Is Used
- Hygiene wipe folding for retail packs
- Medical non woven sheet folding
- Interfolded dispenser wipes
- Cosmetic and household sheet production
How The Machine Is Built
- Folding size range 150 to 1000 mm
- Speed 300 to 500 sheets per minute
- N fold, W fold, half fold and special shapes
- Automatic embossing function with clear pattern definition
- Adjustable folding and cutting parameters
- Total power 6.5 kW at 220 V / 50 Hz, machine weight about 2200 kg, working height about 900 mm
| Machine Model | AQ-F(150-1000) |
|---|---|
| Warranty Period | 1 year |
| Delivery Time | about 30 days |
| Customization | Yes (as your requests) |
| HS Code | 8451500000 |
Production Sequence On This Line
Unwinding
Embossing
Folding
Cutting
Stacking
What We Check Before Shipment
- Fold alignment and cut length checked at production speed
- Embossing clarity verified on your material
- Stack squareness inspected during run-off
- Electrical system tested at your voltage before crating
What We Build To Your Specification
- Fold pattern and sheet size to your product
- Embossing roller engraved to your artwork
- Stack count set to your pack quantity
- Voltage and frequency configured for your plant
Machine And Product Detail

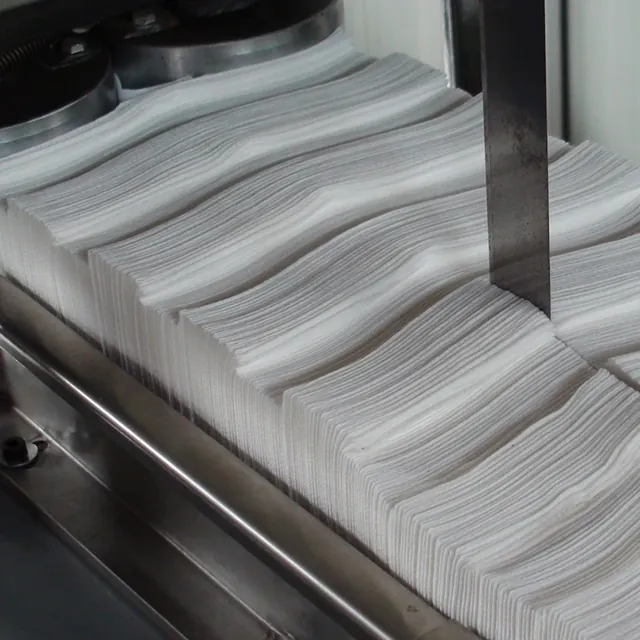

Photographs taken in our own factory and of output produced on this machine family.
How This Model Compares
Compared With Non woven fabric folding machine
Same folding family and size range. This build runs at 220 V with a lighter 2200 kg frame, which suits smaller plants.
Compared With Bed sheet folding machines
Bed sheet machines handle much wider web for a single product. This machine is built for high sheet counts in smaller formats.
Setting The Machine For A Production Run
Select the fold pattern and set the boards for the sheet size
Set embossing pressure for the material weight
Run a test stack and check fold alignment and cut length
Set the stack count and start production
Industries Using This Machine
Other Machines In This Family
Dryer Sheet Making Machine
Chemical Spraying And Folding For Tumble Dryer Sheets
Model AQ-F(200)
Non Woven Fabric Folding Machine
N Fold W Fold And Half Fold At 300 To 500 Sheets Per Minute
Model AQ-F(150-1000)
Non Woven Soft Towel Machine
Infrared Dual Count Folding And Perforating For Soft Towel Products
Model AQ-FR
Non Woven Printing And Folding Machine
In Line Printing And Folding At Up To 450 Pieces Per Minute
Model AQ-F(280)Non Woven Folding Machine FAQ
What folding sizes does the machine cover?
Folding size ranges from 150 mm to 1000 mm at a speed of 300 to 500 sheets per minute.
Which fold shapes are available?
N fold, W fold, folding in half and other special shapes.
Does it emboss?
Yes. An automatic embossing function produces clear patterns in line as required.
What power supply does it need?
Total power is 6.5 kW at 220 V / 50 Hz, and the machine weighs about 2200 kg.
Get A Quotation For The AQ-F(150-1000)
Tell us your finished product size, fabric weight, output target and voltage, and we confirm the Non Woven Folding Machine specification, price and delivery.
