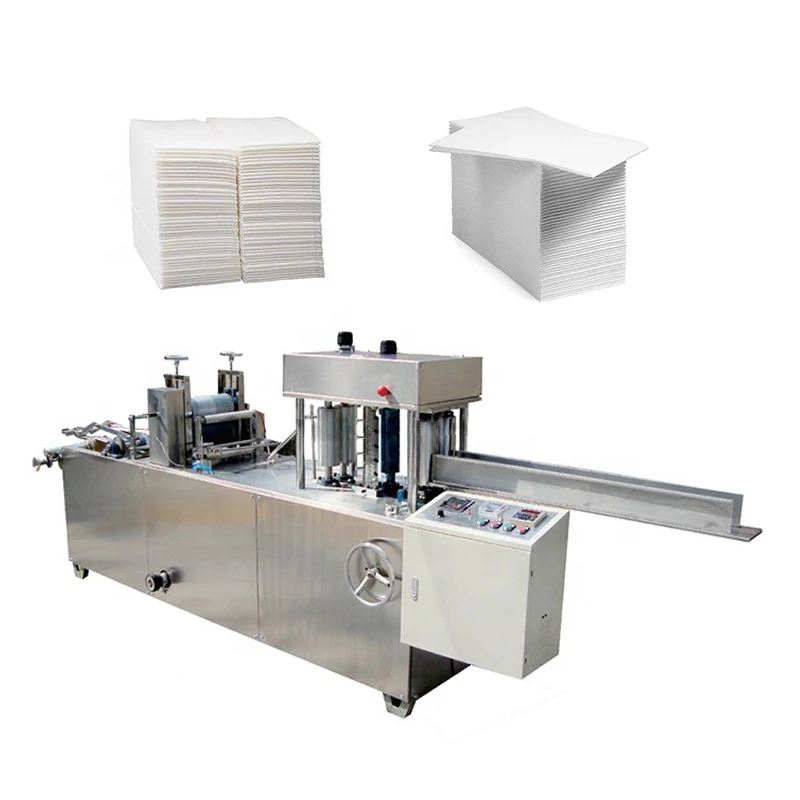

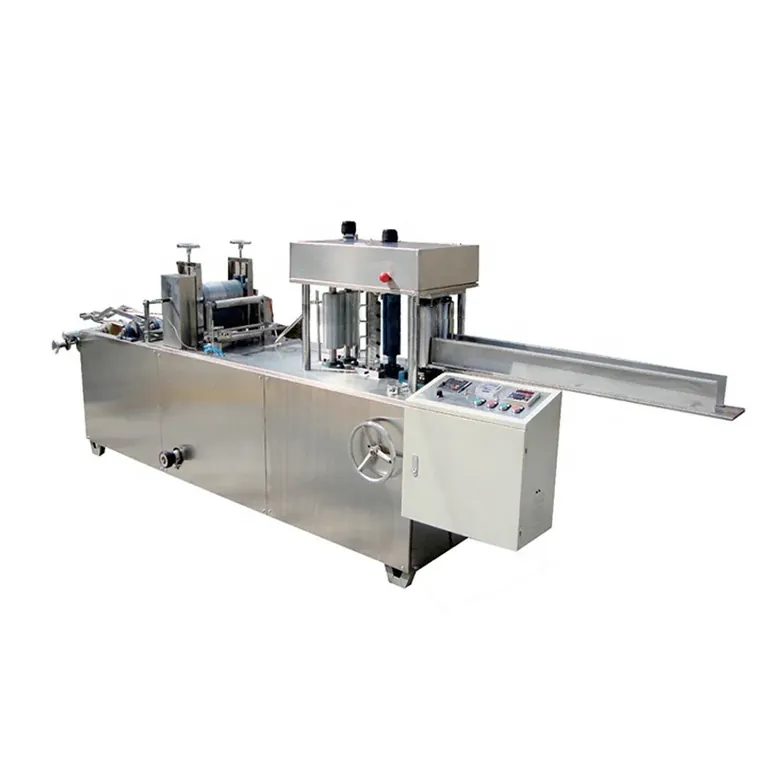

Non Woven Fabric Folding Machine
N Fold W Fold And Half Fold At 300 To 500 Sheets Per Minute
What This Machine Does
The AQ-F(150-1000) Non Woven Fabric Folding Machine folds, embosses and cuts non woven at 300 to 500 sheets per minute with a folding size range of 150 to 1000 mm. It produces N folds, W folds, half folds and other special shapes, and an automatic embossing function adds a clear pattern in line. Folding and cutting parameters are adjustable, so one machine covers hygiene, medical and industrial wipe formats without mechanical rebuilds.
- Spunlace non woven
- Spunbond non woven
- Air laid and blended webs
Why Buyers Choose This Model
Folding size from 150 to 1000 mm on one machine covers small wipes through to large sheets
N, W, half and special fold shapes let you follow your customer's dispenser format
Automatic embossing adds perceived value without a separate embossing pass
300 to 500 sheets per minute keeps a packing line busy from a single folder
Factories Running This Machine
- Wipe converters serving dispenser brands
- Medical disposable manufacturers
- Industrial wipe suppliers
- Private label converters with many fold formats
What It Removes From Your Line
- Separate machines needed for each fold pattern
- Embossing done as an extra pass with extra handling
- Fold sizes that cannot be changed without changing parts
- Folding speed that limits the packing line
Where This Machine Is Used
- Interfolded wipes for dispensers in hygiene and food service
- Medical non woven sheet folding
- Industrial wipe folding for automotive and engineering customers
- Cosmetic and household sheet folding for retail packs
How The Machine Is Built
- Folding size range 150 to 1000 mm
- Speed 300 to 500 sheets per minute
- N fold, W fold, half fold and special shapes
- Automatic embossing function with clear pattern definition
- Adjustable folding and cutting parameters for different materials
- Built as an automatic non woven folding and cutting machine on a durable welded frame
| Machine Model | AQ-F(150-1000) |
|---|---|
| Warranty Period | 1 year |
| Delivery Time | about 30 days |
| Customization | Yes (as your requests) |
| HS Code | 8451500000 |
Production Sequence On This Line
Unwinding
Embossing
Longitudinal folding
Cross folding
Cutting
Stacking
What We Check Before Shipment
- Fold squareness measured on stacks taken through the run
- Embossing clarity checked on your material
- Cutting length repeatability verified at production speed
- Machine run at your fold format during factory run-off
What We Build To Your Specification
- Fold pattern and finished sheet size to your specification
- Embossing roller engraved with your pattern
- Stacking count set to your pack size
- Voltage and frequency set to your supply

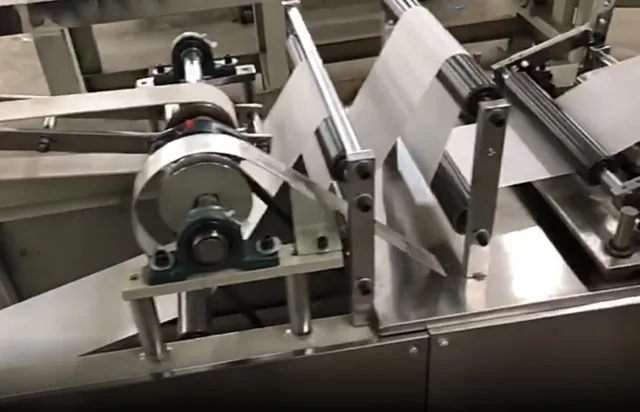

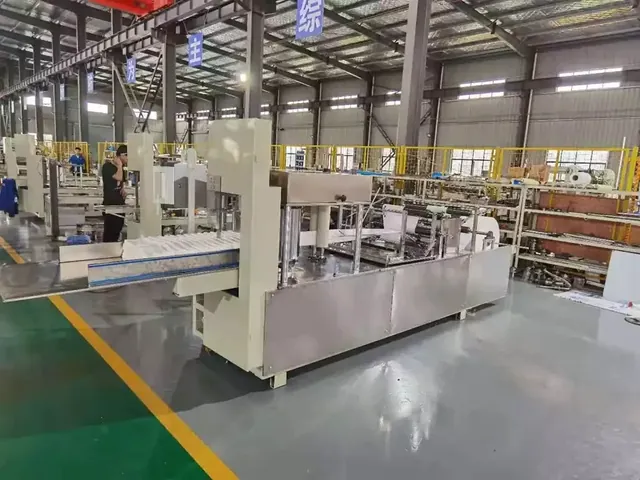

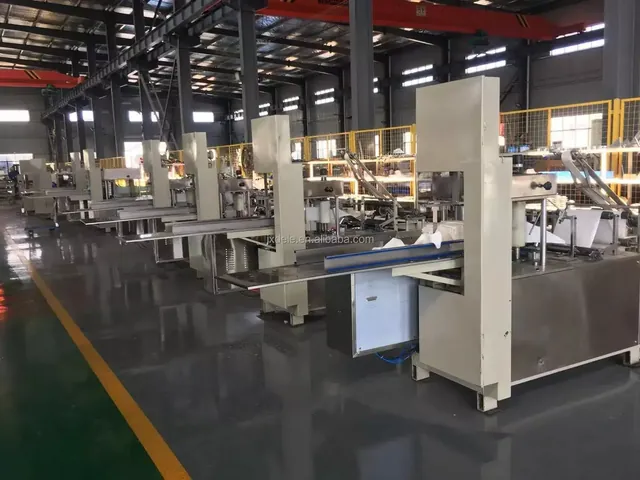

Machine And Product Detail
Photographs taken in our own factory and of output produced on this machine family.
How This Model Compares
Compared With Non woven folding machine AQ-F standard model
This build covers the widest fold size range, from 150 mm small wipes to 1000 mm sheets, with in-line embossing included.
Compared With Rewinding machines
A rewinder returns a roll. This machine returns stacked, folded sheets ready for a dispenser or a flow wrapper.
Setting The Machine For A Production Run
Select the fold pattern and set the folding boards for the sheet size
Set embossing pressure for the material weight
Run a test stack and check fold alignment and cut length
Set stack count and start the production run
Industries Using This Machine
Other Machines In This Family
Dryer Sheet Making Machine
Chemical Spraying And Folding For Tumble Dryer Sheets
Model AQ-F(200)
Non Woven Soft Towel Machine
Infrared Dual Count Folding And Perforating For Soft Towel Products
Model AQ-FR
Non Woven Folding Machine
Automatic Embossing And Folding At 300 To 500 Sheets Per Minute
Model AQ-F(150-1000)
Non Woven Printing And Folding Machine
In Line Printing And Folding At Up To 450 Pieces Per Minute
Model AQ-F(280)Non Woven Fabric Folding Machine FAQ
What fold patterns can this machine produce?
N fold, W fold, folding in half and other special shapes. The fold size range is 150 to 1000 mm.
How fast does it run?
300 to 500 sheets per minute at a folding size of 150 to 1000 mm, depending on material and fold complexity.
Is embossing included?
Yes. The machine has an automatic embossing function that produces clear patterns in line, so no separate embossing pass is needed.
What is the delivery time?
About 30 days after order confirmation for a standard configuration.
Get A Quotation For The AQ-F(150-1000)
Tell us your finished product size, fabric weight, output target and voltage, and we confirm the Non Woven Fabric Folding Machine specification, price and delivery.
