Non Woven Embossing And Folding Machine
Precision Embossing With Fold Types And Sizes Set On The Machine
What This Machine Does

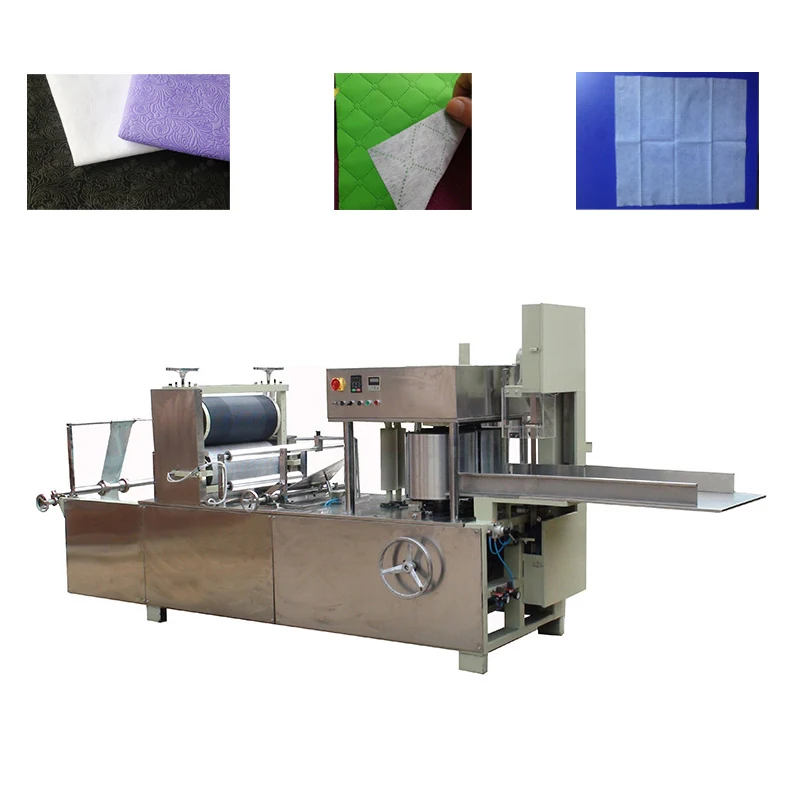

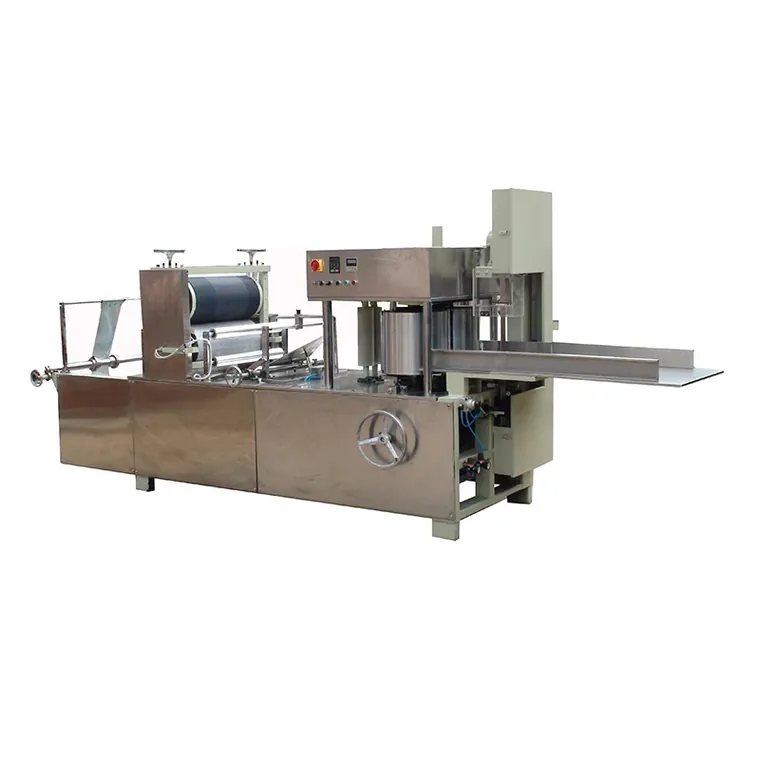

The AQ-F Non Woven Embossing And Folding Machine embosses a pattern into non woven and folds it in the same pass at up to 450 pieces per minute. Embossing pattern, fold type and material dimensions are adjustable, and each AQ-F machine is named for its fixed product length, with the AQ-F(280) producing 280 x 230 mm, 280 x 250 mm and 280 x 330 mm. Total power is 3.5 kW at 380 V with a machine size of about 3.85 x 1.05 x 1.75 m.
- Spunlace non woven
- Spunbond non woven
- Air laid webs
Why Buyers Choose This Model
Embossing raises the perceived quality and thickness of a plain non woven sheet
Pattern, fold type and size are settings, not tooling changes, for most jobs
3.5 kW installed power keeps running cost low on a high-count product
Compact footprint allows the machine to sit beside the packing line
Factories Running This Machine
- Wipe and hygiene converters
- Private label suppliers to supermarkets
- Cosmetic accessory manufacturers
- Factories adding value to plain non woven stock
What It Removes From Your Line
- Plain sheets that compete only on price
- Embossing done in a separate pass with extra handling
- Pattern depth that varies as the machine warms up
- Fold formats fixed by tooling
Where This Machine Is Used
- Embossed dry wipes for retail
- Textured cosmetic sheets
- Embossed hygiene products for private label
- Household cleaning cloth production
How The Machine Is Built

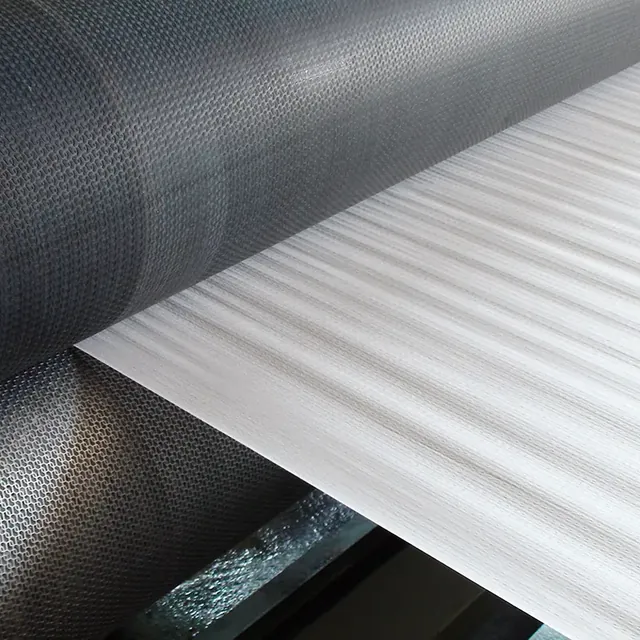

- High-precision embossing section, pattern depth range about 1.0 to 4.0 mm depending on tooling
- Production speed up to 450 pcs/min
- AQ-F(280) sizes: 280 x 230 mm, 280 x 250 mm, 280 x 330 mm
- Adjustable embossing patterns, fold types and material dimensions
- Total power 3.5 kW at 380 V
- Machine size about 3.85 x 1.05 x 1.75 m
| Machine Model | AQ-F |
|---|---|
| Warranty Period | 1 year |
| Delivery Time | about 25-35 days |
| Customization | Yes (as your requests) |
| HS Code | 8451500000 |
Production Sequence On This Line
Unwinding
Embossing

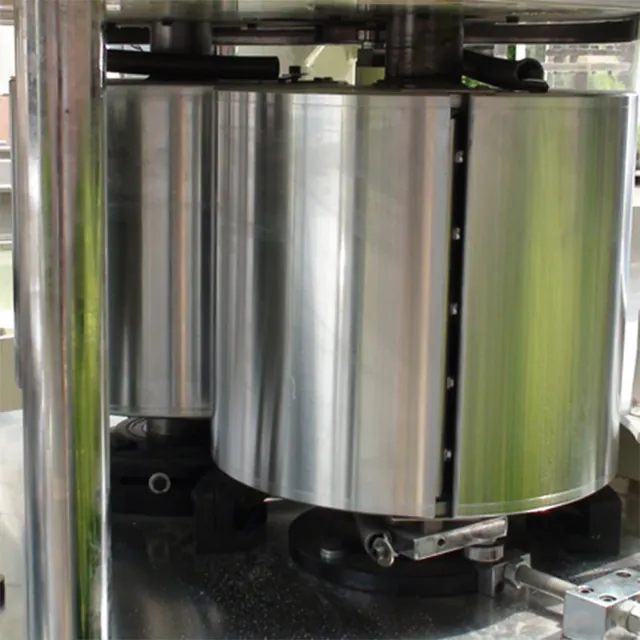

Folding

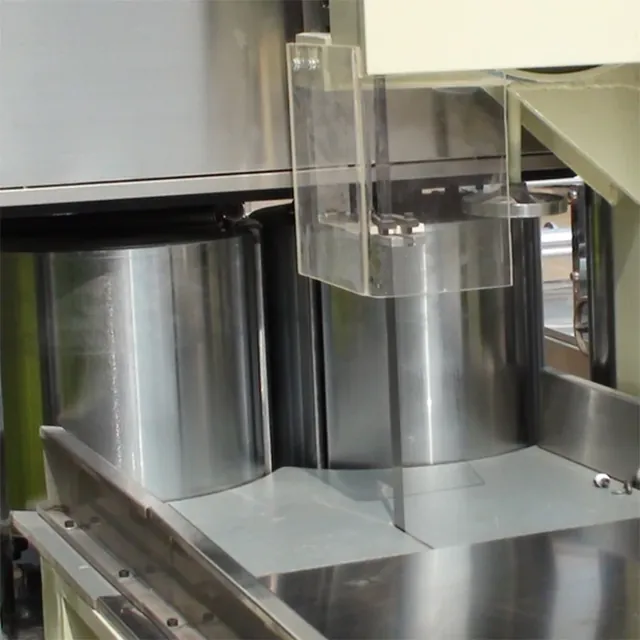

Cutting
Stacking
What We Check Before Shipment
- Embossing depth measured on your material at production speed
- Fold and cut dimensions checked across the batch
- Roller pressure recorded for each pattern before shipment
- Continuous run test before crating
What We Build To Your Specification
- Embossing roller engraved to your pattern
- Fixed product length chosen when ordering
- Fold type set to your pack format
- Voltage and frequency configured for your plant
Machine And Product Detail
Photographs taken in our own factory and of output produced on this machine family.
How This Model Compares
Compared With Non woven printing and folding machine
Printing puts ink on the surface, embossing presses texture into the web. Embossing survives wetting, print can smudge on a wet product.
Compared With Non woven folding machine AQ-F(150-1000)
The wide-range folder covers 150 to 1000 mm sizes. This model is a fixed-length build focused on embossing quality.
Setting The Machine For A Production Run
Fit the embossing roller for the pattern required
Set roller pressure for the material weight
Select the finished size within the machine's fixed length family
Run a test stack and check pattern depth and fold before production
Industries Using This Machine
Other Machines In This Family
Dryer Sheet Making Machine
Chemical Spraying And Folding For Tumble Dryer Sheets
Model AQ-F(200)
Non Woven Fabric Folding Machine
N Fold W Fold And Half Fold At 300 To 500 Sheets Per Minute
Model AQ-F(150-1000)
Non Woven Soft Towel Machine
Infrared Dual Count Folding And Perforating For Soft Towel Products
Model AQ-FR
Non Woven Folding Machine
Automatic Embossing And Folding At 300 To 500 Sheets Per Minute
Model AQ-F(150-1000)Non Woven Embossing And Folding Machine FAQ
Can we use our own embossing pattern?
Yes. Embossing patterns are customisable and the roller is engraved to your design.
What sizes does the AQ-F(280) produce?
280 x 230 mm, 280 x 250 mm and 280 x 330 mm, at up to 450 pieces per minute.
What is the installed power?
3.5 kW at 380 V, with a machine size of about 3.85 x 1.05 x 1.75 m.
Can fold type be changed later?
Fold types and material dimensions are adjustable on the machine. Tell us the formats you expect to run so we set the machine up for all of them.
Get A Quotation For The AQ-F(280)
Tell us your finished product size, fabric weight, output target and voltage, and we confirm the Non Woven Embossing And Folding Machine specification, price and delivery.
