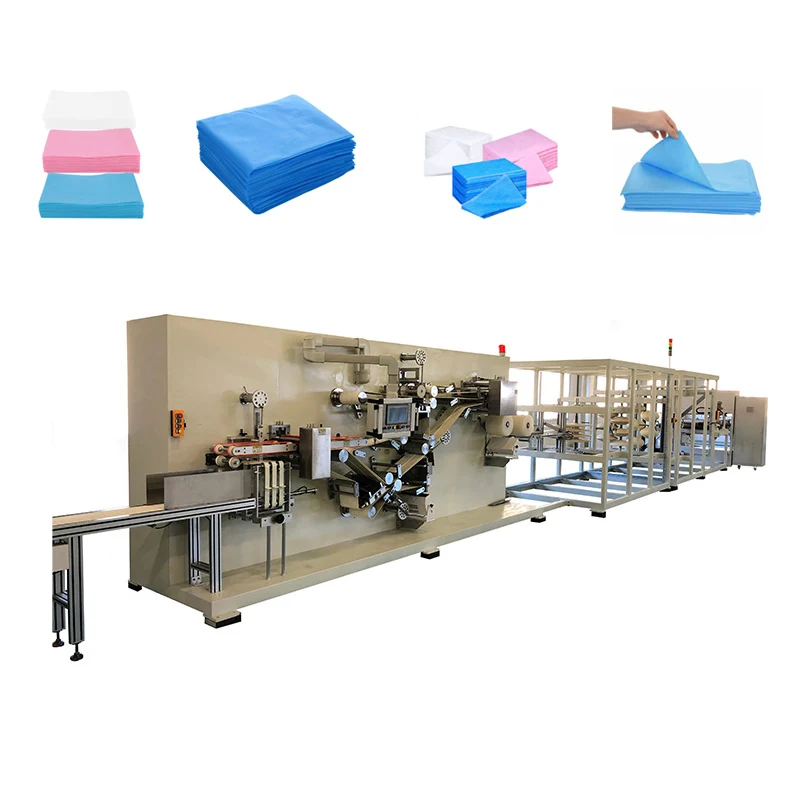

Non Woven Bed Sheet Folding Machine
Folding Disposable Bed Sheets To A Fixed Size At Up To 80 M Per Minute
What This Machine Does
The AQ-G(1200) Non Woven Bed Sheet Folding Machine folds disposable bed sheets to a fixed size at up to about 80 m/min, taking material up to 1.6 m and delivering folded sheets around 40 cm wide depending on the setting. Settings are adjustable for different sheet sizes and styles, the drive is built for heavy continuous use, and total power is about 8.5 kW at 380 V / 50 Hz with a machine weight of about 3400 kg.
- Spunbond non woven
- SMS non woven
- Spunlace non woven
Why Buyers Choose This Model
Fixed folded size lets the packing team work to one carton specification all shift
Up to about 80 m/min replaces a large manual folding team
Adjustable settings cover hotel, hospital and spa sheet formats
Heavy frame keeps the fold accurate over long production runs
Factories Running This Machine
- Disposable bedding converters
- Medical and hospitality supply manufacturers
- Exporters folding to a fixed carton specification
- Factories moving from manual folding
What It Removes From Your Line
- Folding by hand that cannot match packing speed
- Folded sizes that vary between operators and shifts
- Machines that only handle a single sheet format
- Downtime caused by light frames losing alignment
Where This Machine Is Used
- Hospital and clinic disposable bed sheet folding
- Hotel and resort bedding production
- Spa and massage couch sheet folding
- Contract folding for bedding distributors
How The Machine Is Built
- Maximum material width about 1.6 m
- Folding speed up to about 80 m/min
- Folded width about 40 cm depending on setting
- Customisable settings for bed sheet sizes and styles
- Total power about 8.5 kW at 380 V / 50 Hz
- Machine weight about 3400 kg
| Machine Model | AQ-G(1200) |
|---|---|
| Warranty Period | 1 year |
| Delivery Time | about 45 days |
| Customization | Yes (as your requests) |
| HS Code | 8451500000 |
Production Sequence On This Line
Unwinding
Tension control
Longitudinal folding
Cross folding
Stacking
What We Check Before Shipment
- Folded dimension checked at start, middle and end of a roll
- Fold squareness inspected at full speed
- Drive and transmission tested before crating
- Run-off on your sheet size before shipment
What We Build To Your Specification
- Folded size set to your carton specification
- Number of folds adjusted to your product
- Conveyor integration on request
- Voltage and frequency configured for your plant
Machine And Product Detail
Photographs taken in our own factory and of output produced on this machine family.
How This Model Compares
Compared With Non woven bed sheet making machine AQ-GF(1200)
The making machine adds cutting and counted stacking. This model concentrates on high-speed folding for factories that cut elsewhere.
Compared With Medical use bed sheets machine
Same working width family, but the medical build focuses on hygienic contact surfaces for clinical customers.
Setting The Machine For A Production Run
Load the roll within the 1.6 m width limit
Set the folding boards for the folded width required
Run a test batch and measure the folded sheet
Raise to production speed and monitor the first stacks
Industries Using This Machine
Other Machines In This Family
Medical Bed Cover Folding Machine
Ultrasonic Bonding And Three-Way Folding For Disposable Medical Bed Covers
Model AQ-B(2400)
Non Woven Spa Bed Sheets Rewinding Machine
Perforated Spa Bed Sheet Rolls With Hygienic Embossing And Air Knife Slitting
Model AQ-GF(1800)
Non Woven Bath Towel Folding Machine
Folding And Cutting Disposable Bath Towels From 20 To 80 GSM Non Woven
Model AQ-G(1500)
Medical Use Bed Sheets Machine
Disposable Hospital Bed Sheet Production On A 1200 mm Line
Model AQ-G(1200)Non Woven Bed Sheet Folding Machine FAQ
What is the folding speed?
Up to about 80 m per minute, depending on material weight and the number of folds.
What material width does it accept?
Material up to about 1.6 m wide, folded down to about 40 cm depending on the setting you choose.
Can settings be changed for different sheets?
Yes. The machine has customisable settings for bed sheet sizes and styles.
What power supply is needed?
About 8.5 kW at 380 V / 50 Hz. We configure the cabinet for your supply before shipment.
Get A Quotation For The AQ-G(1200)
Tell us your finished product size, fabric weight, output target and voltage, and we confirm the Non Woven Bed Sheet Folding Machine specification, price and delivery.
