Non Woven Bath Towel Folding Machine
Folding And Cutting Disposable Bath Towels From 20 To 80 GSM Non Woven
What This Machine Does
The AQ-G(1500) Non Woven Bath Towel Folding Machine folds and cuts disposable bath towels from non woven in the 20 to 80 gsm range. It takes raw material rolls up to 1000 mm diameter on a 76 mm core at a maximum web width of 1500 mm, and delivers uniformly folded towels ready for the packing table. The machine is built for continuous operation on a single product family, so folding accuracy stays the same from the first towel to the last.
- Spunlace non woven
- Spunbond non woven
- Needle punched non woven
Why Buyers Choose This Model
Handles the full 20 to 80 gsm non woven range, so you can move between economy and premium towels on one machine
Consistent fold geometry means the packing team can fill a fixed carton count without re-folding
Large 1000 mm raw material roll capacity means fewer roll changes per shift
Robust frame and precision folding boards keep the fold size stable through long production runs
Factories Running This Machine
- Hospitality disposable suppliers
- Non woven converters producing folded towel products
- Private label manufacturers for salon chains
- Factories replacing hand folding teams
What It Removes From Your Line
- Hand folding that produces uneven stacks and slows packing
- Fold size drift between operators and between shifts
- Frequent roll changes on machines limited to small diameter rolls
- Machines that only run one fabric weight well
Where This Machine Is Used
- Disposable bath and body towels for hotels and resorts
- Salon and barber towel production
- Gym, pool and spa single-use towel lines
- Airline and travel kit towel converting
How The Machine Is Built
- Maximum material width 1500 mm
- Fabric density range 20 to 80 gsm
- Maximum raw material roll diameter 1000 mm
- Raw material core inner diameter 76 mm
- Total power about 8 kW at 380 V
- Machine footprint about 8 m long, layout drawing supplied before shipment
| Machine Model | AQ-G(1500) |
|---|---|
| Warranty Period | 1 year |
| Delivery Time | about 45 days |
| Customization | Yes (as your requests) |
| HS Code | 8451500000 |
Production Sequence On This Line
Unwinding
Tension control
Longitudinal folding
Cross folding
Cutting
Stacking
What We Check Before Shipment
- Folded size measured at start, middle and end of a full roll
- Cutting blade squareness checked before crating
- Machine run on your fabric weight during factory run-off when a sample is sent
- Safety guarding and emergency stop tested before shipment
What We Build To Your Specification
- Folded towel size set to your carton specification
- Number of folds adjusted to the product
- Auxiliary equipment such as conveyors integrated on request
- Voltage and frequency configured for your plant

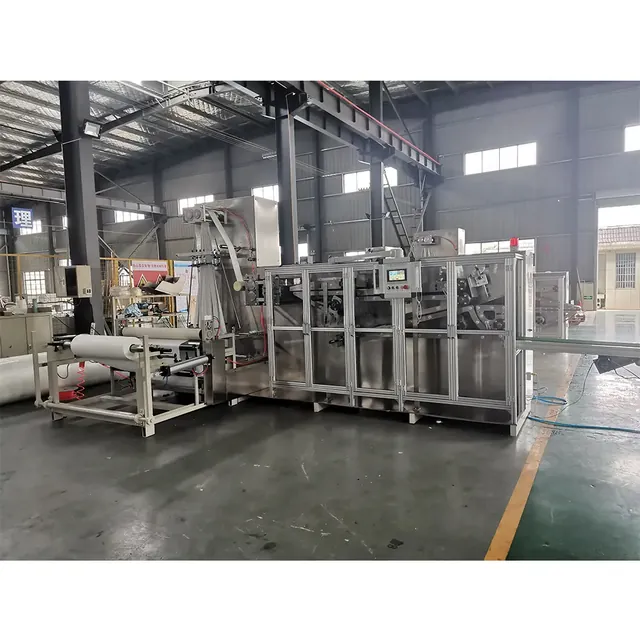

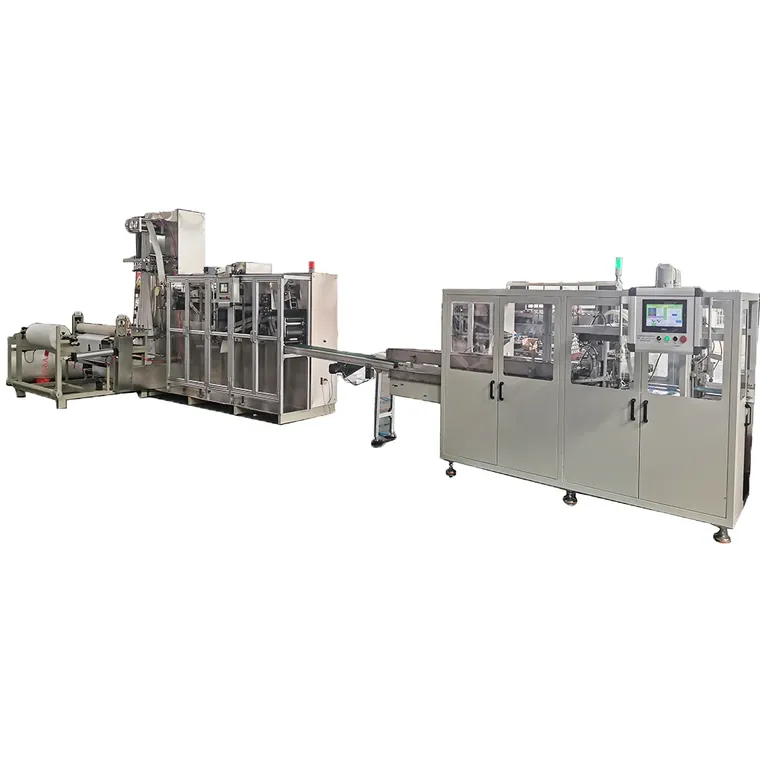

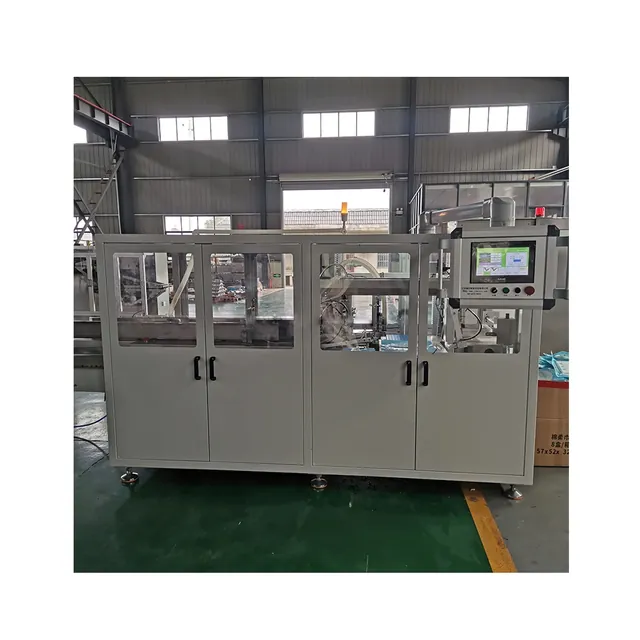

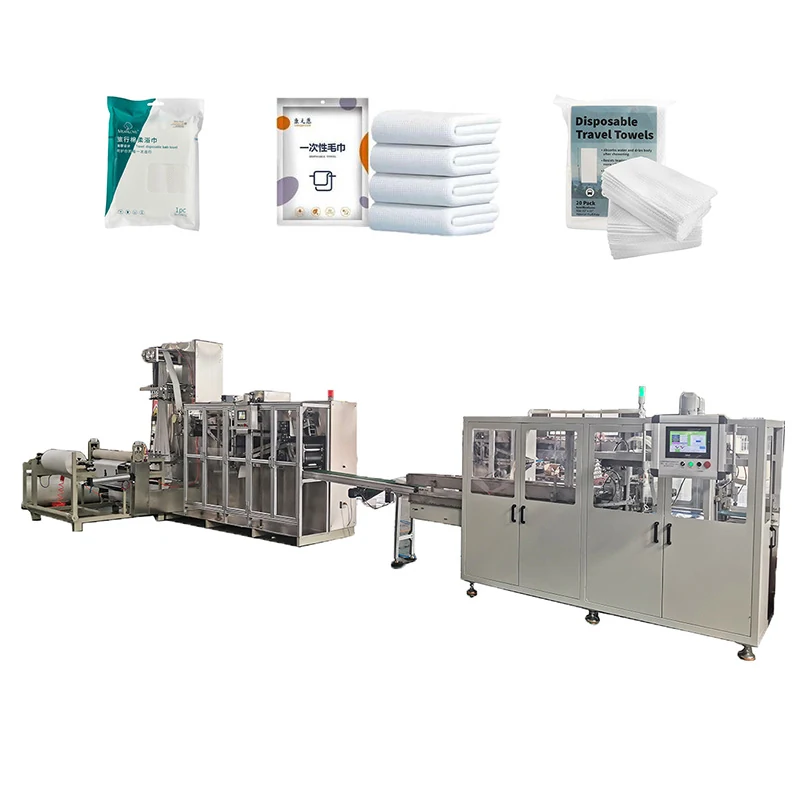

Machine And Product Detail
Photographs taken in our own factory and of output produced on this machine family.
How This Model Compares
Compared With Non woven bath towel making machine
The making machine forms the towel including embossing. This model concentrates on folding and cutting, which suits factories that already buy finished web.
Compared With Manual folding tables
A folding table depends on the operator. The AQ-G holds one fold geometry continuously and frees those operators for packing.
Setting The Machine For A Production Run
Mount the roll on the 76 mm core shaft and confirm diameter is within 1000 mm
Set the folding boards for the target towel size
Run five towels and measure folded length and width
Adjust cutting length if needed, then start the production run
Industries Using This Machine
Other Machines In This Family
Medical Bed Cover Folding Machine
Ultrasonic Bonding And Three-Way Folding For Disposable Medical Bed Covers
Model AQ-B(2400)
Non Woven Spa Bed Sheets Rewinding Machine
Perforated Spa Bed Sheet Rolls With Hygienic Embossing And Air Knife Slitting
Model AQ-GF(1800)
Medical Use Bed Sheets Machine
Disposable Hospital Bed Sheet Production On A 1200 mm Line
Model AQ-G(1200)
Non Woven Bath Towel Making Machine
Complete Disposable Bath Towel And Bed Sheet Making Line
Model AQ-G(1500)Non Woven Bath Towel Folding Machine FAQ
What fabric weight can it fold?
The machine converts non woven with a density of 20 to 80 gsm. Heavier or lighter material should be sampled with us before ordering.
What is the maximum roll size it accepts?
Maximum material width is 1500 mm and maximum raw material roll diameter is 1000 mm on a 76 mm inner core.
How much space does the line need?
The folding and cutting machine is about 8 m long. We send a dimensioned layout drawing so you can plan the floor before delivery.
What is the lead time?
Delivery is about 45 days after order confirmation, including factory run-off on your specified towel size.
Get A Quotation For The AQ-G(1500)
Tell us your finished product size, fabric weight, output target and voltage, and we confirm the Non Woven Bath Towel Folding Machine specification, price and delivery.
