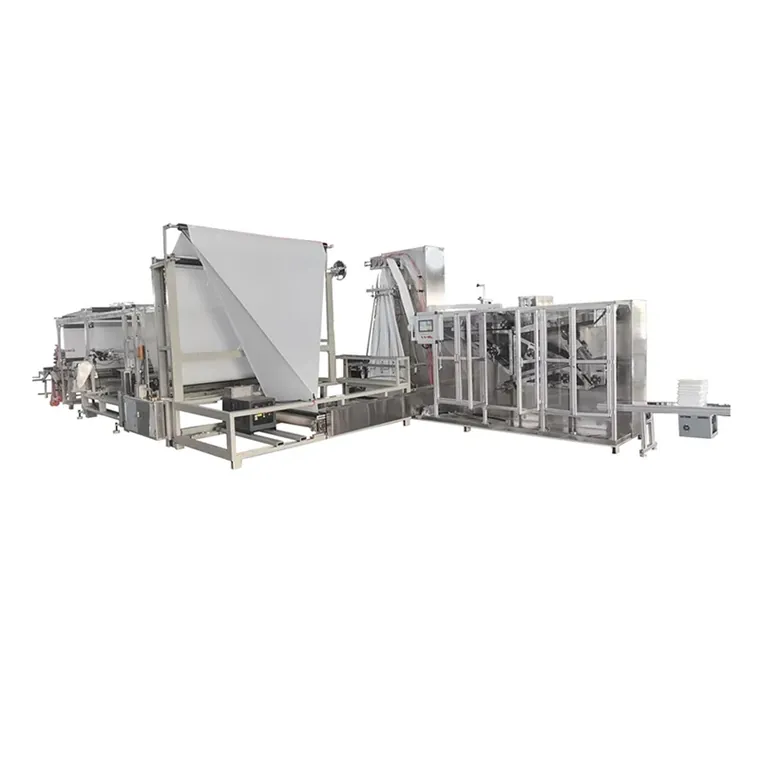

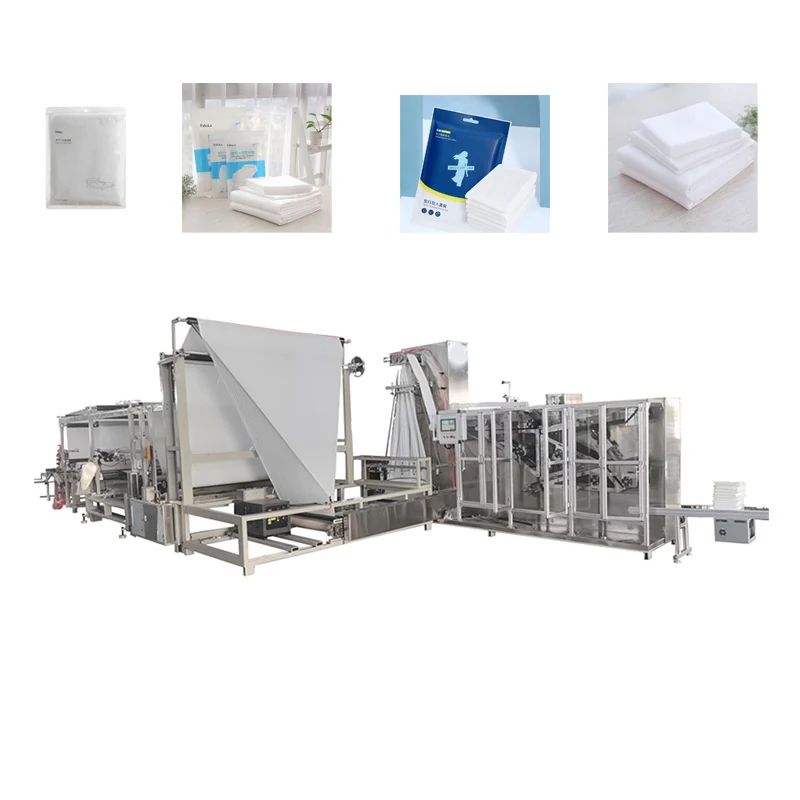

Non Woven Bed Cover Making Machine
Six Servo PLC Control For Ultrasonic Bonded Bed Covers
What This Machine Does
The AQ-B(2400) Non Woven Bed Cover Making Machine produces disposable bed covers for hospitals, hotels and nursing homes using 14 sets of high-power screen-following ultrasonic moulds. Six servos work with a PLC controller and microcomputer display screen to control production, an imported cutter under servo control trims the cover, and the machine shell is stainless steel. A magnetic powder tension controller with synchronous conveying holds folded dimensions accurate.
- Spunbond non woven
- SMS non woven
- PE laminated non woven
Why Buyers Choose This Model
Six servos under PLC control keep bonding, cutting and folding in step at production speed
Screen-following ultrasonic moulds bond the cover without thread, which matters for a hygiene product
Servo edge punching produces a quilt cover style banded edge in line
Stainless steel shell and hygienic layout support hospital and hotel supply audits
Factories Running This Machine
- Medical bedding manufacturers
- Hospitality disposable suppliers
- Institutional supply exporters
- Converters moving from sewn to ultrasonic bonded covers
What It Removes From Your Line
- Sewn covers that need operators, thread and needle inspection
- Folded size drift through a long roll
- Fold patterns that cannot be changed without mechanical rework
- Cutting quality that falls off as blades wear
Where This Machine Is Used
- Disposable bed covers for hospitals and nursing homes
- Hotel and hostel single-use bedding
- Quilt cover style disposable bedding
- Emergency and relief bedding production
How The Machine Is Built
- Effective width 2400 mm, raw material roll up to 1000 mm diameter
- 14 sets of high-power ultrasonic screen-following moulds
- 1 set of servo-controlled edge punching moulds, quilt cover edge banding type
- Six servos with PLC controller and microcomputer display screen
- Servo-controlled imported cutter and slider-type lateral fork knife, up to three lateral folds
- Stainless steel machine shell, 8 kW at 380 V / 50 Hz, about 6500 x 2700 x 5500 mm
| Machine Model | AQ-B(2400) |
|---|---|
| Warranty Period | 1 year |
| Delivery Time | about 25-35 days |
| Customization | Yes (as your requests) |
| HS Code | 8451500000 |
Production Sequence On This Line
Unwinding
Tension control
Ultrasonic bonding
Edge punching
Servo cutting
Folding
Stacking
What We Check Before Shipment
- Ultrasonic weld strength tested on your fabric
- Folded dimensions measured through a full roll
- Servo synchronisation verified at production speed
- Electrical cabinet tested at your voltage before crating
What We Build To Your Specification
- Cover size and folded dimensions to your specification
- Edge banding style configured for quilt cover products
- Number of folds set on the lateral fork knife
- Voltage and frequency configured for your plant
Machine And Product Detail

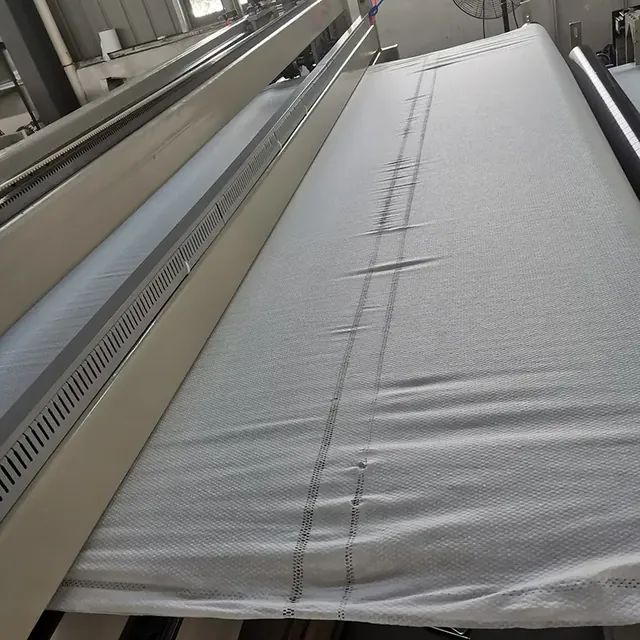

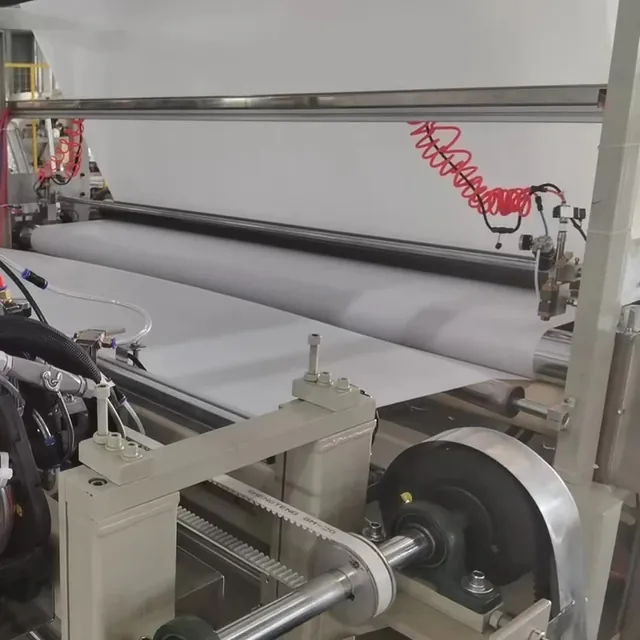

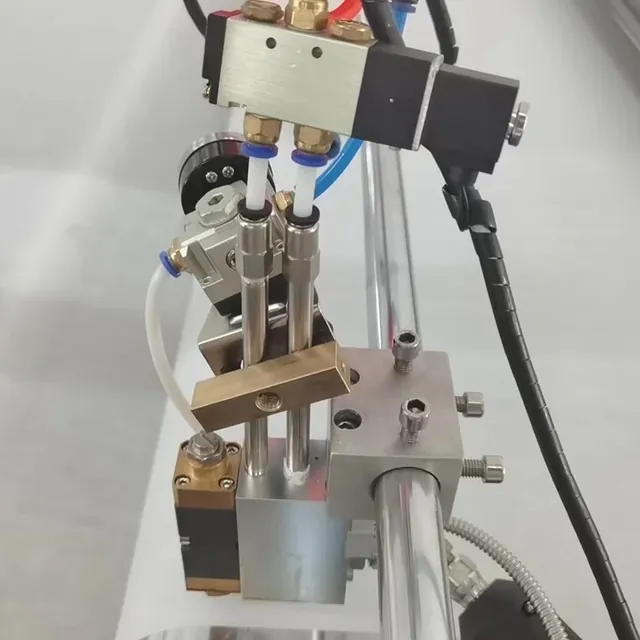

Photographs taken in our own factory and of output produced on this machine family.
How This Model Compares
Compared With Medical bed cover folding machine
Same AQ-B platform. This build emphasises the full making line with servo cutting and PLC control for mixed hospital and hotel products.
Compared With Non woven bed sheet making machine
Bed sheets are flat and simpler. Bed covers need ultrasonic forming and edge banding, which this machine provides.
Setting The Machine For A Production Run
Load the roll and set the magnetic powder tension controller
Select the product programme on the microcomputer display
Set the folding method on the multi-function special-shaped folder
Run a test batch, measure folded size, then produce
Customised Non Woven Bed Cover Production With Indian Collaborators
The finished cover required a quilt cover style banded edge and a folded size that had to stay accurate across a full jumbo roll, on a machine that could also convert between folding methods as their customer mix changed.
Read The Case Study
Industries Using This Machine
Other Machines In This Family
Medical Bed Cover Folding Machine
Ultrasonic Bonding And Three-Way Folding For Disposable Medical Bed Covers
Model AQ-B(2400)
Non Woven Spa Bed Sheets Rewinding Machine
Perforated Spa Bed Sheet Rolls With Hygienic Embossing And Air Knife Slitting
Model AQ-GF(1800)
Non Woven Bath Towel Folding Machine
Folding And Cutting Disposable Bath Towels From 20 To 80 GSM Non Woven
Model AQ-G(1500)
Medical Use Bed Sheets Machine
Disposable Hospital Bed Sheet Production On A 1200 mm Line
Model AQ-G(1200)Non Woven Bed Cover Making Machine FAQ
How is production controlled?
Six servos work with a PLC programming controller and a microcomputer display screen to control the machine together.
What is the working width?
2400 mm effective width, taking raw material rolls up to 1000 mm diameter.
What are the machine dimensions and power?
About 6500 x 2700 x 5500 mm with a total power of 8 kW at 380 V / 50 Hz.
Is the machine suitable for hotel as well as hospital products?
Yes. It is used for bed covers supplied to hospitals, hotels and nursing homes, with the fold pattern set per product.
Get A Quotation For The AQ-B(2400)
Tell us your finished product size, fabric weight, output target and voltage, and we confirm the Non Woven Bed Cover Making Machine specification, price and delivery.
