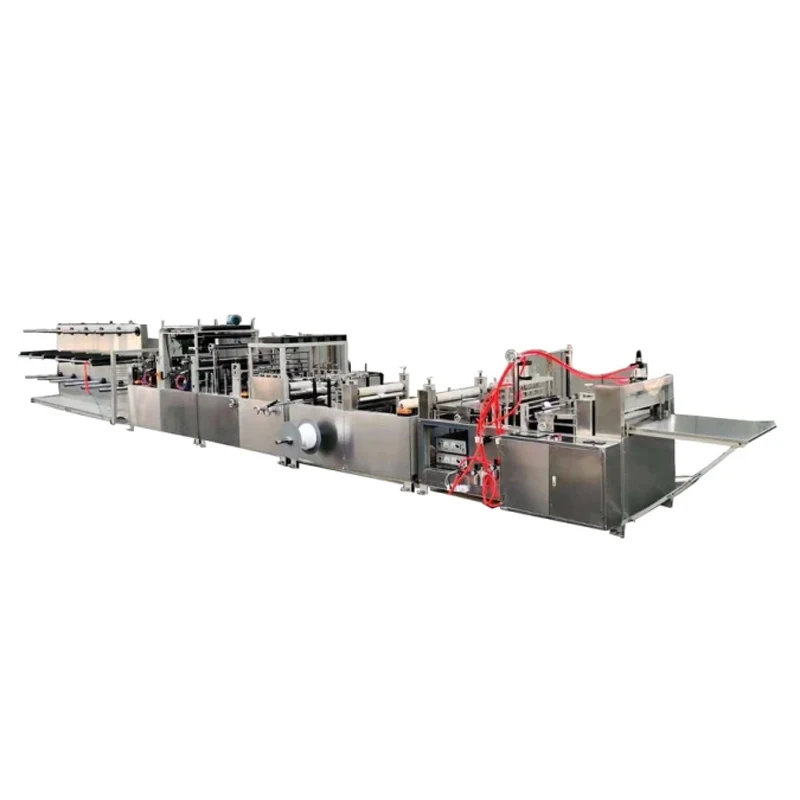

Dust Bag Machine (700)
Wide Format Dust Bag Production Up To 700 mm
What This Machine Does
The AQ-(700) Dust Bag Machine is the widest build in our dust bag range, producing bags up to the 700 mm class for larger household and industrial vacuum equipment. It uses the same proven configuration as the smaller models: ten feeding groups with mechanical tension control and manual web guiding, automatic balance conveying, a bag edge folding system with stainless steel edge forming moulds and two press rollers, and 75 mm hard anodised aluminium guide rollers.
- Spunbond non woven
- Melt blown filter media
- Needle punched media
Why Buyers Choose This Model
700 mm capacity covers industrial and commercial vacuum bag formats smaller machines cannot reach
Ten feeding groups allow heavy multi-layer filtration structures for industrial dust
Ultrasonic seals hold under the higher suction of industrial machines
Shared platform with the 200 and 500 models means common spares across your bag lines
Factories Running This Machine
- Industrial cleaning equipment suppliers
- Dust extraction system manufacturers
- Aftermarket bag producers serving commercial fleets
- Filter media converters moving into large formats
What It Removes From Your Line
- Bag width limited by the machine rather than by the customer
- Seams that fail under industrial suction pressure
- Multi-layer media that shifts during assembly
- Separate machines needed for household and industrial formats
Where This Machine Is Used
- Industrial vacuum and dust extractor bags
- Commercial cleaning equipment consumables
- Large capacity household vacuum bags
- Workshop dust collection bag production
How The Machine Is Built
- AQ-(700) wide format build, bags up to the 700 mm class
- 10 groups of raw material feeding devices with mechanical tension control
- Manual web guiding devices and quick feeding wrench
- Automatic balance material conveying with edge folding system
- Stainless steel edge forming moulds with 2 press rollers
- 75 mm hard anodised aluminium guiding rollers, 7.5 kW at 220 V / 50 Hz, about 3500 kg
| Machine Model | AQ-(700) |
|---|---|
| Warranty Period | 1 year |
| Delivery Time | about 35 days |
| Customization | Yes (as your requests) |
| HS Code | 8451500000 |
Production Sequence On This Line
Multi-layer feeding
Tension control
Ultrasonic bonding
Edge folding
Mouth binding
Cutting
What We Check Before Shipment
- Seal strength tested against industrial suction requirements
- Layer alignment checked at full width
- Edge forming quality inspected on finished bags
- Electrical and pneumatic testing before shipment
What We Build To Your Specification
- Bag size within the 700 mm class
- Number of active feeding groups set to your filtration structure
- Embossing engraved to your artwork
- Voltage and frequency configured for your plant

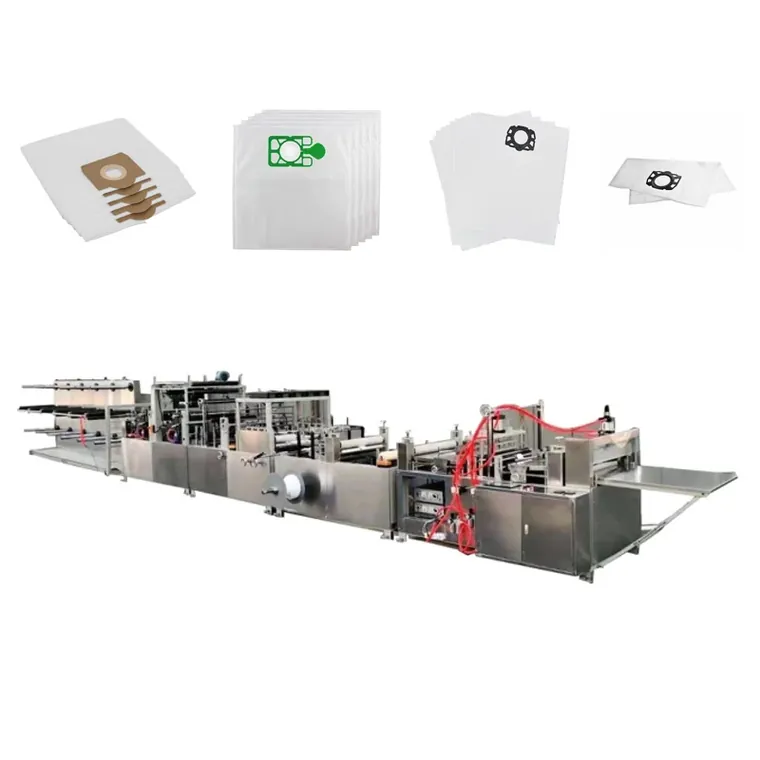

Machine And Product Detail
Photographs taken in our own factory and of output produced on this machine family.
How This Model Compares
Compared With Dust bag machine 500
The 500 class covers household formats. The 700 build handles larger industrial bags on the same platform.
Compared With Pocket filter bag making machine
The pocket machine builds deep multi-pocket HVAC filters. This machine builds wide flat dust bags.
Setting The Machine For A Production Run
Load media into the required feeding groups and set tension per layer
Set mould width with the screw rod and lock with the hand lever
Run a test bag and check seal strength under suction
Start production and inspect at each roll change
Industries Using This Machine
Other Machines In This Family
Non Woven Dust Bag Machine
Ultrasonic Bonded Vacuum Cleaner Dust Bags With Ten Feeding Groups
Model AQ-(500-700)
Pocket Filter Bag Making Machine
Ultrasonic Pocket Filter Bag Production Driven By Six Servo Motors
Model AQ-(600-1000)
Dust Bag Machine (200)
Compact Dust Bag Line For 200 mm Class Vacuum Bags
Model AQ-(200)
Dust Bag Machine (500)
Mid Format Vacuum Dust Bag Line With Ultrasonic Sealing
Model AQ-(500)Dust Bag Machine (700) FAQ
How large a bag can this model make?
The AQ-(700) covers the 700 mm bag class, the widest in our dust bag range.
Is it suitable for industrial vacuum bags?
Yes. The wide format and multi-layer feeding suit industrial dust extraction bags as well as large household formats.
What power and weight should we plan for?
7.5 kW at 220 V / 50 Hz and about 3500 kg.
Can one team run several of your dust bag models?
Yes. The 200, 500 and 700 machines share the same operating principle and many common parts.
Get A Quotation For The AQ-(700)
Tell us your finished product size, fabric weight, output target and voltage, and we confirm the Dust Bag Machine (700) specification, price and delivery.
