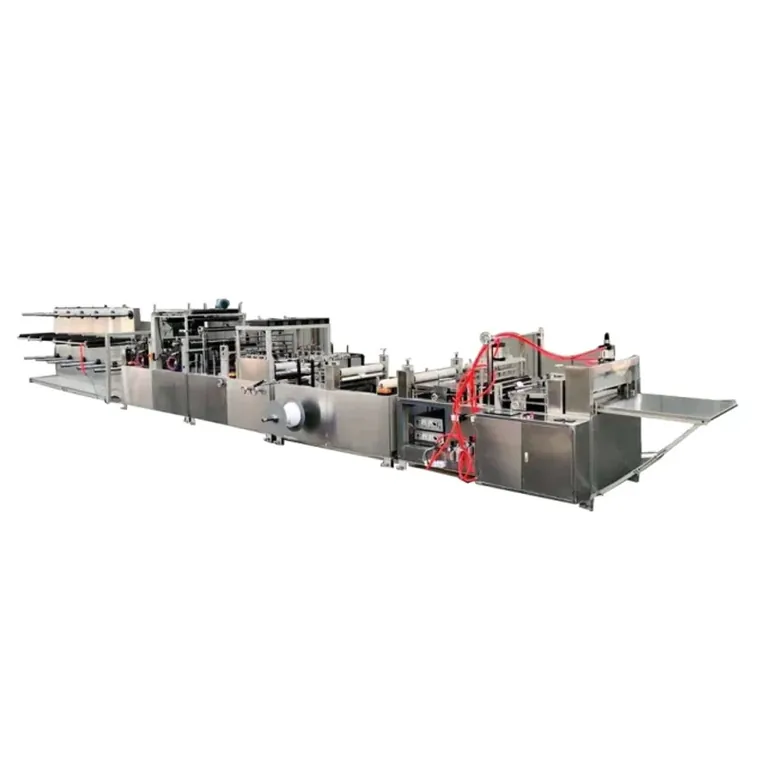

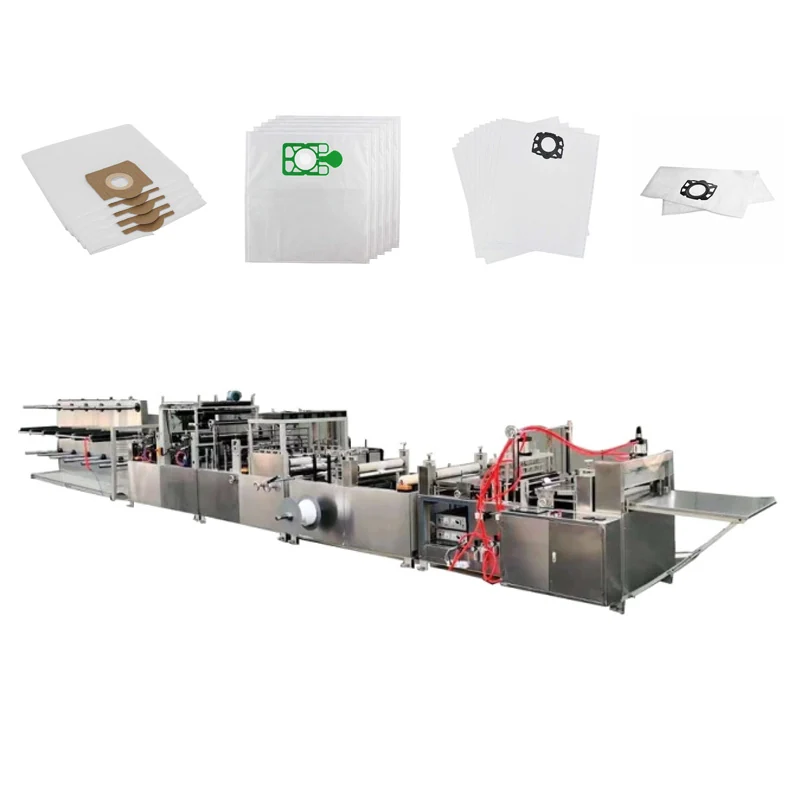

Dust Bag Machine (500)
Mid Format Vacuum Dust Bag Line With Ultrasonic Sealing
What This Machine Does
The AQ-(500) Dust Bag Machine produces mid-format vacuum cleaner dust bags around the 500 mm class. Ten groups of raw material feeding devices with mechanical tension control, manual web guiding and a quick feeding wrench build multi-layer bags, and an automatic balance conveying system feeds the edge folding station where stainless steel edge forming moulds and two press rollers shape the bag edge. All guiding rollers are hard anodised aluminium at 75 mm diameter.
- Spunbond non woven
- Melt blown filter media
- Paper and non woven laminates
Why Buyers Choose This Model
Consistent ultrasonic sealing keeps dust bags airtight through the whole service life
The 500 mm class covers most household canister and upright vacuum formats
Computer-engraved embossing moulds reproduce your brand pattern on every bag
Screw rod width adjustment with fast hand lever keeps model changeovers short
Factories Running This Machine
- Appliance accessory manufacturers
- Aftermarket vacuum bag brands
- Filter media converters
- OEM suppliers to vacuum cleaner makers
What It Removes From Your Line
- Dust escaping at glued or sewn seams
- Bags that burst at the mouth under suction
- Slow, error-prone multi-layer alignment
- Bulky edges that cause packing jams
Where This Machine Is Used
- Household vacuum cleaner dust bags
- Aftermarket replacement bag production
- Commercial cleaning equipment bags
- Multi-layer bags combining melt blown and spunbond media
How The Machine Is Built
- AQ-(500) mid format build
- 10 groups of raw material feeding devices with mechanical tension control and manual web guiding
- Quick feeding wrench for fast roll loading
- Automatic balance conveying with bag edge folding system
- Stainless steel edge forming moulds with 2 press rollers
- Hard anodised aluminium guide rollers 75 mm diameter, 7.5 kW at 220 V / 50 Hz, about 3500 kg
| Machine Model | AQ-(500) |
|---|---|
| Warranty Period | 1 year |
| Delivery Time | about 35 days |
| Customization | Yes (as your requests) |
| HS Code | 8451500000 |
Production Sequence On This Line
Multi-layer feeding
Tension control
Ultrasonic bonding
Edge folding
Mouth binding
Cutting
What We Check Before Shipment
- Seal integrity and burst resistance checked on finished bags
- Layer registration verified across the feeding groups
- Edge flatness measured after the press rollers
- Full electrical and pneumatic test before crating
What We Build To Your Specification
- Bag size within the 500 mm class
- Embossing figures engraved on the computer to your artwork
- Mouth binding for cardboard or plastic collars
- Voltage and frequency set to your plant

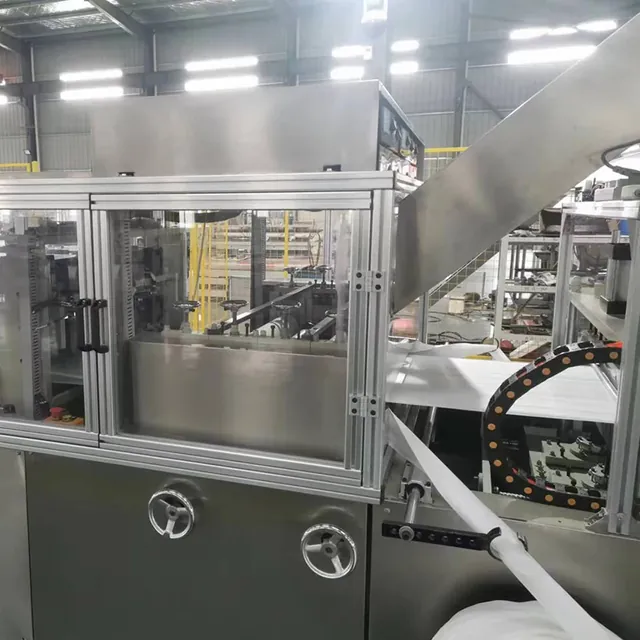

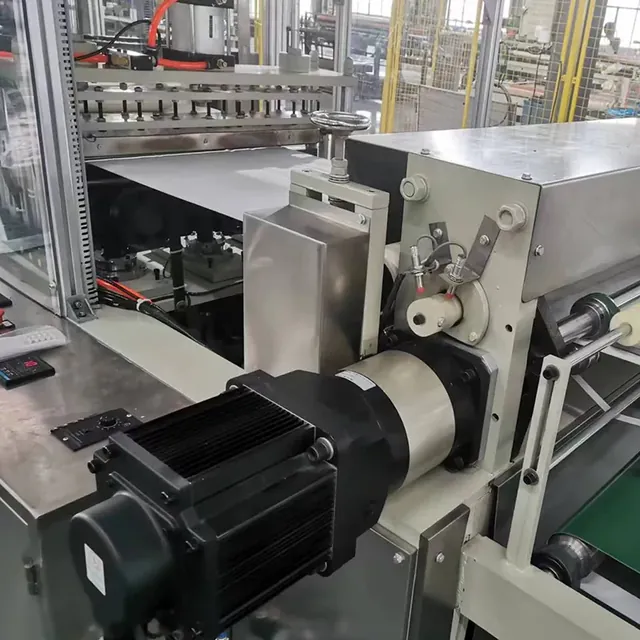

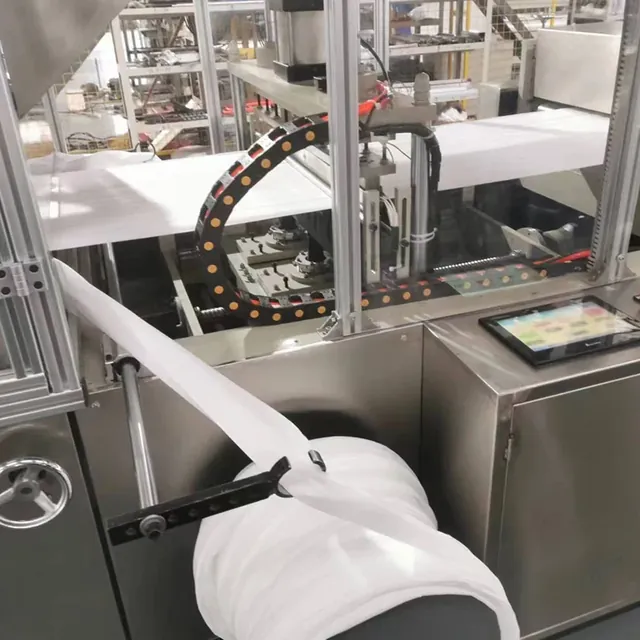

Machine And Product Detail
Photographs taken in our own factory and of output produced on this machine family.
How This Model Compares
Compared With Dust bag machine 200
Same platform, smaller bag class. Choose by the finished bag width you sell most of.
Compared With Dust bag machine 700
The 700 build takes wider bags for larger industrial vacuums. The 500 class covers common household formats.
Setting The Machine For A Production Run
Load each media roll into its feeding group and set tension
Position bonding and sealing moulds with the screw rod and hand lever
Run a test bag and check the seal and edge
Start production, checking the first bags after each roll change
Industries Using This Machine
Other Machines In This Family
Non Woven Dust Bag Machine
Ultrasonic Bonded Vacuum Cleaner Dust Bags With Ten Feeding Groups
Model AQ-(500-700)
Pocket Filter Bag Making Machine
Ultrasonic Pocket Filter Bag Production Driven By Six Servo Motors
Model AQ-(600-1000)
Dust Bag Machine (200)
Compact Dust Bag Line For 200 mm Class Vacuum Bags
Model AQ-(200)
Dust Bag Machine (700)
Wide Format Dust Bag Production Up To 700 mm
Model AQ-(700)Dust Bag Machine (500) FAQ
What bag sizes does this model make?
The AQ-(500) is built around the 500 mm bag class. Tell us your finished bag dimensions and we confirm the matching model.
How many feeding groups are fitted?
Ten, each with mechanical tension control, manual web guiding and access through the quick feeding wrench.
What is the installed power and weight?
7.5 kW at 220 V / 50 Hz, with a machine weight of about 3500 kg.
Can the machine emboss our pattern?
Yes. All moulds are made from special materials and the embossing figures are engraved on the computer.
Get A Quotation For The AQ-(500)
Tell us your finished product size, fabric weight, output target and voltage, and we confirm the Dust Bag Machine (500) specification, price and delivery.
