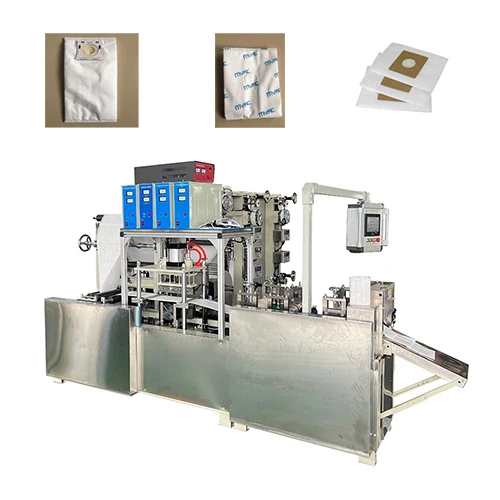

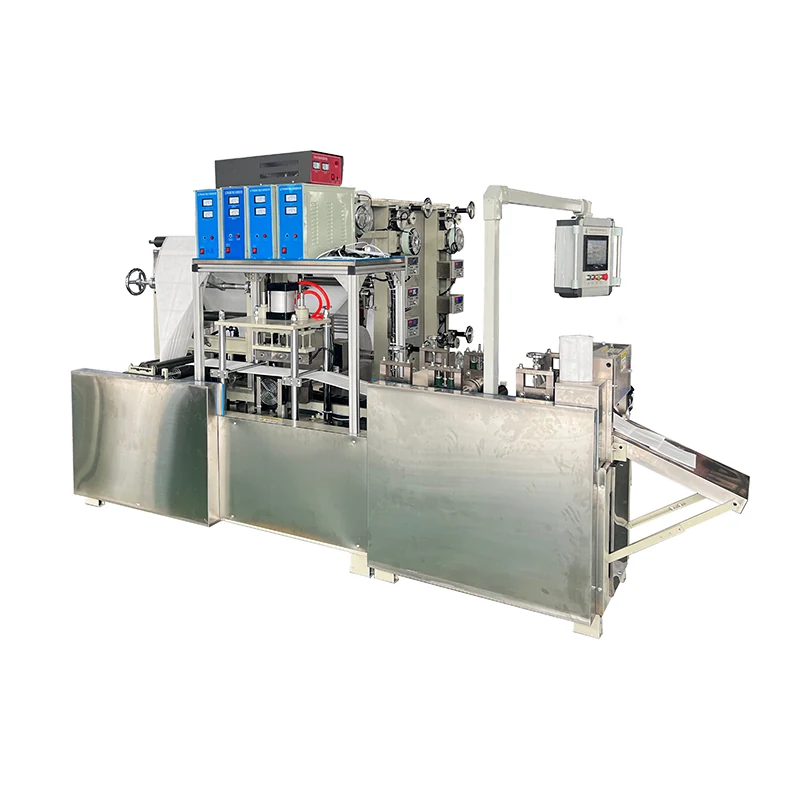

Dust Bag Machine (200)
Compact Dust Bag Line For 200 mm Class Vacuum Bags
What This Machine Does
The AQ-(200) Dust Bag Machine produces vacuum cleaner dust bags in the smaller 200 mm class using the same bonding platform as our wider dust bag lines. Ten groups of raw material feeding devices with mechanical tension control and manual web guiding build multi-layer bags, an automatic balance conveying system feeds the edge folding station, and stainless steel edge forming moulds with two press rollers set the bag edge flat. Guiding rollers are hard anodised aluminium at 75 mm diameter.
- Spunbond non woven
- Melt blown filter media
- Paper and non woven laminates
Why Buyers Choose This Model
Airtight ultrasonic sealing keeps fine dust inside the bag through the whole service life
Ten feeding groups support multi-layer media combinations on a compact machine
Quick feeding wrench and hand lever positioning make model changes fast
Hard anodised guide rollers resist wear from abrasive filter media
Factories Running This Machine
- Appliance accessory manufacturers
- Aftermarket dust bag suppliers
- Filter media converters entering bag assembly
- Factories needing a second, smaller bag line
What It Removes From Your Line
- Large bag machines used inefficiently for small formats
- Layer misalignment when several media are combined
- Bulky bag edges that jam downstream packing
- Seams that leak fine dust and fail customer tests
Where This Machine Is Used
- Small format vacuum cleaner dust bags
- Replacement bag production for handheld and canister vacuums
- Aftermarket bag manufacturing for appliance brands
- Multi-layer filter bag production in a compact footprint
How The Machine Is Built
- AQ-(200) format for small class dust bags
- 10 groups of raw material feeding devices with mechanical tension control and manual web guiding
- Quick feeding wrench for fast roll loading
- Automatic balance material conveying system with bag edge folding
- Stainless steel edge forming moulds with 2 press rollers
- Hard anodised aluminium guiding rollers of 75 mm diameter, 7.5 kW at 220 V / 50 Hz, about 3500 kg
| Machine Model | AQ-(200) |
|---|---|
| Warranty Period | 1 year |
| Delivery Time | about 35 days |
| Customization | Yes (as your requests) |
| HS Code | 8451500000 |
Production Sequence On This Line
Multi-layer feeding
Tension control
Ultrasonic bonding
Edge folding
Mouth binding
Cutting
What We Check Before Shipment
- Seal integrity checked on finished bags
- Layer registration verified across all feeding positions
- Edge flatness inspected after the press rollers
- Electrical and pneumatic testing before crating
What We Build To Your Specification
- Bag size within the 200 mm class
- Embossing figures engraved on the computer to your artwork
- Bag mouth binding style for your collar type
- Voltage and frequency set to your plant
Machine And Product Detail

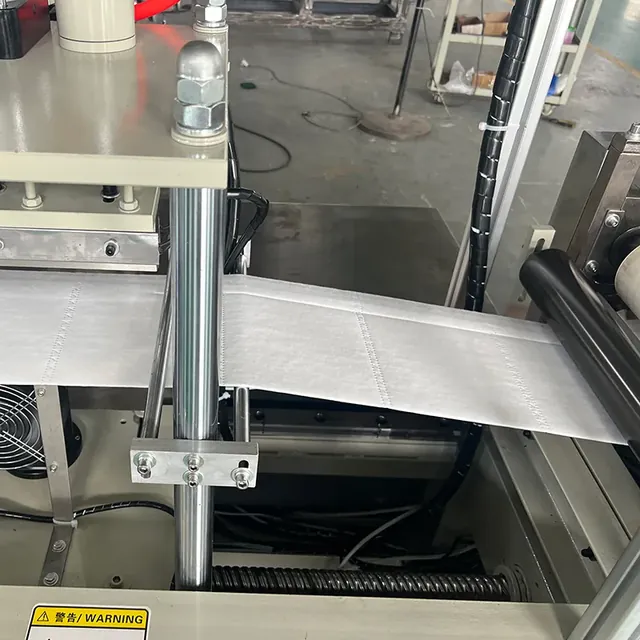

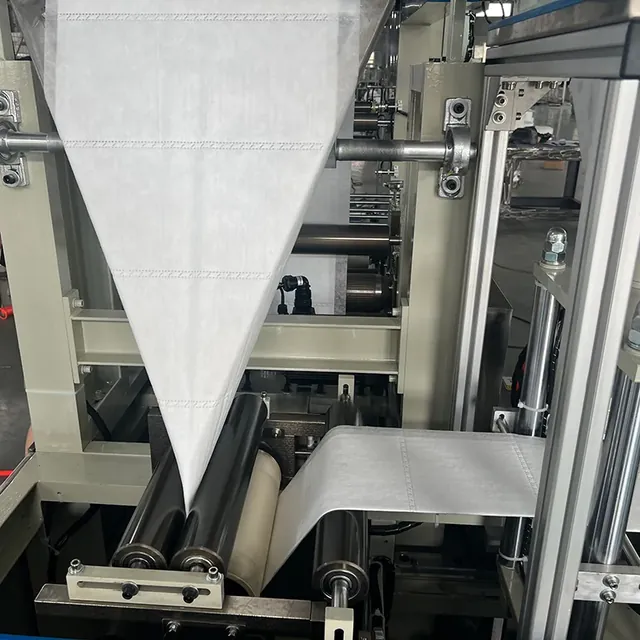

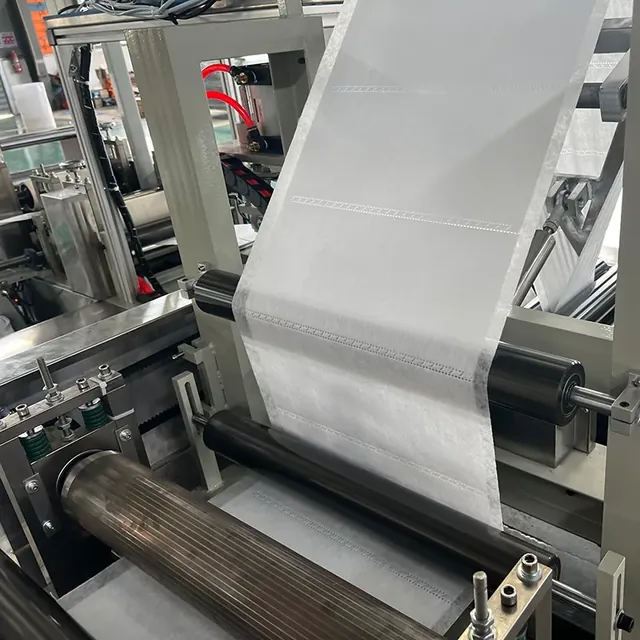

Photographs taken in our own factory and of output produced on this machine family.
How This Model Compares
Compared With Dust bag machine 500 and 700
Same platform, larger bag formats. Choose the model by the finished bag width you sell most of.
Compared With Pocket filter bag making machine
The pocket machine builds deep multi-pocket HVAC filters. This machine builds flat vacuum dust bags.
Setting The Machine For A Production Run
Load each media roll into its feeding group and set mechanical tension
Position the bonding and sealing moulds with the fast hand lever
Run a test bag, check seal and edge flatness
Start production and re-check at every roll change
Industries Using This Machine
Other Machines In This Family
Non Woven Dust Bag Machine
Ultrasonic Bonded Vacuum Cleaner Dust Bags With Ten Feeding Groups
Model AQ-(500-700)
Pocket Filter Bag Making Machine
Ultrasonic Pocket Filter Bag Production Driven By Six Servo Motors
Model AQ-(600-1000)
Dust Bag Machine (500)
Mid Format Vacuum Dust Bag Line With Ultrasonic Sealing
Model AQ-(500)
Dust Bag Machine (700)
Wide Format Dust Bag Production Up To 700 mm
Model AQ-(700)Dust Bag Machine (200) FAQ
How many media layers can it combine?
Ten groups of raw material feeding devices are fitted, each with its own mechanical tension control and manual web guiding.
What is the installed power?
7.5 kW at 220 V / 50 Hz, with a machine weight of about 3500 kg.
How are the bag edges formed?
A bag edge folding system with a set of stainless steel edge forming moulds and 2 press rollers shapes the folded edge flat.
Can you make our bag pattern?
Yes. All moulds are made from special materials and the embossing figures are engraved on the computer to your design.
Get A Quotation For The AQ-(200)
Tell us your finished product size, fabric weight, output target and voltage, and we confirm the Dust Bag Machine (200) specification, price and delivery.
