XIS-5030C X-Ray Baggage Scanner
The XIS-5030C fits a 140 kV generator into the compact 50 x 30 cm tunnel, penetrating 34 mm of steel where the 5030A reaches 11 mm. Four layers of lead curtains and sealed oil plus external air cooling let it run continuously at low energy, and the 500 GB host holds over 2.5 million images.
Key benefits
- 34 mm steel penetration from a 140 kV generator at 0.3 mA
- Compact 50 x 30 cm tunnel for common luggage sizes
- Four layers of lead curtains at entrance and exit
- Sealed oil cooling plus external air cooling for low energy use and long life
- Over 2.5 million images on a 500 GB drive
Problems it solves
- A compact scanner usually means low penetration
- Continuous running shortens generator life without proper cooling
- Two-layer shielding does not satisfy some site requirements
- Operators cannot analyse an image without fine adjustment tools
Who it is for
- Operators who need penetration in a small footprint
- Sites where four-layer shielding is specified
- Facilities running the scanner continuously through a shift
Application scenarios
- Airports, subway and train stations
- Government facilities
- Major event entrances
- Checkpoints with limited space but dense contents
Technical features
- Colour, greyscale, inverse, composite, high and low penetration modes
- Enhancement, attenuation, local enhancement, edge enhancement and reduction
- Brightening, darkening and organic/inorganic differentiation with mouse-wheel zoom
- Boot self-check, automatic calibration, TIP management and curve diagnostics
- One-key shutdown by rotating a key
- DC 24 V silent linear roller, 0 to 0.25 m/s
Specifications
| Tunnel Size | 50 cm wide x 30 cm high |
|---|---|
| Conveyor Speed | 0.23 m/s, adjustable 0 to 0.25 m/s |
| Maximum Load | 100 kg |
| Penetration | up to 34 mm steel plate |
| Wire Resolution | 0.0787 mm metal wire |
| Penetration Resolution | 0.127 mm metal wire |
| Spatial Resolution | 1.0 mm |
| Tube Voltage | 140 kV |
| Tube Current | 0.3 mA |
| Cooling | Sealed oil cooling plus external air cooling |
| Single Inspection Dose | less than 1 microgray |
| Leakage Dose Rate | less than 1 microsievert/h at 10 cm |
| Lead Curtains | Four layers at entrance and exit |
| Storage | 500 GB, over 2.5 million images |
Figures are those published by the factory for this model. Where a value is shown as TBC it is not published, and we will confirm it with the factory before you order rather than estimate it.
Quality control
- Laser-cut and powder-coated frame for corrosion resistance
Customisation options
- Optional intelligent roller
- Optional high-density and liquid alarm functions
Compared with other models in the range
Against the 5030A, this is the same 50 x 30 cm tunnel with a 140 kV generator instead of 80 kV: 34 mm steel penetration rather than 11 mm, and four lead curtain layers instead of two. Against the 6550C it trades tunnel size for footprint.
Use guide
- Confirm the 50 x 30 cm tunnel clears your typical bag
- Use high and low penetration modes to work through dense contents
- Apply edge and local enhancement on the specific area in question
- Adjust roller speed from 0 to 0.25 m/s to balance throughput and image quality
- Shut down safely with the one-key rotation at the end of a shift

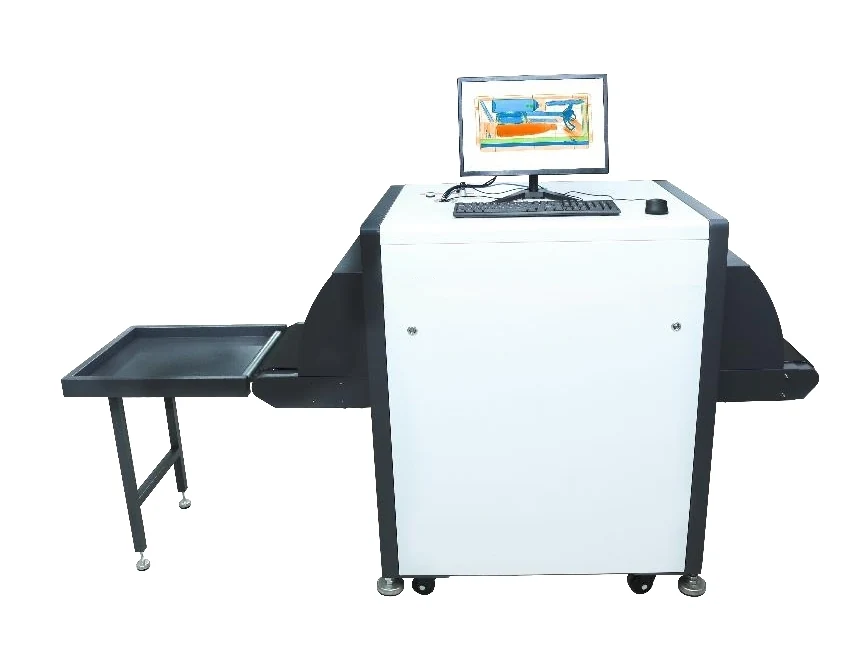

Product images
Where this product is used
Part of X-Ray Baggage and Cargo Scanners ยท typically specified for:
XIS-5030C X-Ray Baggage Scanner FAQ
How much steel does it penetrate
Up to 34 mm, from a 140 kV generator at 0.3 mA.
What is the tunnel size
50 cm wide by 30 cm high, suited to common luggage sizes.
How is the generator cooled
Sealed oil cooling plus external air cooling, for low energy consumption and long service life.
What shielding is fitted
Four layers of lead curtains at entrance and exit, with an anti-drop and anti-pinch item tray.
How many images can it hold
Over 2.5 million on a 500 GB drive, in multiple formats.
How does it compare with the 5030A
Same tunnel, but 140 kV and 34 mm penetration rather than 80 kV and 11 mm.
What options can be added
Intelligent roller, high-density and liquid alarm functions. Ask us on WhatsApp for a quotation with your options.
