VIKING 170 Degree Under Vehicle Search Camera with LCD Display

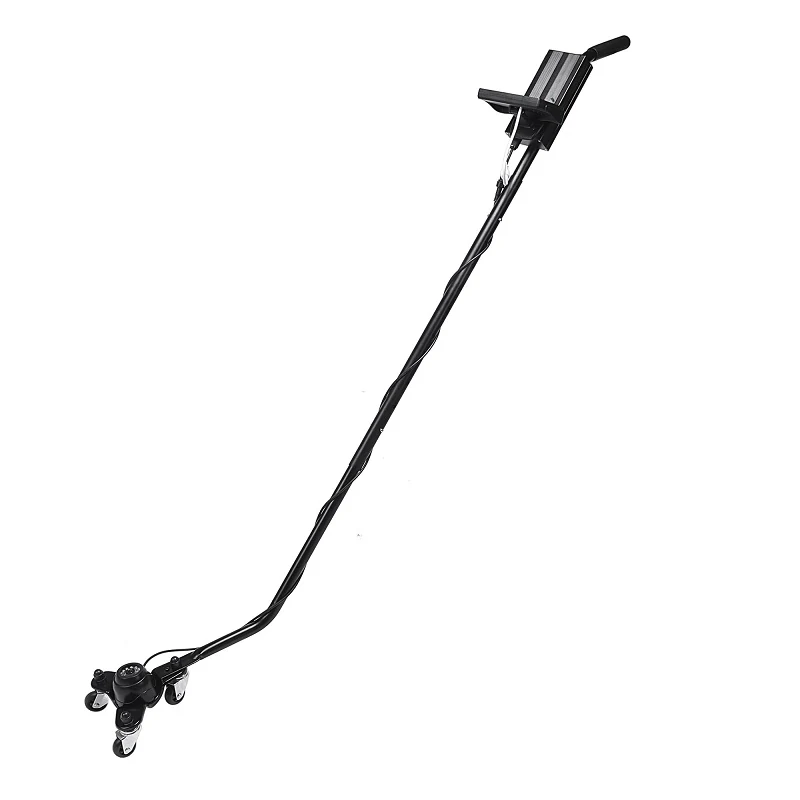

The VIKING under-vehicle camera puts a 170-degree adjustable infrared head on a three-section aluminium rod that extends to 110 cm and collapses to 90 cm without tools. The 4.3-inch colour LCD tilts through 150 degrees so a tall operator does not have to stoop, and the unit runs about 5 hours on its lithium battery at 1.5 kg.
Key benefits
- 170 degree adjustable infrared camera covering the full undercarriage

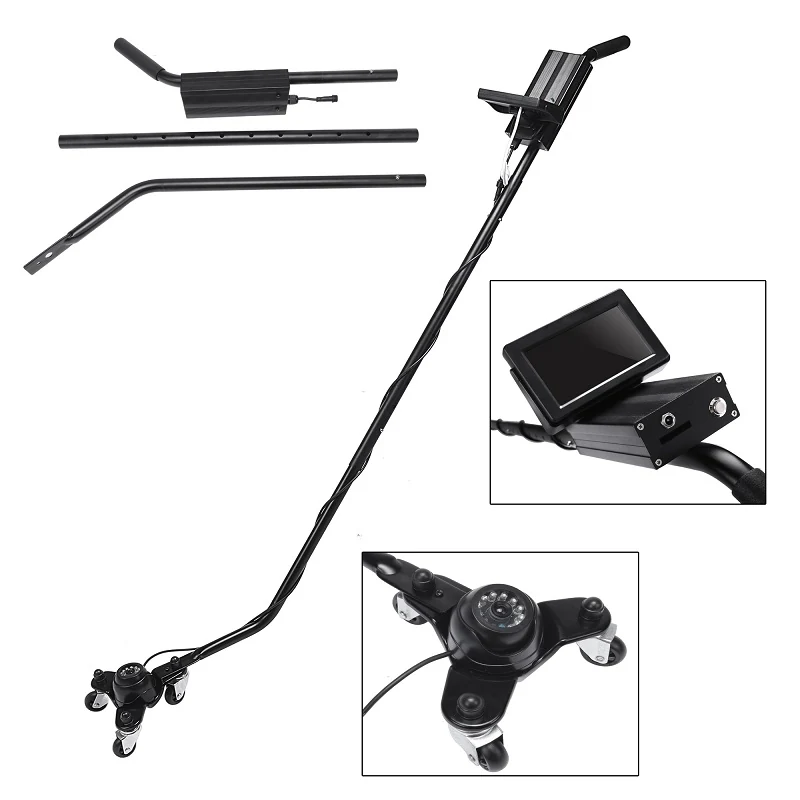

- Three-section aluminium rod extending to 110 cm, collapsing to 90 cm without tools
- 4.3-inch colour LCD adjustable through a 150 degree arc
- About 5 hours operating time from a lithium battery, 3 hours charging
- 1.5 kg unit weight with an arm rest and handle grip for long sessions
Problems it solves
- Mirror-only inspection gives no image and no record
- A fixed-length rod forces tall operators to stoop
- Dark undercarriages cannot be seen without infrared illumination
- Heavy inspection kit causes fatigue over a shift
Who it is for
- Gate teams inspecting vehicles by hand
- Operators of different heights sharing one inspection kit
- Sites that must retain an image record of an undercarriage check
Application scenarios
- Security checkpoints screening arriving vehicles
- Border crossings inspecting undercarriages
- Critical infrastructure gates
- Sites needing a recorded image of the inspection
Technical features
- Modular design configurable to the customer requirement
- Optional built-in DVR module recording to SD card
- Three-wheel trolley supporting the rod
- Optional eye-wear monitor with 42-inch visual size
- Light, rugged aluminium rod construction
Specifications
| Camera | 170 degree adjustable infrared, CCD with or without IR |
|---|---|
| Monitor | 4.3-inch 16:9 colour LCD, adjustable through 150 degrees |
| DVR (DVR model) | up to 8 GB SD card recording |
| Eye-Wear Monitor (option) | 42-inch visual size |
| Rods | Three-section light aluminium, extends to 110 cm, collapses to 90 cm |
| Trolley | Three wheel |
| Battery | Lithium |
| Using Time | about 5 hours |
| Charging Time | about 3 hours |
| Unit Weight | 1.5 kg |
| Unit Packing | 62 x 36 x 9 cm |
| Carton Weight | 11 kg for 5 pieces |
| Power | 12 V DC, charger 110 to 230 V AC |
Figures are those published by the factory for this model. Where a value is shown as TBC it is not published, and we will confirm it with the factory before you order rather than estimate it.
Customisation options
- Modular design configurable to customer requirements
- Optional built-in DVR module
- Optional eye-wear monitor
Compared with other models in the range
An under vehicle search mirror is cheaper and needs no power, but it gives no image, no infrared and no record. This camera is the choice where the inspection has to be seen properly and, with the DVR module, kept.
Use guide
- Extend the rod up to 110 cm to suit the operator's height

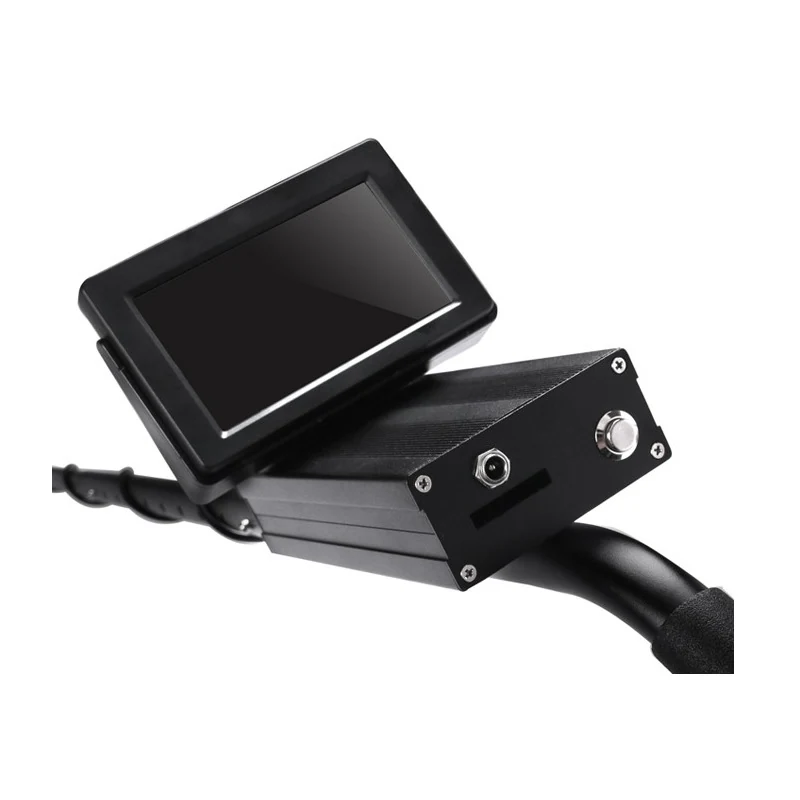

- Adjust the LCD within its 150 degree arc for a comfortable viewing angle

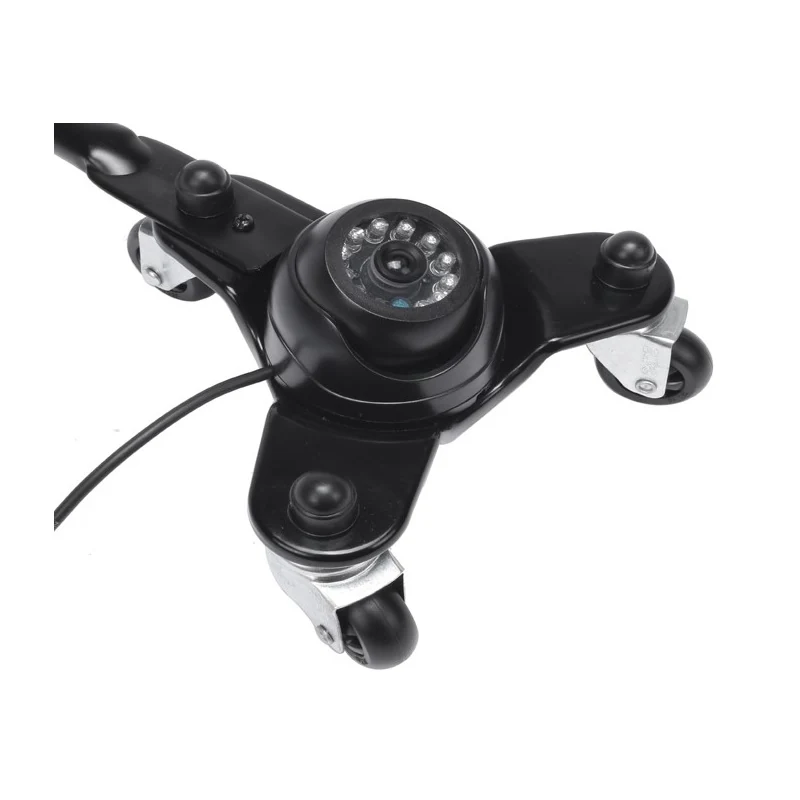

- Run the camera head along the undercarriage on the three-wheel trolley
- Fit an 8 GB SD card if the DVR module is specified, for a recorded check
- Charge for about 3 hours to get about 5 hours of use
Product images
Where this product is used
Part of Under Vehicle Surveillance Systems ยท typically specified for:
VIKING 170 Degree Under Vehicle Search Camera with LCD Display FAQ
How far does the rod extend
Up to 110 cm, collapsing to 90 cm without tools.
Can the inspection be recorded
Yes, with the built-in DVR module, which supports up to an 8 GB SD card.
How long does the battery last
About 5 hours of use, with about 3 hours charging.
How heavy is it to carry
1.5 kg for the unit, packed at 62 x 36 x 9 cm.
What viewing angle does the camera cover
170 degrees, adjustable, with infrared.
Is there an option for hands-free viewing
Yes, an eye-wear monitor with a 42-inch visual size is available.
How are they packed for shipping
Five pieces per carton, at 11 kg per carton.
Quotation for the VIKING 170 Degree Under Vehicle Search Camera with LCD Display
Send your destination port and quantity. We will come back with price, lead time and what documentation the factory can supply for your market.
