GC-613 Security Screening Handheld Metal Detector Wand
The GC-613 runs at 95 kHz with adjustable sensitivity, dual vibration and sound alerting, and a 9 V rechargeable battery drawing under 5 mA on standby. At 414 x 80 x 40 mm and 380 g it is a full-size wand, built rugged for daily use rather than occasional screening.
Key benefits
- 95 kHz operating frequency with adjustable sensitivity
- Dual alert by vibration and sound
- Standby current under 5 mA for long battery life
- Rugged construction for daily security operations
- 380 g at 414 x 80 x 40 mm
Problems it solves
- Lightweight wands do not survive daily professional use
- A fixed sensitivity setting misreads different environments
- High standby current drains batteries between uses
- A single alert type fails in either quiet or loud settings
Who it is for
- Security teams using a wand every day rather than occasionally
- Sites needing sensitivity tuned per screening environment
- Operators who need both audible and tactile alerting
Application scenarios
- Airport screening positions
- Public events and crowd control
- High-security facility entrances
- Sites screening continuously through a shift
Technical features
- 95 kHz operating frequency
- Adjustable sensitivity settings
- 9 V rechargeable battery
- 270 mW power consumption
- ABS housing
Specifications
| Product Model | GC-613 |
|---|---|
| Alarm Modes | Dual alert with vibration and sound |
| Power Source | 9 V rechargeable battery |
| Standby Current | under 5 mA |
| Power Consumption | 270 mW |
| Product Dimensions | 414 x 80 x 40 mm |
| Operating Temperature | -10°C to 65°C |
| Frequency | 95 kHz |
| Weight | 380 g |
Figures are those published by the factory for this model. Where a value is shown as TBC it is not published, and we will confirm it with the factory before you order rather than estimate it.
Customisation options
- Adjustable sensitivity set to the screening environment
Compared with other models in the range
The GP-008 Super Wand runs at 35 kHz and 225 g without battery, with stated detection distances by object type. The GC-613 is the heavier 95 kHz wand at 380 g, built around ruggedness and low standby drain.
Use guide
- Set sensitivity for the environment before the shift
- Use dual vibration and sound alerting, or select what the venue allows
- Charge the 9 V pack, standby current is under 5 mA between uses
- Sweep at a consistent distance for repeatable results
- Operate between -10°C and 65°C

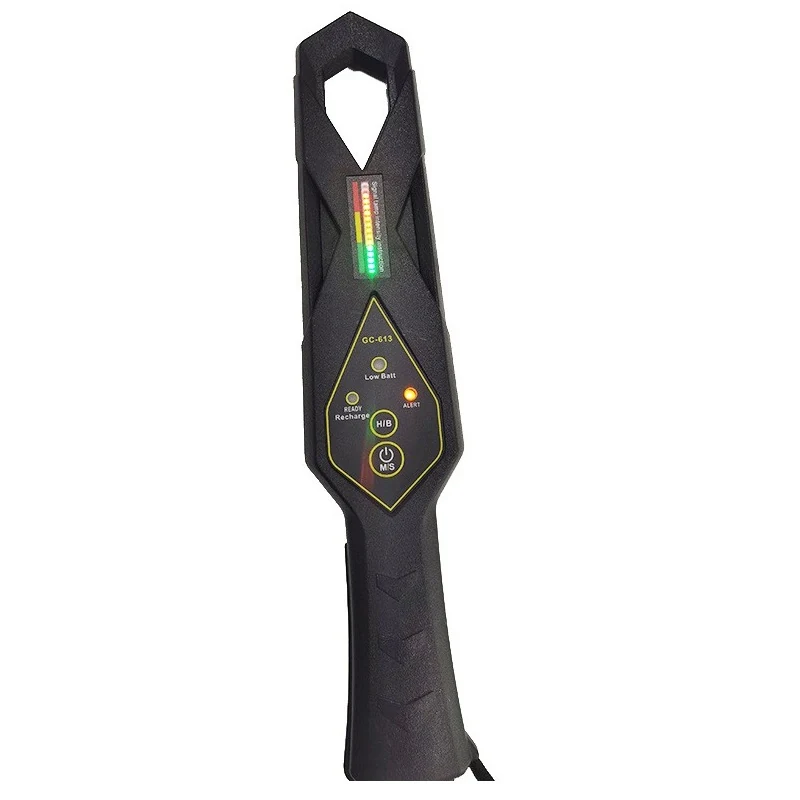

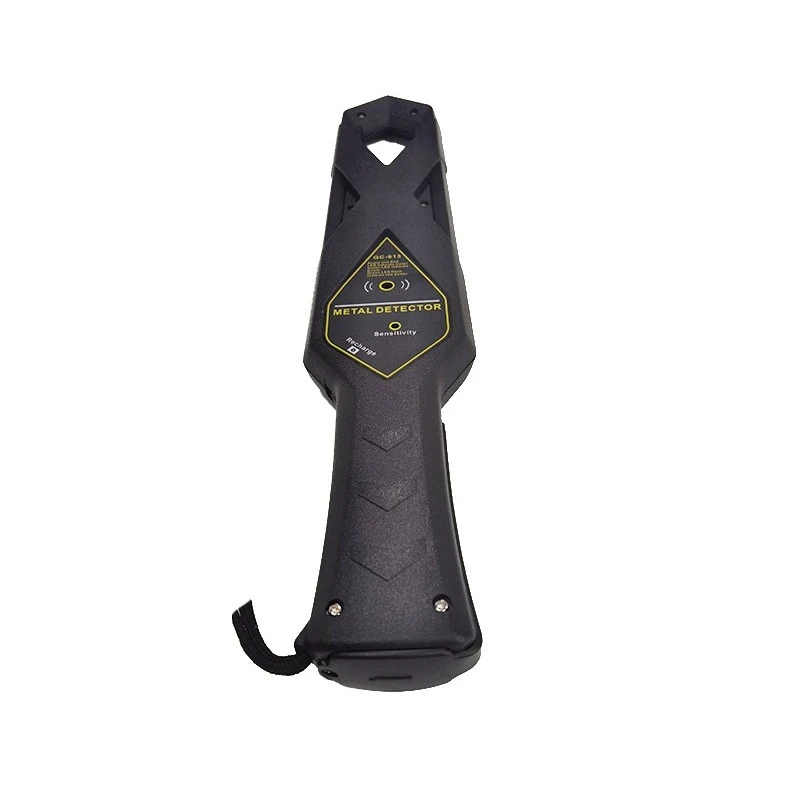

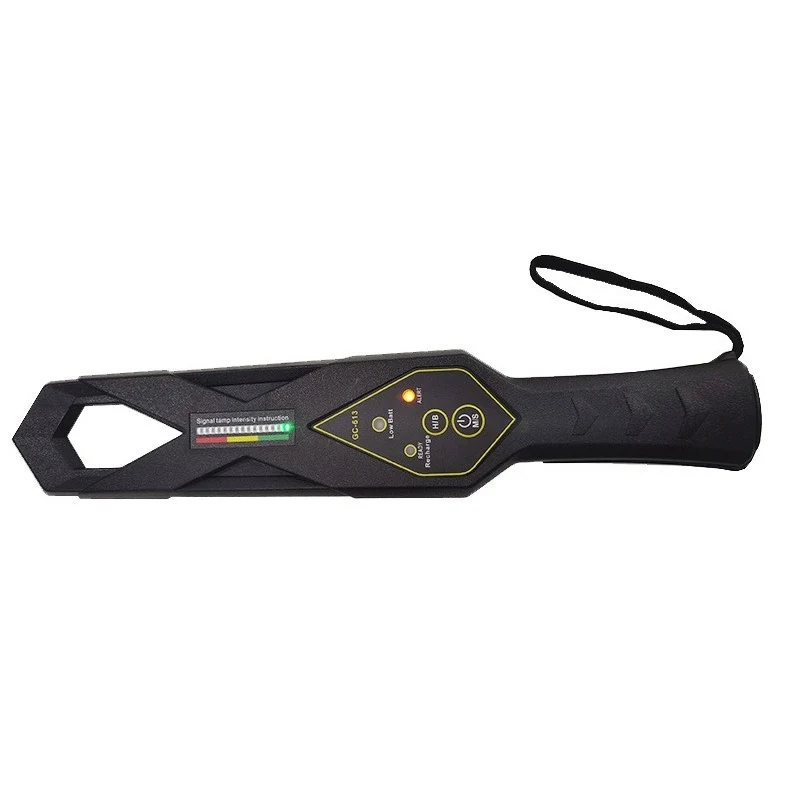

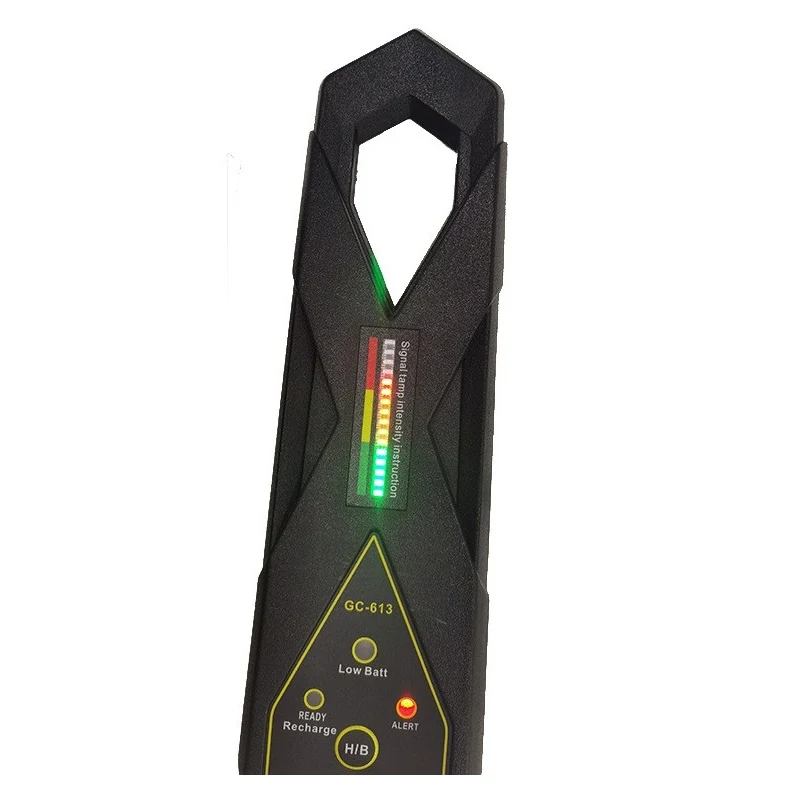

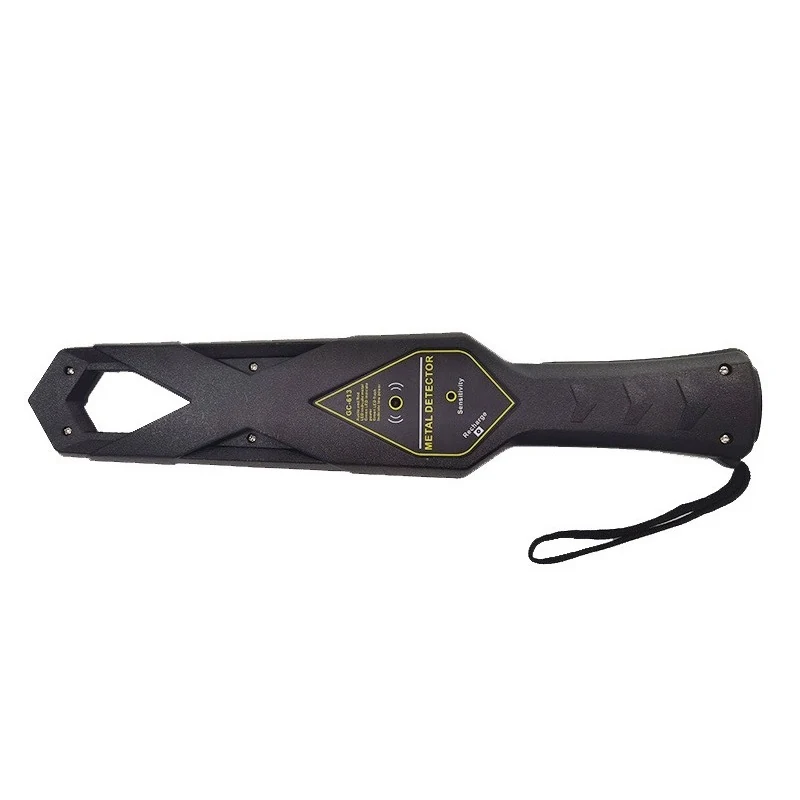

Product images
Where this product is used
Part of Handheld Security Metal Detector Wands · typically specified for:
GC-613 Security Screening Handheld Metal Detector Wand FAQ
What frequency does it operate at
95 kHz.
Can sensitivity be adjusted
Yes, adjustable sensitivity settings allow it to be tuned per screening environment.
What battery does it take
A 9 V rechargeable battery, with standby current under 5 mA and 270 mW consumption.
How heavy is it
380 g, at 414 x 80 x 40 mm.
What alerts does it give
Dual alert with vibration and sound.
What temperature range does it work in
-10°C to 65°C.
What is the price for a bulk quantity
Send your quantity and destination on WhatsApp and we will quote.
