GC-1001 Handheld Metal Detector
The GC-1001 has no adjustable controller at all, which is the point: there is nothing for an operator to set wrong, and it reacts immediately on detection. It runs from a standard 9 V battery, draws under 1 mA while working and nothing at all when stopped, and alarms with sound and light together. Size is 410 x 85 mm at 500 g.
Key benefits
- No adjustable controller, so nothing can be mis-set by an operator
- Fast reaction on detection
- Under 1 mA while working and no drain when stopped
- Simultaneous sound and light alarm
- Standard 9 V battery, available anywhere
Problems it solves
- Adjustable wands get left on the wrong setting between shifts
- Training time is wasted on controls that are never used
- Proprietary batteries are unavailable in some markets
- Battery drain between uses leaves a wand flat at the start of a shift
Who it is for
- Venues with frequently changing or temporary screening staff
- Buyers who want the simplest possible wand
- Sites that must source batteries locally
Application scenarios
- Security inspection at entrances and events
- High-traffic screening where staff rotate frequently
- Sites where wands are shared across many operators
- Locations without access to specialist batteries
Technical features
- No adjustable controller, fixed operating point
- Sound and light alarm together
- Under 1 mA consumption while working, none when stopped
- Standard 9 V overlapping battery
Specifications
| Dimensions | 410 x 85 mm |
|---|---|
| Power Source | standard 9 V overlapping battery |
| Alarm Mode | Sound and light simultaneously |
| Weight | 500 g |
| Working Current | under 1 mA |
| Standby Consumption | none when stopped |
Figures are those published by the factory for this model. Where a value is shown as TBC it is not published, and we will confirm it with the factory before you order rather than estimate it.
Compared with other models in the range
The GC-613 is the adjustable 95 kHz wand for operators who want to tune it; the GC-1001 removes the controls entirely. Choose the GC-1001 where staff rotate and the priority is that the wand behaves identically every time.
Use guide
- Fit a standard 9 V battery, no setting-up is required
- Sweep at a consistent distance from the person or parcel
- Watch and listen for the simultaneous sound and light alarm
- Switch off when not in use, there is no drain when stopped
- Replace the battery from local stock rather than a proprietary pack

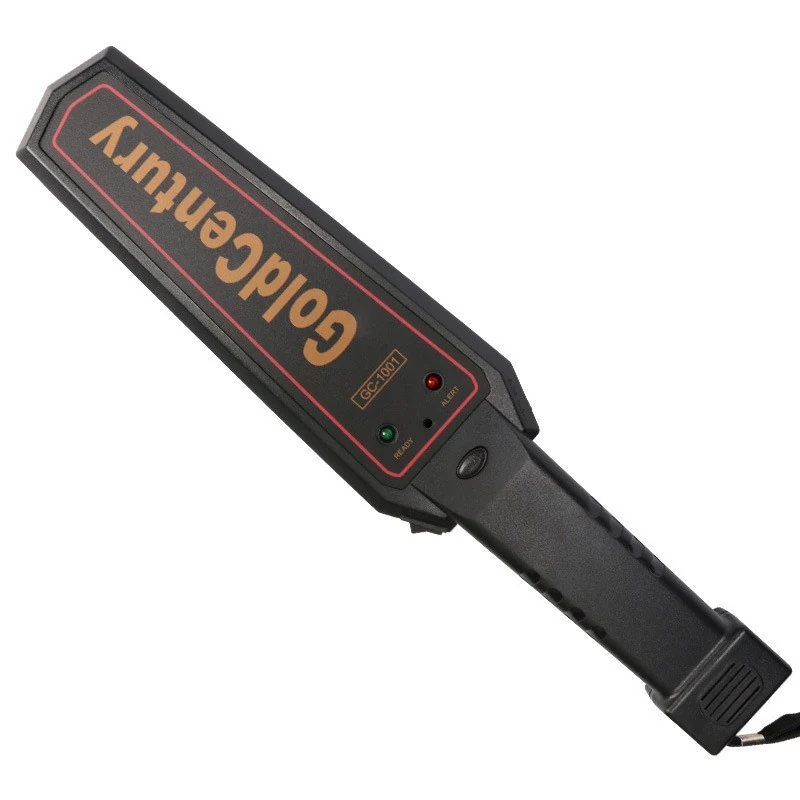

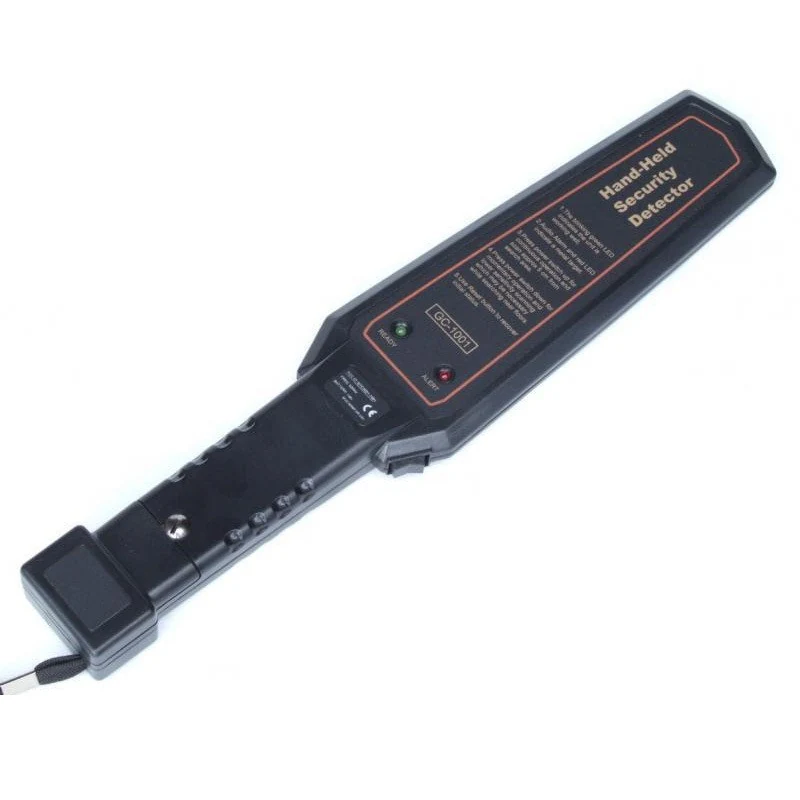

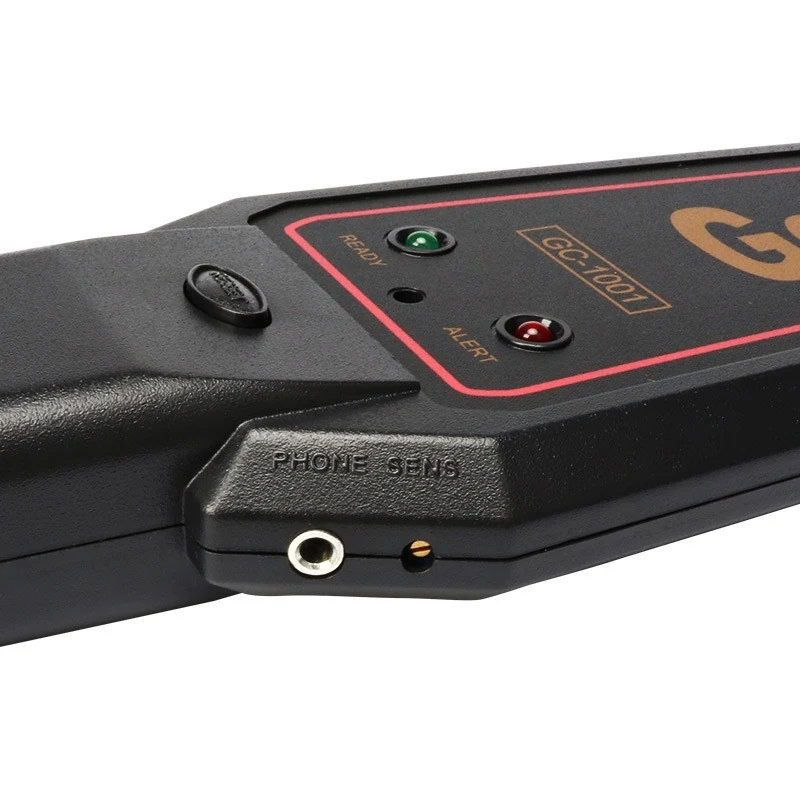

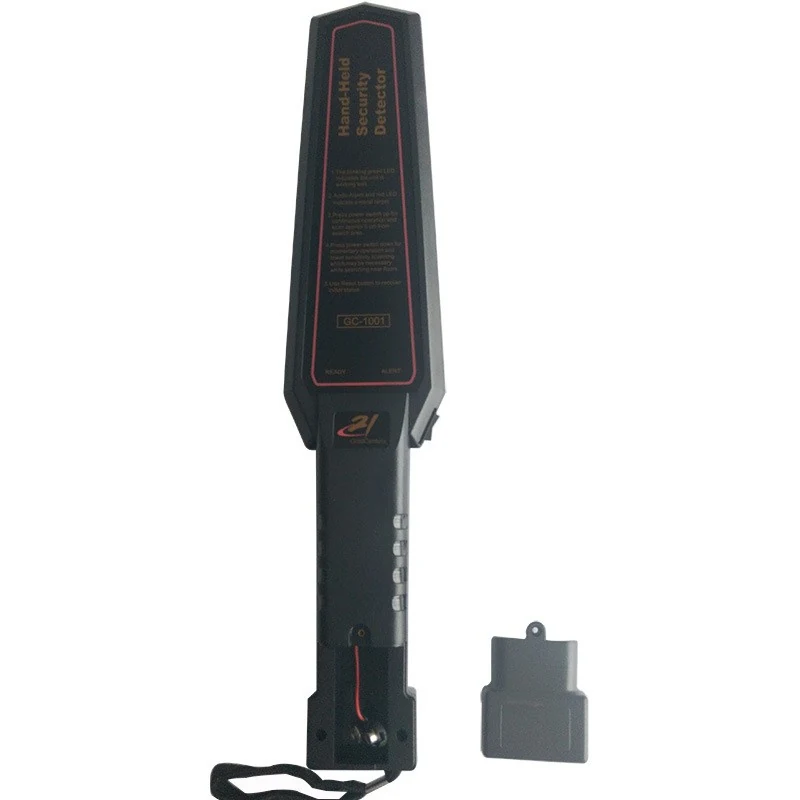

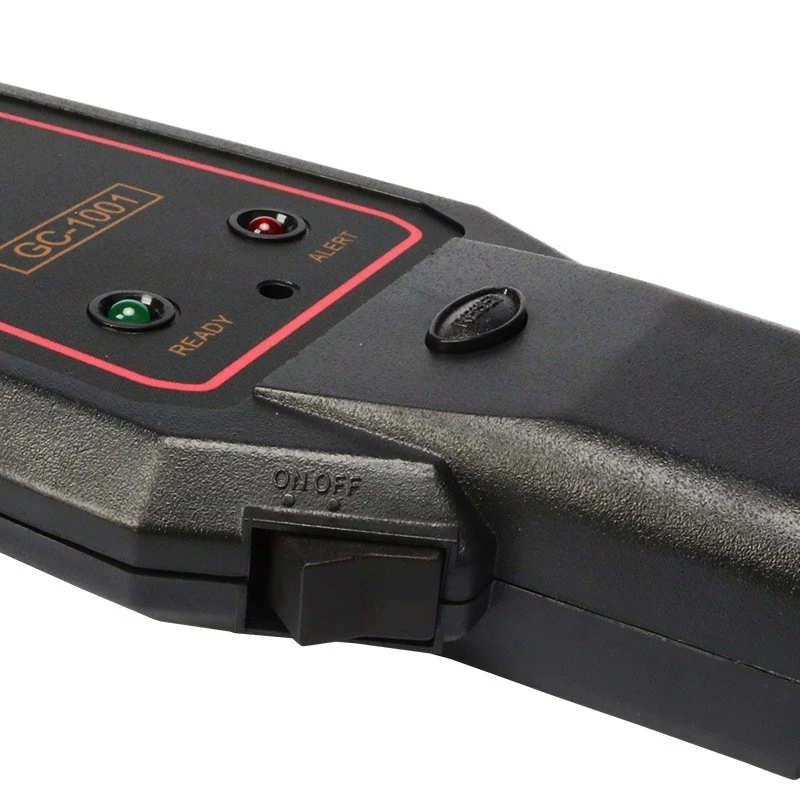

Product images
Where this product is used
Part of Handheld Security Metal Detector Wands ยท typically specified for:
GC-1001 Handheld Metal Detector FAQ
Does it have sensitivity controls
No. It has no adjustable controller, which is deliberate: there is nothing for an operator to set incorrectly.
What battery does it use
A standard 9 V overlapping battery.
How much power does it draw
Under 1 mA while working, and nothing when stopped.
How does it alarm
Sound and light alarm simultaneously.
How big and heavy is it
410 x 85 mm at 500 g.
Is it suitable for untrained staff
It is specified as convenient to use with no adjustable controller and quick reaction on detection.
Can you supply in bulk for multiple sites
Yes. Send your quantity and destinations on WhatsApp and we will quote.
