Portable Trace Explosives Detector for Anti-Terrorism Screening
This portable trace detector uses fluorescent polymer sensing and gives a result in 2 seconds or less. It samples two ways, by direct suction or by heating a test strip, so a surface, a hand or an item of luggage can all be checked. The complete instrument, including battery and heating head, weighs 2 kg or less.
Key benefits
- Detection response time of 2 seconds or less
- Two sampling modes: direct suction and heated test strip
- 2 kg or less complete, including battery and heating head
- Preheating under 1 minute in heating mode and under 4 seconds by direct suction
- Sound, light and on-screen word alarm prompts
Problems it solves
- Bulk screening does not detect residue on a person who handled explosives
- Laboratory analysis is far too slow for a checkpoint
- Heavy instruments cannot be carried through a crowd
- Long warm-up times delay the first check of an operation
Who it is for
- Anti-terrorism units conducting on-the-spot checks
- Event security screening at entry points
- Facility teams protecting critical infrastructure
Application scenarios
- Public safety and anti-terrorism explosion-proof inspection
- Large-scale events and important meeting venues
- Airports and government facilities
- Critical infrastructure screening points
Technical features
- Fluorescent polymer sensing technology
- Explosion-proof design
- Cleaning time of 10 seconds or less between samples
- On-instrument display of working status and detection information
Specifications
| Sensing Technology | Fluorescent polymer |
|---|---|
| Detection Mode | Heating mode and direct suction mode |
| Detection Response Time | 2 seconds or less |
| Preheating Time | 1 minute or less (heating mode), 4 seconds or less (direct suction) |
| Cleaning Time | 10 seconds or less |
| Alarm Mode | Sound, light and word alarm prompt |
| Instrument Host Size | 296 x 88 x 65 mm or less |
| Instrument Heater Size | 64 x 73 x 43 mm or less |
| Host with Heater Connected | 326 x 88 x 65 mm or less |
| Total Weight | 2 kg or less including battery and heating head |
| Battery Life | approximately 8 hours |
Figures are those published by the factory for this model. Where a value is shown as TBC it is not published, and we will confirm it with the factory before you order rather than estimate it.
Compared with other models in the range
The VPM-2018 uses Ion Mobility Spectrometry and detects narcotics as well as explosives, with a 300,000-record archive. This detector is the lighter explosion-proof instrument at 2 kg or less with a 2-second response, for fast repeated checks in a crowd.
Use guide
- Allow up to 1 minute preheating in heating mode, or 4 seconds by direct suction
- Take a direct suction sample from the air around an item, or wipe onto a test strip
- Read the result within 2 seconds from the sound, light and word alarm
- Allow up to 10 seconds cleaning time before the next sample
- Plan for around 8 hours of battery life per shift

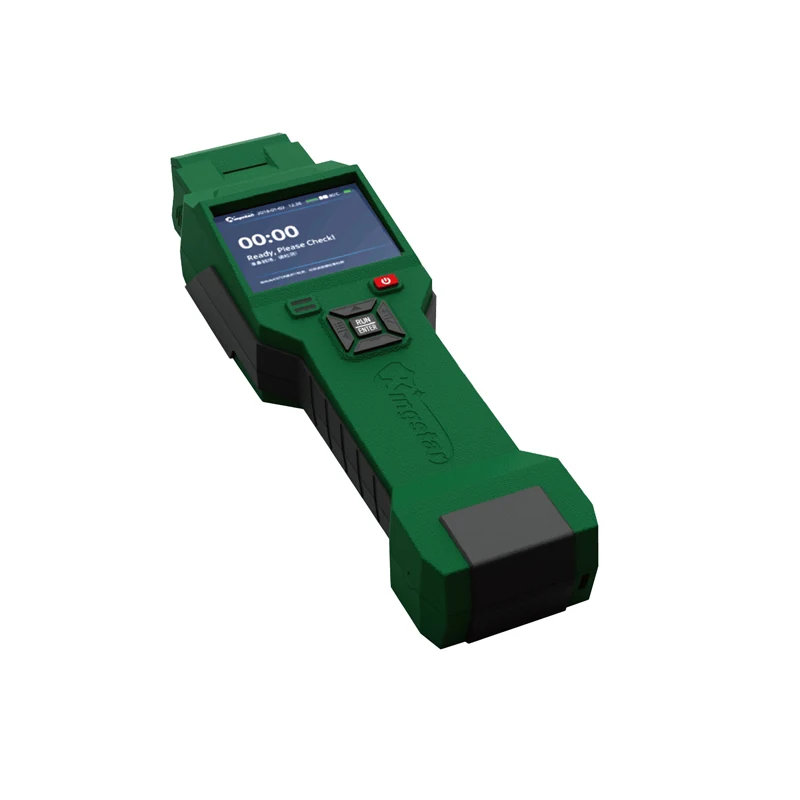

Product images
Where this product is used
Part of Explosive and Narcotics Trace Detectors ยท typically specified for:
Portable Trace Explosives Detector for Anti-Terrorism Screening FAQ
How fast is a result
2 seconds or less.
How is a sample taken
By direct suction, or by heating a test strip after wiping a surface.
How heavy is the complete instrument
2 kg or less, including the battery and heating head.
How long before it is ready to use
Under 1 minute in heating mode, and under 4 seconds in direct suction mode.
How long between samples
Cleaning time is 10 seconds or less.
How long does the battery last
Approximately 8 hours.
Can you supply consumables
Yes. Ask us on WhatsApp for the test strip and consumable list with your order.
Quotation for the Portable Trace Explosives Detector for Anti-Terrorism Screening
Send your destination port and quantity. We will come back with price, lead time and what documentation the factory can supply for your market.
