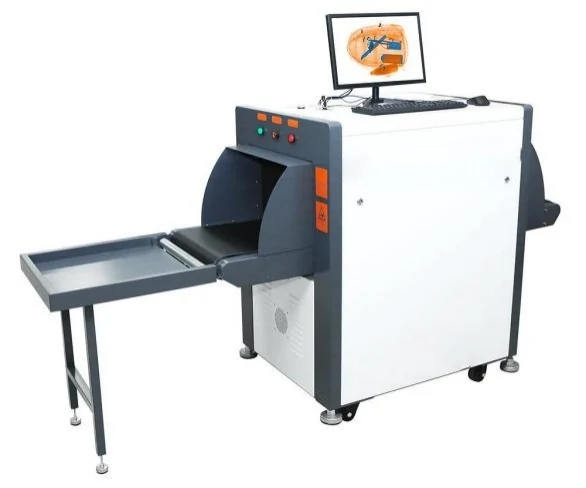

XIS 5030A High-Definition X-Ray Baggage Scanner
The 5030A is the small-footprint scanner for hotel and enterprise entrances, with a 50 x 30 cm tunnel and 100 kg load, penetrating 11 mm of steel. Its build details are what make it last in a lobby: a laser-cut, powder-coated frame for corrosion resistance, a DC 24 V silent linear roller and an embedded industrial motherboard with a 500 GB drive.
Key benefits
- 50 x 30 cm tunnel suited to hotel and office entrance screening
- 11 mm steel penetration with organic and inorganic differentiation
- Over 2.5 million images on a 500 GB drive
- Silent DC 24 V linear roller, speed adjustable 0 to 0.25 m/s
- Laser-cut powder-coated frame, anti-corrosion and rust-proof
Problems it solves
- Large scanners overwhelm a hotel or office lobby
- Noisy conveyors are unacceptable in a reception area
- Painted frames corrode and look poor within a few years
- Ambiguous images lead to guests' bags being opened
Who it is for
- Hotels and enterprises adding entrance screening
- Buildings where noise in the lobby is a real constraint
- Operators who want image retention without a large installation
Application scenarios
- Hotel entrances screening guest luggage
- Enterprise reception areas
- Office buildings with a single controlled entrance
- Venues needing a quiet machine in a public space
Technical features
- Colour and greyscale with enhancement, weakening and local magnification
- Organic and inorganic differentiation
- Optional smart rollers with high-density and liquid alarm systems
- Power-on self-check and automatic calibration
- One-button shutdown
- Standard receiving rack at the exit with anti-pinch design
Specifications
| Tunnel Size | 50 cm wide x 30 cm high |
|---|---|
| Conveyor Speed | 0.23 m/s, adjustable 0 to 0.25 m/s |
| Maximum Load | 100 kg |
| Penetration | 11 mm steel plate |
| Wire Resolution | 0.0787 mm |
| Penetration Resolution | 0.127 mm |
| Spatial Resolution | 1.0 mm |
| Tube Voltage | 80 kV |
| Tube Current | 0.6 mA |
| Single Inspection Dose | less than 1 microgray |
| Leakage Dose Rate | less than 1 microsievert/h |
| Standard | GB15208.1-2018 |
| Motor | DC 24 V silent linear electric drum |
| Storage | 500 GB, up to 2.5 million images |
| Monitor | 19-inch LCD with VGA interface |
Figures are those published by the factory for this model. Where a value is shown as TBC it is not published, and we will confirm it with the factory before you order rather than estimate it.
Quality control
- Compliant with national standard GB15208.1-2018
- Laser-cut and powder-coated frame for corrosion and rust resistance
Customisation options
- Optional smart rollers
- Optional high-density and liquid alarms
- Optional operation desk
Compared with other models in the range
The XIS-5030C shares this 50 x 30 cm tunnel but runs a 140 kV generator penetrating 34 mm with four-layer lead curtains. The 5030A is the 80 kV version for ordinary guest luggage in a lobby setting.
Use guide
- Site at the entrance where luggage already passes
- Set the roller speed between 0 and 0.25 m/s for the arrival rate
- Use organic and inorganic differentiation rather than opening a guest's bag
- Fit the optional liquid or high-density alarm if those are your concern
- Shut down with the one-button key at close of shift
Product images
Where this product is used
Part of X-Ray Baggage and Cargo Scanners ยท typically specified for:
XIS 5030A High-Definition X-Ray Baggage Scanner FAQ
What size is the tunnel
50 cm wide by 30 cm high, with a 100 kg load capacity.
How much steel does it penetrate
11 mm, from an 80 kV generator.
Is it quiet enough for a hotel lobby
It uses a DC 24 V silent linear electric drum motor with speed adjustable from 0 to 0.25 m/s.
How is the frame protected
Laser-cut and powder-coated for anti-corrosion and rust resistance.
How many images does it keep
Up to 2.5 million on a 500 GB drive, in multiple formats.
Does it meet a radiation standard
Yes, GB15208.1-2018, with single dose under 1 microgray and leakage under 1 microsievert per hour.
What options are available
Smart rollers, high-density and liquid alarms and an operation desk. Ask us on WhatsApp to quote with the options you need.
