XIBS 10080C X-Ray Inspection Scanner
The 10080C is the large-tunnel scanner in the XIBS line: 100 cm wide by 80 cm high, 200 kg load, 0.23 m/s belt and 32 mm steel penetration from a 140 kV generator. Storage runs to over 1.5 million images, and radiation figures are stated against GB15208.1-2018, with four-layer lead curtains at entry and exit.
Key benefits
- 100 x 80 cm tunnel with a 200 kg maximum load
- 32 mm steel penetration with 0.0787 mm wire resolution
- Over 1.5 million images stored in multiple formats
- Four-layer lead curtains, leakage below 1 microsievert/h at 10 cm
- Compliant with national standard GB15208.1-2018
Problems it solves
- Bulky items do not fit a 65 x 50 cm tunnel
- Shallow image archives cannot support later investigation
- Operators cannot separate organic from inorganic on a grey image
- Corrosion shortens the life of an untreated chassis
Who it is for
- Operators screening oversized luggage at passenger checkpoints
- Sites that must evidence compliance with a stated national standard
- Facilities needing long-term image retention
Application scenarios
- Airports, subway and train stations
- Government facilities with large-item screening
- Major event venues handling bulky bags
- High-volume checkpoints needing archive depth
Technical features
- Colour, greyscale, inverse, enhancement, weakening and organic/inorganic modes
- Detail zoom via mouse scroll
- Optional smart roller, high-density and liquid alarms
- Self-check on startup, automatic calibration and curve diagnostics
- Multi-level user management, image management and TIP management
- Laser-cut and powder-coated chassis with silent variable frequency motor
Specifications
| Tunnel Size | 100 cm wide x 80 cm high |
|---|---|
| Conveyor Speed | 0.23 m/s |
| Maximum Load | 200 kg |
| Penetration | 32 mm steel plate |
| Wire Resolution | 0.0787 mm |
| Penetration Resolution | 0.127 mm |
| Spatial Resolution | 1.0 mm |
| Tube Voltage | 140 kV |
| Tube Current | 0.3 mA |
| Single Inspection Dose | below 1 microgray |
| Leakage Dose Rate | under 1 microsievert/h at 10 cm from the surface |
| Standard | GB15208.1-2018 |
| Lead Curtains | Four layers |
| Image Storage | over 1.5 million images |
| Monitor | 19-inch LCD with dedicated keyboard |
Figures are those published by the factory for this model. Where a value is shown as TBC it is not published, and we will confirm it with the factory before you order rather than estimate it.
Quality control
- Compliant with national standard GB15208.1-2018 for radiation dose and leakage
Customisation options
- Optional smart roller, high-density alarm and liquid alarm
Compared with other models in the range
Within the XIBS line the 6550A covers 65 x 50 cm at 11 mm steel and 100 kg, and the 8065A covers 80 x 65 cm at 11 mm and 200 kg. The 10080C is the largest tunnel with the highest penetration at 32 mm, which is what to specify when bags are both big and dense.
Use guide
- Confirm the 100 x 80 cm tunnel and 200 kg load cover your largest item
- Run the belt at 0.23 m/s and use detail zoom on anything unclear
- Use organic and inorganic differentiation before opening a bag
- Let the startup self-check and automatic calibration complete before the first item
- Verify the installation against GB15208.1-2018 or your local equivalent

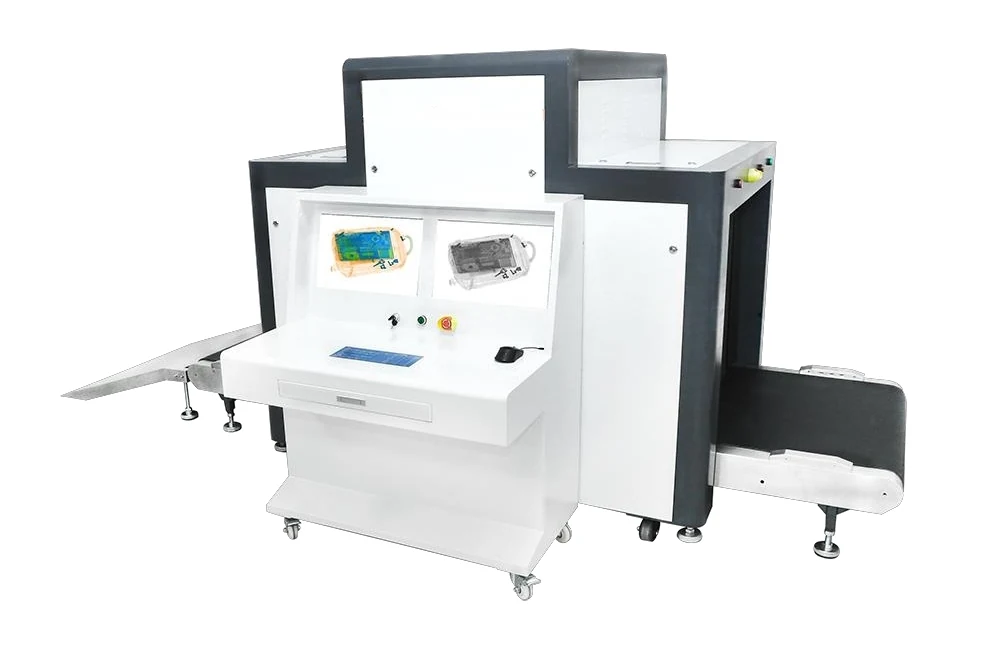

Product images
Where this product is used
Part of X-Ray Baggage and Cargo Scanners ยท typically specified for:
XIBS 10080C X-Ray Inspection Scanner FAQ
What size items does it take
A 100 cm wide by 80 cm high tunnel, with a maximum load of 200 kg.
How much steel does it penetrate
32 mm, from a 140 kV generator at 0.3 mA.
What are the radiation figures
Single inspection dose below 1 microgray and leakage under 1 microsievert per hour at 10 cm from the surface, with four-layer lead curtains.
Which standard does it meet
The new national standard GB15208.1-2018.
How many images does it store
Over 1.5 million, in several formats, transferable for later analysis.
Is the chassis protected against corrosion
The chassis is laser cut and powder coated for corrosion resistance.
Can the alarms be specified as options
Smart roller, high-density and liquid alarms are optional. Tell us what you need on WhatsApp and we will quote accordingly.
