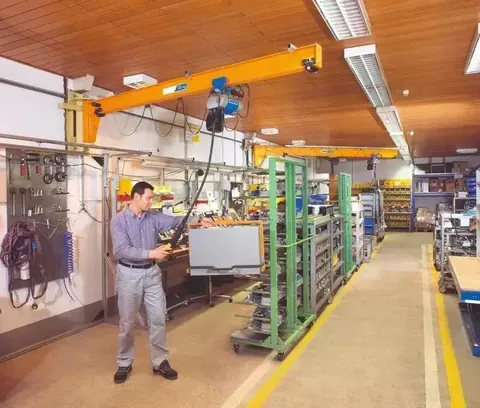

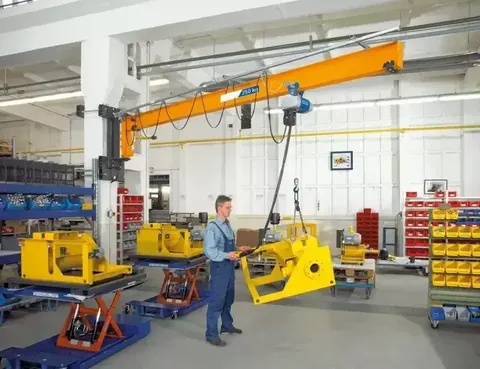

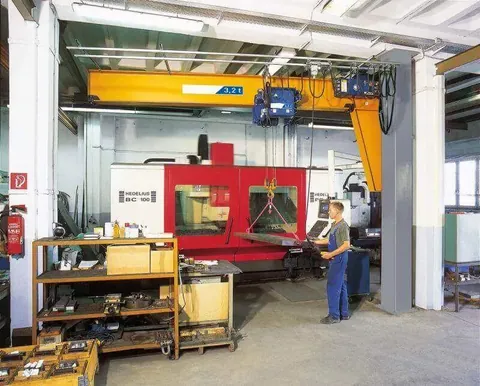

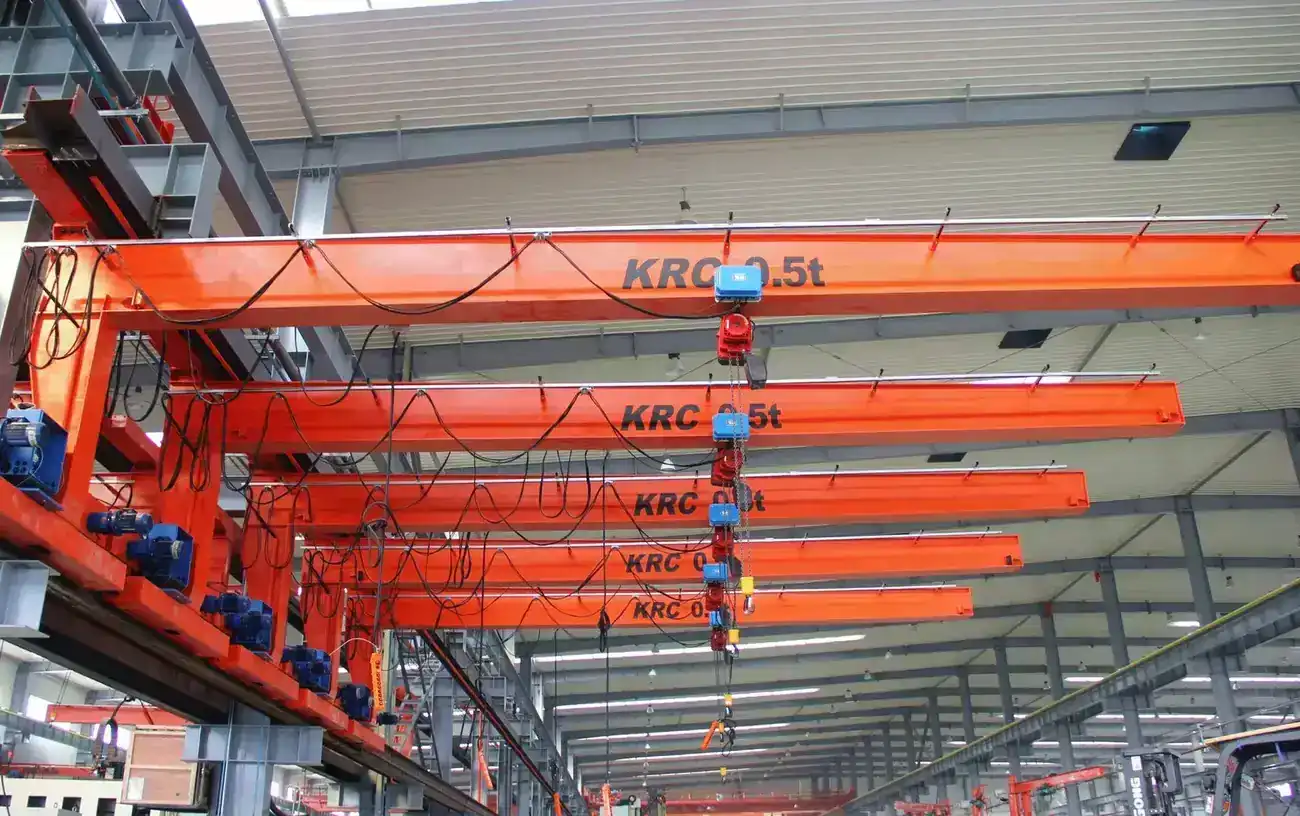

A wall mounted jib crane with a load capacity of 0.5T to 5T, built on a single I beam that resists buckling under heavy goods and fixed to the wall or column with a steel tie rod. Mounting on the wall frees the room for other equipment, and the crane is used in warehouses and distribution centres, manufacturing and assembly areas and workshops where parts are lifted and repaired.
Wall mounting makes room in the bay for production equipment that would otherwise compete with a crane base
A load band of 0.5T to 5T covers light tooling through to heavy pallet and container work

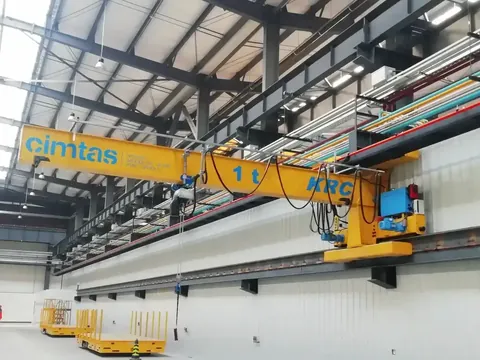

A single I beam boom carries heavy goods without buckling under the hoist load
A steel tie rod fixing spreads the load into the wall or column instead of concentrating it at one bracket
Low maintenance requirements reduce the running cost of a crane that works every shift
Floor mounted cranes take space that storage and machines need
Manual pallet and container handling is slow and causes injuries
Light booms deflect or buckle when heavy goods are lifted at reach
Adding lifting equipment often requires foundation work that halts the area
| Load Capacity | 0.5T to 5T |
|---|---|
| Boom | Single I beam |
| Mounting | Steel tie rod to wall or column |
| Applications | Warehouses distribution centres manufacturing assembly workshops |
Figures shown are taken from the supplying factory documentation. Anything not listed here is confirmed in writing before order.
A wall bracket version keeps the floor area free for other equipment
Chosen where a sound wall or column already exists so no floor base is needed
A wall jib serves a single bay at lower cost than a runway across the building
up to 6 ton Jib Crane
A jib crane for heavy lifting at the workstation, with a slewing range of 360 degrees and a rated loading capa...
View Details →
2 Ton Jib Crane
A 2 ton jib crane offered in wall mounted, free standing, column mounted, mast type and portable versions, wit...
View Details →
1 Ton Jib Crane
An LW wall jib crane with a loading capacity of 1.0 tons, mounted on walls or columns so the working floor sta...
View Details →
Davits Crane
A davits crane built for boat operations, loading and unloading heavy materials quickly and positioning loads ...
View Details →
Ceiling Crane for a Metro Vehicle Inspection and Repair Depot
Vehicle maintenance has to happen above and around a train that occupies most of the bay, ...
Read Case →Crane for Casting Pipe Handling in a Foundry
Casting pipe has to be moved through a foundry environment that punishes equipment, and th...
Read Case →The wall mounted jib crane is offered with a load capacity of 0.5T to 5T and the rating is fixed from your heaviest item.
A steel tie rod is used to mount the jib crane to the wall or column, which supports the boom under load.
The single I beam provides support for carrying heavy goods without succumbing to buckling at reach.
They are used in warehouses and distribution centres, in manufacturing and assembly, and in workshops for lifting parts and repairs.
Order quantity is agreed per project and confirmed in writing with the quotation.
Delivery time depends on capacity and boom length selected and is confirmed with the quotation.
Send the drawing, capacity or duty cycle you need and we will come back with the factory match, the build detail and the commercial terms.
