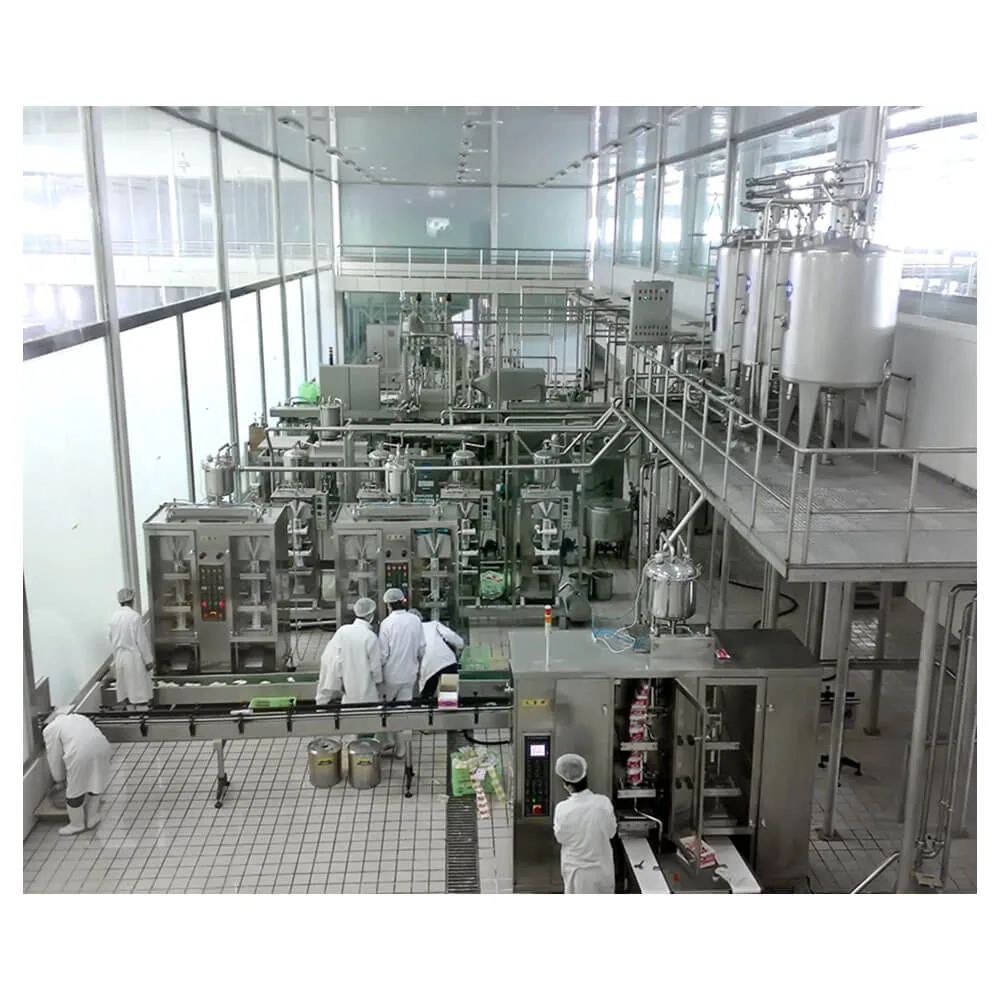

An automatic pouch filling machine that completes film disinfection, bag and pouch making, filling, measuring, sealing and date printing in one liquid packaging process. It is used for pasteurised milk filling and also for drinking water, vegetable oil, milk and fruit wine. Working capacity is 1000-1200BPH, customised, the machine is built in SUS304 stainless steel, filling accuracy is plus or minus 1.5 per mille, and the machine can be supplied with 1 or 2 filling heads.
Film disinfection bag making filling sealing and date printing run in one machine so no separate bag supply or coding station is needed
Filling accuracy of plus or minus 1.5 per mille keeps giveaway under control on every pouch
Forming pouches from film on the machine removes the cost and storage of preformed bags
1 or 2 filling heads let output be set without changing machine type
One machine covers milk water vegetable oil and fruit wine so a mixed packing operation needs one filler
Buying preformed pouches adds cost and storage that film on a roll does not
Filling by volume without measurement control causes giveaway on every pack
Coding on a separate machine adds a handling step and a point where packs are missed
Running separate fillers for milk water and oil ties up floor space and capital
| Product Model | HTK-SLDGZ-01 |
|---|---|
| Working Capacity | 1000-1200BPH customised |
| Material | SUS304 stainless steel |
| Filling Accuracy | Plus or minus 1.5 per mille |
| Filling Head | 1 or 2 head |
| Minimum Order | One unit |
Figures shown are taken from the supplying factory documentation. Anything not listed here is confirmed in writing before order.
The cup machine fills preformed cups while this machine makes the pouch from film as it fills
The bottle machine rinses fills and caps rigid bottles while this one forms seals and codes flexible pouches
A 1 head build is simpler while a 2 head build raises output on the same machine
PET Bottle Filling Machine
A three in one machine that combines rinsing, filling and capping of PET bottles, used on dairy, fruit juice, ...
View Details →
Glass Bottle Filling Machine
A three in one machine combining rinsing, filling and capping for glass bottles, used on fruit juice, beverage...
View Details →
Aseptic Bag Filling Machine
Bulk juice and concentrate is shipped in aseptic bag, and the filling step decides whether that product stays ...
View Details →
Can Filling and Seaming Machine
A combined filling and seaming machine for cans on dairy, fruit juice, beer and other beverage lines, suitable...
View Details →It automatically completes film disinfection, bag and pouch making, filling, measuring, sealing and date printing.
Filling accuracy is plus or minus 1.5 per mille.
Working capacity is 1000-1200BPH and is customised to the line.
The machine can be supplied with 1 or 2 filling heads.
Pasteurised milk, drinking water, vegetable oil, milk and fruit wine among other liquid products.
Lead time depends on head count and pouch format and is confirmed in writing with the quotation.
Send the drawing, capacity or duty cycle you need and we will come back with the factory match, the build detail and the commercial terms.
