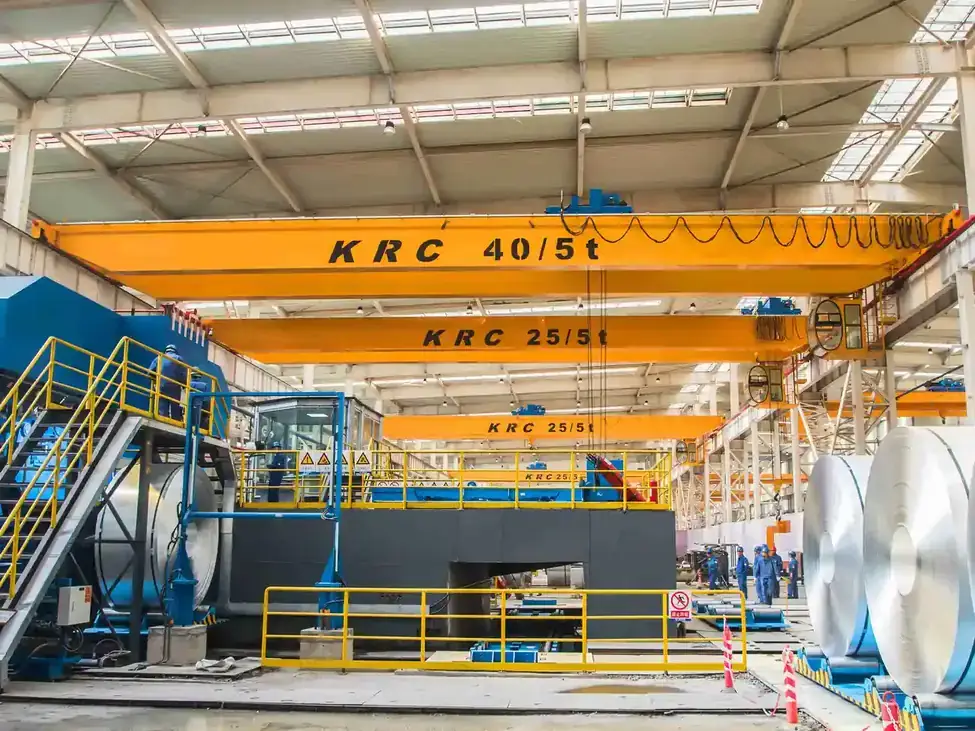

A 40 ton crane family covering overhead, winch and gantry builds for construction, outdoor warehouse and railroad work. Lifting capacity differs by build rather than by model number: the light overhead version carries 5 to 100 Tons, the winch version reaches 5 to 360 Tons and the gantry version handles up to 320 Tons over a span reaching 50M, so one enquiry can be answered with the build that matches the actual load spectrum.
Three builds under one capacity heading let a purchaser test a single specification against three price points
Spans within 0-49M are set from the site so a railroad siding or long yard does not need extra foundations
Hook heights of 30M/40M reach over stacked material that a low hook path would force a second machine to handle
Load ranges published per build prevent a crane being bought for a peak load it cannot actually take
Control options let the same crane be run from a cab on long travel and by remote during precise placement
A crane bought at nominal tonnage can still be short of the true peak load
Open yards and sidings have no roof structure to hang a runway from
Long travel distances tire an operator who must walk beside a pendant control
Mixed duty work is badly served by a single fixed build offered without alternatives
| Rated Capacity | 40 Ton |
|---|---|
| Light Overhead Lifting Load | 5 to 100 Tons |
| Winch Overhead Lifting Load | 5 to 360 Tons |
| Max Span Overhead Builds | 0-49M |
| Max Lifting Height | 30M/40M |
| Lifting Speed | 0.4-16m/min light and 0.4-20m/min winch |
| Gantry Build | Up to 320 Tons span up to 50M height up to 40M |
| Control Options | Wireless cab handheld |
Figures shown are taken from the supplying factory documentation. Anything not listed here is confirmed in writing before order.
Cost controlled option for construction hoist and light industrial duty
Takes the load range to 360 Tons for heavy duty construction and large hoisting

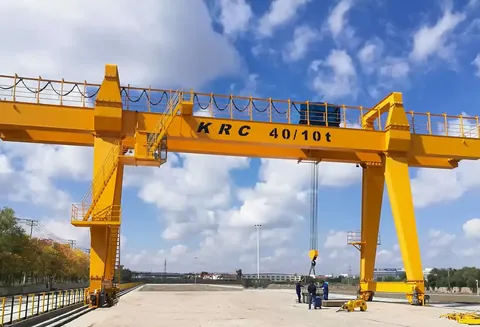

Works where no building exists such as outdoor warehouses and railroad sites
50 Ton Overhead Crane
A 50 ton bridge crane offered in light double beam and winch double beam builds, both produced in Henan, China...
View Details →
100 Ton Overhead Crane
A 100 ton overhead crane range written for heavy manufacturing, shipbuilding, aerospace, metals and mining, po...
View Details →
150 Ton Crane Solution
A winch type 150 ton crane built on a double beam bridge design with a European style electric wire rope hoist...
View Details →
200 Ton Crane Solution
A winch double beam overhead crane at the 200 ton class, published with a full parameter set: lifting load of ...
View Details →
Ceiling Crane for a Metro Vehicle Inspection and Repair Depot
Vehicle maintenance has to happen above and around a train that occupies most of the bay, ...
Read Case →
Crane for Casting Pipe Handling in a Foundry
Casting pipe has to be moved through a foundry environment that punishes equipment, and th...
Read Case →The light overhead build is rated 5 to 100 Tons, the winch overhead build 5 to 360 Tons and the gantry build up to 320 Tons. The rating for your order is stated on the quotation.
Overhead builds cover 0-49M and the gantry build reaches up to 50M. Your span is built to the measured site dimension.
Yes. The range is specified for railroad work alongside construction manufacturing and outdoor warehouse handling.
Wireless remote, cab and handheld control are available and more than one can be combined on a single crane.
Payment terms are agreed per order and confirmed in writing with the quotation.
Lead time depends on the selected build span and hoist and is confirmed with the quotation instead of being quoted as a standard figure.
Send the drawing, capacity or duty cycle you need and we will come back with the factory match, the build detail and the commercial terms.
