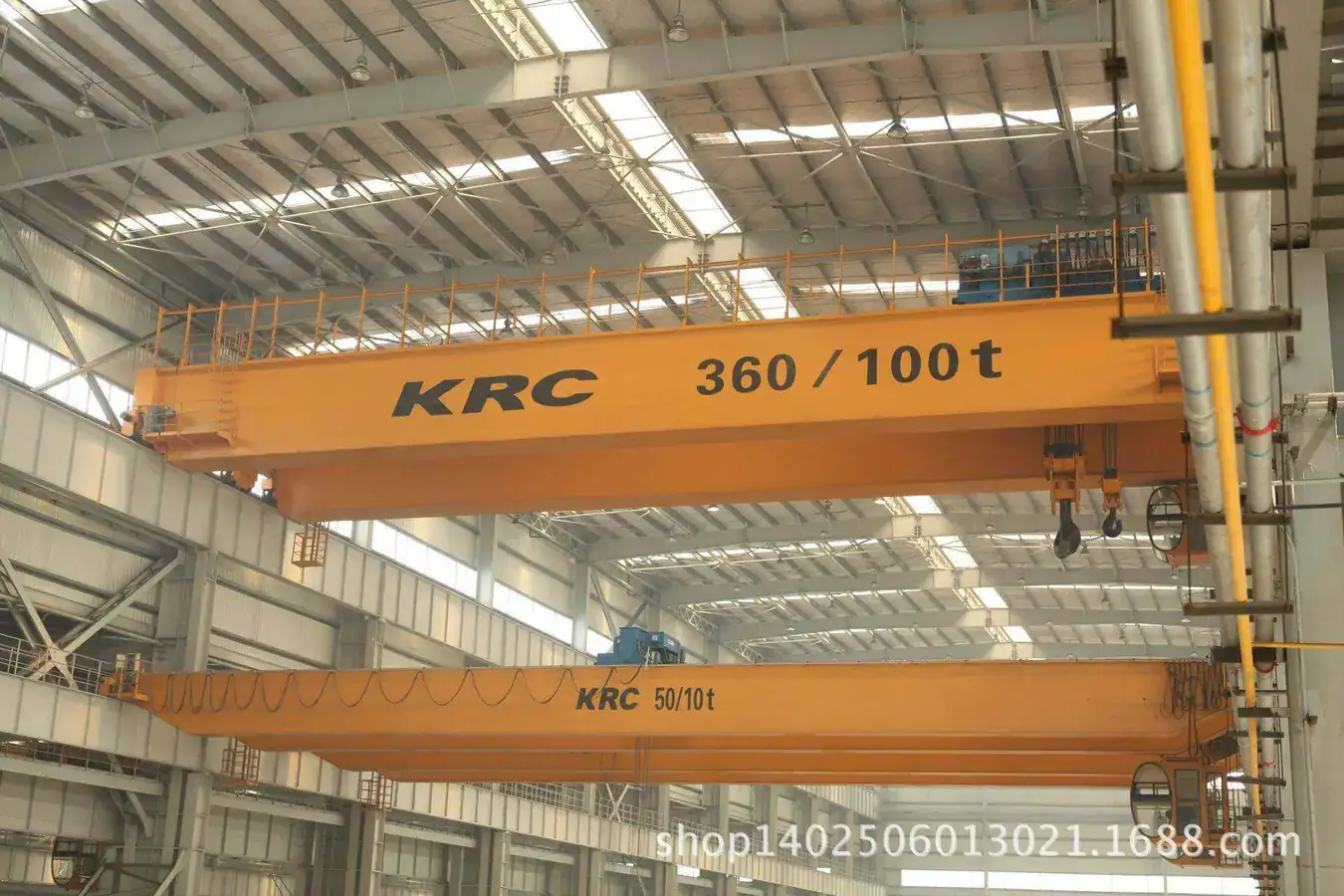

A 100 ton overhead crane range written for heavy manufacturing, shipbuilding, aerospace, metals and mining, power generation and transport work. The light double beam build lifts loads ranging from 5 to 100 tons, reaches a maximum span of 49 meters and a lifting height range of 30 to 40 meters, and is driven by a gearbox, motor and frequency converter so that a load of this size is moved steadily rather than jerked into position.
A load range from 5 to 100 tons means light daily handling and the occasional full capacity lift share one machine
A maximum span of 49 meters lets a single crane cover a shipyard or fabrication hall end to end
A lifting height range of 30 to 40 meters clears tall assemblies and stacked sections during build sequences
Frequency converter drive keeps a hundred tonne load stable which protects both the part and the structure below it
Customisation of the frame to the handling space avoids rebuilding a bay around a fixed catalogue crane
Very heavy loads swing dangerously when drive control is coarse
A fixed catalogue crane rarely matches the span of a purpose built hall
Splitting a capacity range between two cranes doubles maintenance and inspection work
Assemblies built tall cannot be turned or placed when hook height is limited
| Rated Capacity | 100 Ton |
|---|---|
| Lifting Load Range | 5 to 100 tons |
| Maximum Span | 49 meters |
| Lifting Height | 30 to 40 meters |
| Core Components | Gearbox motor and frequency converter |
| Build Options | Light double beam or heavy overhead |
Figures shown are taken from the supplying factory documentation. Anything not listed here is confirmed in writing before order.
Cost controlled choice for construction and general heavy lifting duty
Selected where lifts at full capacity are part of the normal production cycle
A single 100 ton crane removes the coordination risk of a synchronised twin lift
150 Ton Crane Solution
A winch type 150 ton crane built on a double beam bridge design with a European style electric wire rope hoist...
View Details →
200 Ton Crane Solution
A winch double beam overhead crane at the 200 ton class, published with a full parameter set: lifting load of ...
View Details →
Double Girder Overhead Crane
Double girder overhead cranes for indoor industrial facilities that move medium to heavy loads, supplied in ca...
View Details →
Electric Hoist Cranes
Electric hoist cranes custom built for industries from aerospace to energy, supplied in single girder form whe...
View Details →
Ceiling Crane for a Metro Vehicle Inspection and Repair Depot
Vehicle maintenance has to happen above and around a train that occupies most of the bay, ...
Read Case →
Crane for Casting Pipe Handling in a Foundry
Casting pipe has to be moved through a foundry environment that punishes equipment, and th...
Read Case →The light double beam build covers loads ranging from 5 to 100 tons, so routine handling and full capacity lifts use the same machine.
A maximum span of 49 meters is available and the built span is taken from your hall drawing.
Yes. The range is specified for shipbuilding along with aerospace metals mining power generation and heavy manufacturing.
The crane is powered by a gearbox, motor and frequency converter, which controls acceleration so a very heavy load stays stable.
Each crane is engineered to the project, so order quantity is agreed and confirmed with the quotation.
Manufacturing time reflects span capacity and hoist selection and is confirmed in writing with the quotation.
Send the drawing, capacity or duty cycle you need and we will come back with the factory match, the build detail and the commercial terms.
