Desktop Keyboard
KY-PC-MT-DESK Desktop Stainless Steel Keyboard 385x180mm

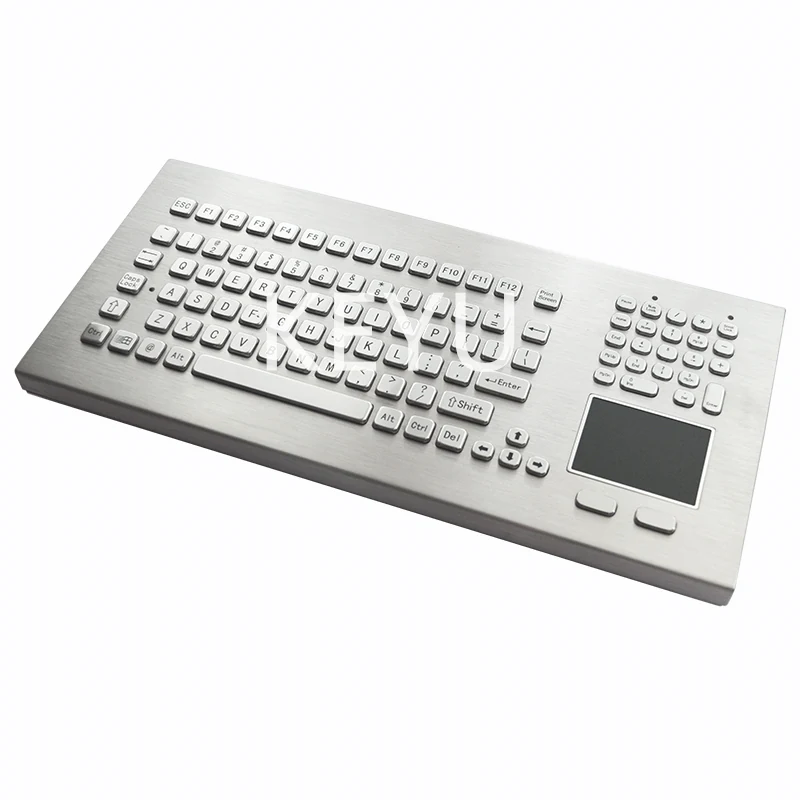

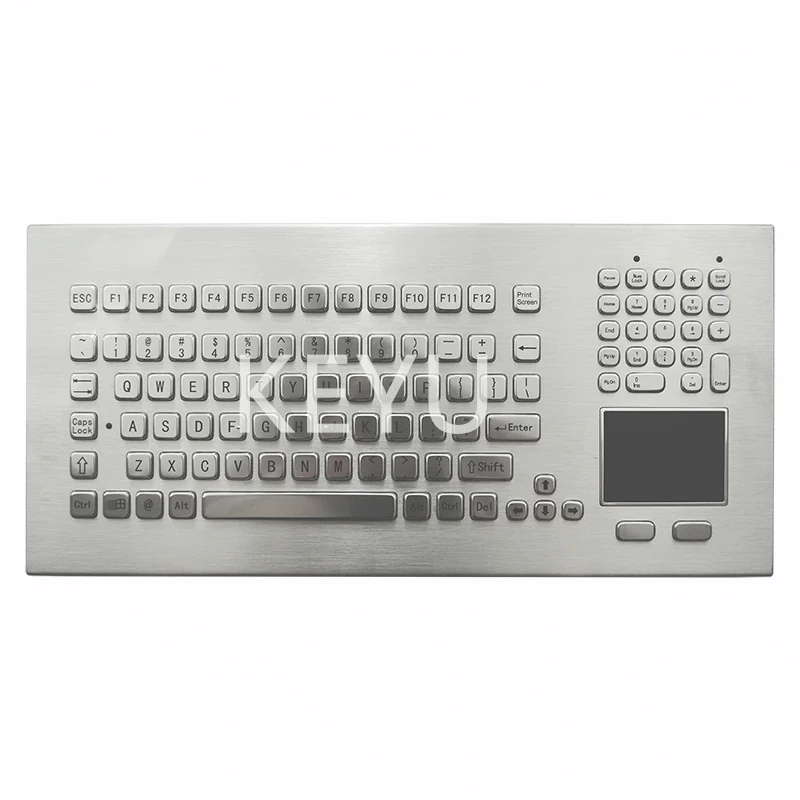

KY-PC-MT-DESK is a desktop stainless steel keyboard measuring 385*180 mm, intended for industrial work stations and control terminals that need a free-standing unit rather than a panel mount.
Product Overview
KY-PC-MT-DESK is a desktop stainless steel keyboard measuring 385*180 mm, intended for industrial work stations and control terminals that need a free-standing unit rather than a panel mount. The water and vandal proof design carries RoHS, IP65, FCC and CE approvals. Key labeling can be laser marked or etched and the compact layout is customized for free.
- Desktop mounting means no fascia cutout or panel modification is needed
- IP65 approval lets the keyboard stay on benches where liquids are handled
- 385*180 mm footprint fits a standard workstation without crowding the bench
- 2N±0.2N operation force with 1.5mm key trip suits long typing sessions
- RoHS, FCC and CE approvals support regulated market supply
- Laser or etching key labeling matches the contrast you want
Application Scenarios
- Industrial work stations on the production floor
- Control terminals in plant offices
- Factory quality and inspection benches
- Public places needing a fixed durable keyboard
- Maintenance workshops with oily or dusty hands
Who It Is For
- Plant engineering teams equipping shop floor PCs
- Control terminal integrators
- Facility managers supplying public access desks
- Distributors serving industrial IT refresh projects
Problems It Solves
- Panel mount keyboards need a cutout that a plain desk does not have
- Office keyboards are destroyed by spills and dust on the shop floor
- Printed key legends wear away under oily hands
- Light desktop keyboards slide around during hard use
Technical Features
- Stainless steel keyboard with a water and vandal proof design
- Front panel and overall dimension 385*180 mm
- Power supply DC5V±5% with working current <150mA
- Interface USB and PS/2
- Operation force 2N±0.2N with key trip 1.5mm
- Desktop mounting
- Operation temperature -10℃~55℃
Specifications
| Front panel | 385*180 mm |
|---|---|
| Overall | 385*180 mm |
| Power supply | DC5V±5% |
| Working current | <150mA |
| Interface | USB, PS/2 |
| Operation force | 2N±0.2N |
| Key trip | 1.5mm |
| Mounting way | Desktop |
| Operation temperature | -10℃~55℃ (relative humidity 20%~85%, atmospheric pressure 60~106Kpa) |
| Storage temperature | -30℃~85℃ (relative humidity 20%~85%, atmospheric pressure 60~106Kpa) |
| Compatible systems | Windows XP, 7, 8, Linux, Ubuntu, Android |
| Approvals | RoHS, IP65, FCC, CE |
Materials
- Stainless steel housing and top panel
- Stainless steel keys
Manufacturing Process
- Sheet-metal forming of the 385*180 mm desktop housing
- Brushing of the stainless steel surfaces
- Laser marking or etching of key legends
- IP65 sealing of the key field
- Assembly of the desktop base
- Keymap and force testing
Quality Control
- Operation force sampled against 2N±0.2N
- IP65 sealing checked before packing
- Housing dimensions measured against 385*180 mm
- All key outputs verified on a host PC
Approvals And Test Documentation
- RoHS
- IP65
- FCC
- CE
Customisation Options
- Compact layout customized for free
- Laser or etching procedure for key labeling
- USB or PS/2 interface build
- Housing finish and branding etched to artwork
- Cable length and exit direction
How It Compares
| Panel mount metal keyboard | Desktop mounting avoids cutting a fascia aperture for benches and existing desks |
|---|---|
| Plastic office keyboard | An IP65 rated stainless steel housing survives spills and dust that end an office keyboard |
| Short-travel metal keypad | 1.5mm key trip with 2N±0.2N force suits sustained typing rather than occasional code entry |
Use Guide
- Allow 385*180 mm of clear bench space for the unit
- Connect by USB or PS/2 to suit the workstation
- Supply DC5V±5% with at least 150mA available
- Operate within -10℃~55℃ and store within -30℃~85℃
- Wipe rather than immerse the keyboard when cleaning
Industries
Solutions
Related Reading
Related Products
16 Key Metal Desktop Keypad KY-2088A-DESK
View Specification
KY-FB-DT-B Explosion Proof Metal Desktop Keyboard With Touchpad
View Specification
KY-TB-38-C2 Stainless Steel Keypad With Waterproof Mechanical Buttons
View Specification
KY-PC-MINI-T-DESK Stainless Steel Desktop Keyboard With Trackball or Touchpad
View SpecificationQuestions About This Model
How is the keyboard installed?
It is a desktop mounting unit, so no panel cutout is required.
What size is it?
Front panel and overall dimension are both 385*180 mm.
Which approvals are held?
RoHS, IP65, FCC and CE.
What is the typing feel?
Operation force 2N±0.2N with 1.5mm key trip.
Which systems are supported?
Windows XP, 7 and 8 plus Linux, Ubuntu and Android.
Can we customize the layout?
Yes. The compact layout is customized for free with laser or etching key labeling.
Request A Quote On KY-PC-MT-DESK
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
