Desktop Keyboard
KY-PC-MINI3-DESK Stainless Steel Desktop Keyboard

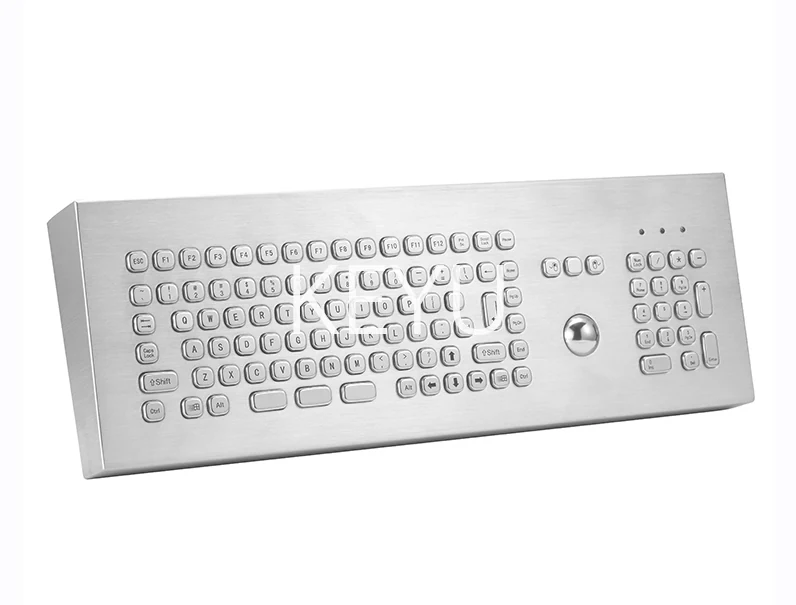

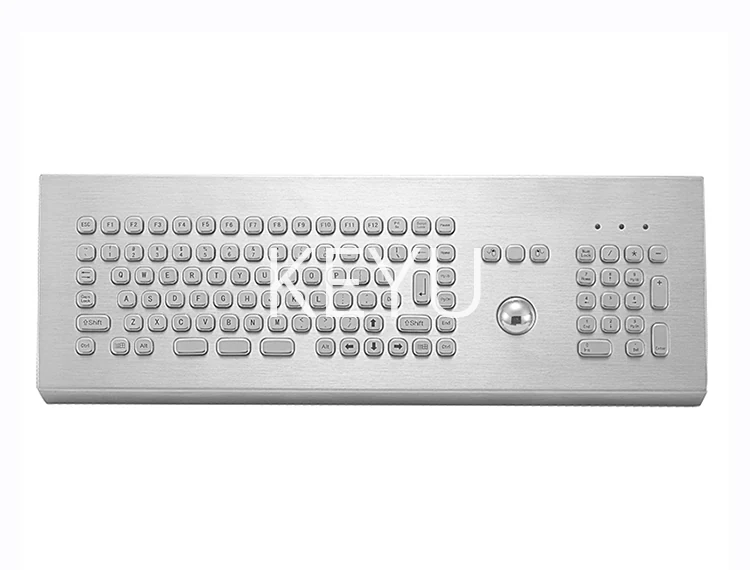

KY-PC-MINI3-DESK is a 396*121*42.3 mm stainless steel desktop keyboard for control terminals that need a fixed pointing device on the same slab. A 25mm or 38mm trackball or a 60x44mm touchpad can be integrated.
Product Overview
KY-PC-MINI3-DESK is a 396*121*42.3 mm stainless steel desktop keyboard for control terminals that need a fixed pointing device on the same slab. A 25mm or 38mm trackball or a 60x44mm touchpad can be integrated. It is used where a plastic keyboard would be destroyed by cleaning, coolant or deliberate abuse.
- Integrated pointer choice of 25mm or 38mm trackball or 60x44mm touchpad
- 2mm key travel with operation force under 3N for confident entry in gloves
- 396*121 mm slab fits narrow control desks and parking booths
- IP65 sealed for wipe down between shifts
- Stainless steel buttons and panel deter prying and scraping
- Only 42.3 mm deep so it sits flat on crowded consoles
Application Scenarios
- Control terminals in plant rooms
- Medical equipment carts and workstations
- Industrial facility operator desks
- Parking venue booths and cash desks
- Machine side data entry positions
Who It Is For
- Control system integrators
- Medical equipment OEMs
- Industrial facility maintenance teams standardising consoles
Problems It Solves
- Separate keyboard and mouse clutter a small console and get lost
- Plastic keyboards fail after repeated disinfectant cleaning
- Keyboards too deep for narrow booths and cart shelves
Technical Features
- Stainless steel desktop keyboard with water, dust and vandal resistance
- Trackball diameter 25mm or 38mm, touchpad 60x44mm
- Key travel of 2mm with operation force under 3N
- Power supply DC5V±5% with working current below 150mA
- USB and PS/2 interfaces
- Durability of 2Million
- Operation temperature -10℃~55℃
Specifications
| Front Panel | 396*121 mm |
|---|---|
| Overall Dimension | 396*121*42.3 mm |
| Key Travel | 2mm |
| Operation Force | <3N |
| Trackball Diameter | 25mm/38mm |
| Touchpad Size | 60x44mm |
| Power Supply | DC5V±5% |
| Working Current | <150mA |
| Interface | USB, PS/2 |
| Durability | ≥2Million |
| Mounting Way | Desktop |
| Approval | RoHS, IP65, FCC, CE |
Materials
- Stainless steel top panel
- Stainless steel key buttons
Manufacturing Process
- Sheet metal forming of the 396*121 mm slab
- CNC machining of key and pointer apertures
- Laser or etching of key legends
- Trackball or touchpad module fitting
- Sealing to IP65 and surface brushing
- Key travel and force calibration
Quality Control
- Key travel measured against the 2mm figure
- Operation force checked below 3N
- IP65 water test of the assembled slab
- Pointer tracking verification
- Endurance sampling to 2Million
Approvals And Test Documentation
- RoHS
- IP65
- FCC
- CE
Customisation Options
- Free layout change on the 396*121 mm panel
- Pointer selected as 25mm or 38mm trackball or 60x44mm touchpad
- Laser or etched legends in the required language
- USB or PS/2 cable and length
- Customer branding on the panel
How It Compares
| KY-PC-MINI2-DESK | The 396 mm body adds width over the 326 mm model for a larger key field |
|---|---|
| Plastic desktop keyboard | The sealed stainless slab survives cleaning agents that craze moulded housings |
Use Guide
- Check console depth for the 42.3 mm height
- Select the pointer type at order stage as it is built in
- Connect by USB or PS/2 and supply DC5V±5%
- Operate within -10℃~55℃
- Wipe the slab clean rather than immersing it
Industries
Solutions
Related Reading
Related Products
16 Key Metal Desktop Keypad KY-2088A-DESK
View Specification
KY-FB-DT-B Explosion Proof Metal Desktop Keyboard With Touchpad
View Specification
KY-TB-38-C2 Stainless Steel Keypad With Waterproof Mechanical Buttons
View Specification
KY-PC-MINI-T-DESK Stainless Steel Desktop Keyboard With Trackball or Touchpad
View SpecificationQuestions About This Model
Which pointing devices can be fitted?
A 25mm or 38mm trackball, or a 60x44mm touchpad.
How far do the keys travel?
Key travel is 2mm with operation force under 3N.
Is it sealed?
It is listed with RoHS, IP65, FCC and CE approvals.
What is the overall size?
396*121*42.3 mm.
Can the layout be changed?
Yes, layout changes are made free of charge and legends are laser marked or etched.
Request A Quote On KY-PC-MINI3-DESK
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
