Desktop Keyboard
KY-PC-MINI2-DESK Compact Metal Desktop Keyboard
KY-PC-MINI2-DESK is the 326*121*42.3mm member of the desktop slab family, for workstations where console width is the binding constraint.
Product Overview

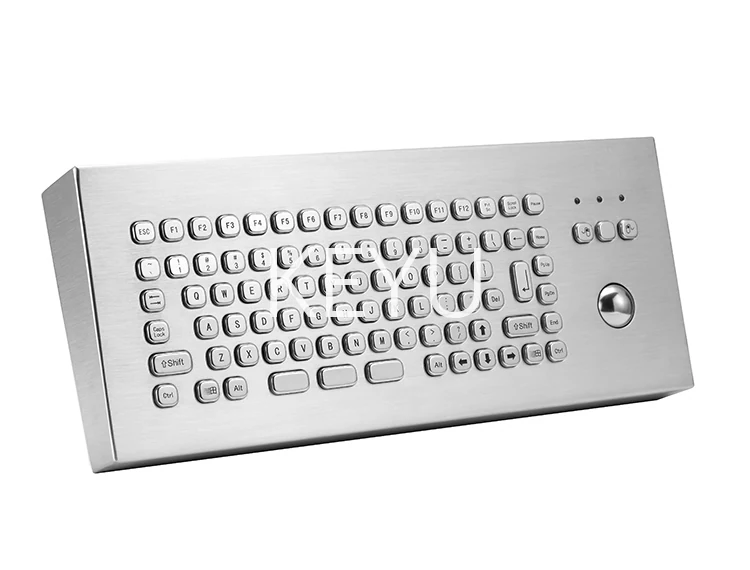

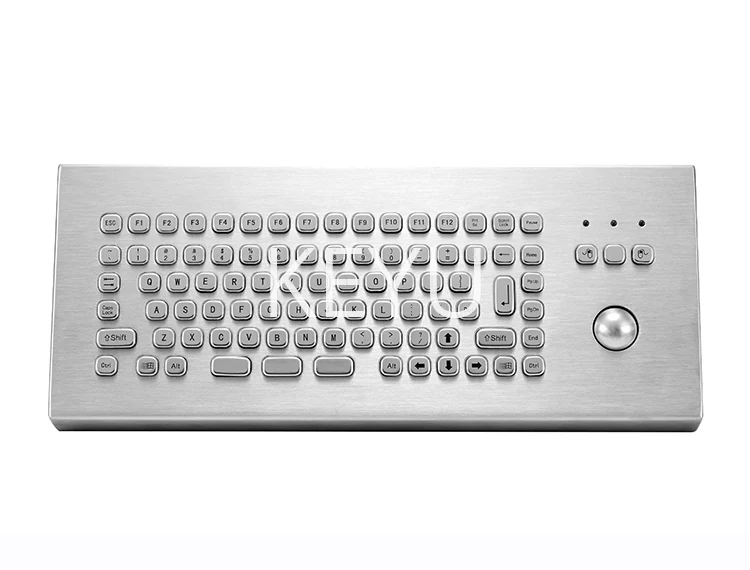

KY-PC-MINI2-DESK is the 326*121*42.3mm member of the desktop slab family, for workstations where console width is the binding constraint. It keeps the stainless steel buttons, 2mm key travel and optional integrated pointer of the larger models. Industrial workstation and kiosk builders use it where a full width keyboard will not sit on the shelf.
- 326 mm width fits shelves that cannot take a full size keyboard
- 2mm key travel and under 3N force give clear feedback through gloves
- IP65 sealed stainless slab for daily wipe down
- Integrated 25mm or 38mm trackball or 60x44mm touchpad option
- USB or PS/2 connection to suit older workstation hardware
Application Scenarios
- Industrial work stations with narrow shelves
- Control terminals in equipment rooms
- Kiosk service and maintenance positions
- Medical equipment trolleys
- Machine side operator desks
Who It Is For
- Industrial workstation builders
- Kiosk solution providers
- Medical equipment integrators
- Control room fitters replacing consumer keyboards
Problems It Solves
- Console shelves too narrow for a standard keyboard plus a mouse
- Loose mice sliding off equipment trolleys
- Cleaning agents degrading plastic keyboard housings
Technical Features
- Stainless steel desktop keyboard, water, dust and vandal resistant
- Trackball diameter 25mm or 38mm and touchpad 60x44mm options
- Key travel 2mm and operation force under 3N
- DC5V±5% supply with working current below 150mA
- USB and PS/2 interfaces
- Durability of 2Million
Specifications
| Front Panel | 326*121 mm |
|---|---|
| Overall Dimension | 326*121*42.3mm |
| Key Travel | 2mm |
| Operation Force | <3N |
| Trackball Diameter | 25mm/38mm |
| Touchpad Size | 60x44mm |
| Power Supply | DC5V±5% |
| Working Current | <150mA |
| Interface | USB, PS/2 |
| Durability | ≥2Million |
| Operation Temperature | -10℃~55℃ |
| Approval | RoHS, IP65, FCC, CE |
Materials
- Stainless steel panel
- Stainless steel buttons
Manufacturing Process
- Panel forming to the 326*121 mm footprint
- CNC key and pointer aperture machining
- Laser or etched legend marking
- Pointer module integration
- Sealing, brushing and final test
Quality Control
- Force and travel verification on sample keys
- IP65 sealing test
- Pointer function check
- Interface test on USB and PS/2
Approvals And Test Documentation
- RoHS
- IP65
- FCC
- CE
Customisation Options
- Free layout customisation on the compact panel
- Choice of trackball or touchpad module
- Language specific legend etching
- Cable exit and length to suit the console
How It Compares
| KY-PC-MINI3-DESK | 70 mm narrower at 326 mm for shelves that cannot take the 396 mm slab |
|---|---|
| KY-PC-F3-DESK | Omits the separate numeric block to keep the footprint short |
Use Guide
- Measure shelf width against the 326 mm body before ordering
- Specify the pointer module at order stage
- Supply DC5V±5% over USB or PS/2
- Keep the working area within -10℃~55℃
Industries
Solutions
Related Reading
Related Products
16 Key Metal Desktop Keypad KY-2088A-DESK
View Specification
KY-FB-DT-B Explosion Proof Metal Desktop Keyboard With Touchpad
View Specification
KY-TB-38-C2 Stainless Steel Keypad With Waterproof Mechanical Buttons
View Specification
KY-PC-MINI-T-DESK Stainless Steel Desktop Keyboard With Trackball or Touchpad
View SpecificationQuestions About This Model
How wide is it?
The overall dimension is 326*121*42.3mm.
Can I have a touchpad instead of a trackball?
Yes, a 60x44mm touchpad is offered alongside 25mm and 38mm trackballs.
Is it sealed against water?
It is listed with RoHS, IP65, FCC and CE approvals.
What key feel does it give?
2mm of key travel with operation force under 3N.
Which operating systems work with it?
Windows XP, Windows 7, Windows 8, Linux, Ubuntu and Android.
Request A Quote On KY-PC-MINI2-DESK
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
