KY-PC-H-DESK Stainless Steel Desktop Keyboard With Cherry Mechanical Switches

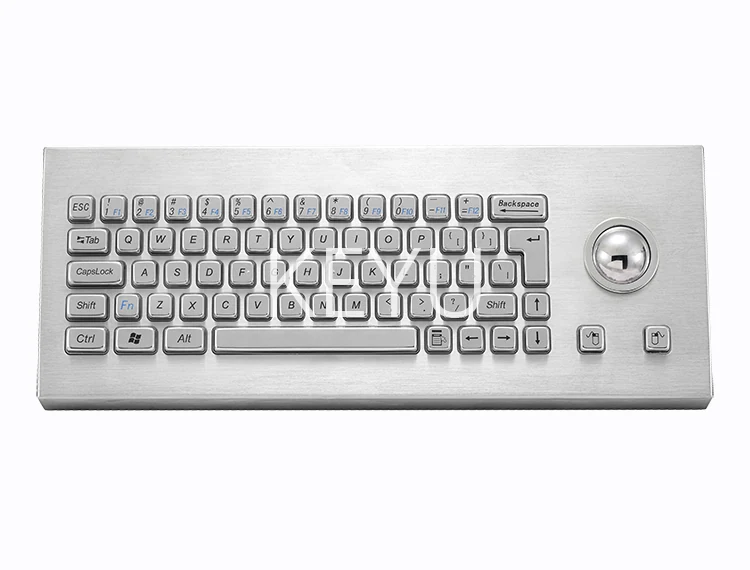

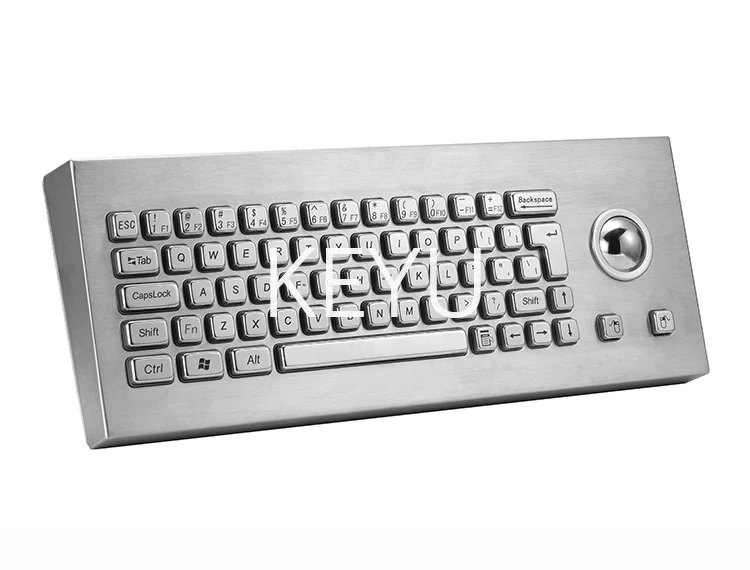

KY-PC-H-DESK is a desktop stainless steel keyboard fitted with Cherry mechanical keyswitches, for operators who type at a control terminal all shift.
Product Overview
KY-PC-H-DESK is a desktop stainless steel keyboard fitted with Cherry mechanical keyswitches, for operators who type at a control terminal all shift. It measures 392.5*149.5*42.6 mm and can be built with a 25mm or 38mm trackball or a 60x44mm touchpad. The vandal proof stainless construction and IP65 rating let it sit in a factory or public area without a protective cover.
- Cherry mechanical keyswitch gives a consistent feel over long typing shifts
- Desktop format needs no fascia cutout or mounting kit
- Choice of 25mm or 38mm trackball or a 60x44mm touchpad on one chassis
- Water, dust and vandal resistant with RoHS, IP65, FCC and CE approvals
- 392.5*149.5 mm footprint holds a full layout rather than a compressed one
- Durability ≥2Million supports continuous multi-shift operation
Application Scenarios
- Industrial work stations with all-shift data entry
- Control terminals in plant and utility rooms
- Factory supervisor desks
- Kiosks where a loose keyboard is acceptable
- Public place workstations needing a rugged surface
Who It Is For
- Plant operators equipping control rooms
- Industrial work station integrators
- Facility managers replacing office keyboards on the floor
- Kiosk builders needing a desktop variant
Problems It Solves
- Membrane keyboards that feel inconsistent after months of heavy typing
- Office keyboards that fail when dust or liquid reaches the switches
- Panel mount units that cannot be used on a bench
- Pointing device standardization across sites with different preferences
Technical Features
- Stainless steel desktop keyboard with Cherry mechanical keyswitch
- Very rugged vandal proof design, water, dust and vandal resistant
- Trackball diameter 25mm/38mm or touchpad 60x44mm
- Key travel 2mm with operation force <3N
- Power Supply DC5V±5% with Working Current <150mA
- Operation Temperature -10℃~55℃ and Storage Temperature -30℃~85℃
Specifications
| Front Panel | 392.5*149.5 mm |
|---|---|
| Overall | 392.5*149.5*42.6 mm |
| Keyswitch | Cherry mechanical keyswitch |
| Trackball Diameter | 25mm/38mm |
| Touchpad Size | 60x44mm |
| Key Travel | 2mm |
| Operation Force | <3N |
| Power Supply | DC5V±5% |
| Working Current | <150mA |
| Durability | ≥2Million |
| Mounting Way | Desktop |
| Approval | RoHS, IP65, FCC, CE |
Materials
- Stainless steel panel and buttons
- Cherry mechanical keyswitch modules
Manufacturing Process
- Panel forming of the 392.5*149.5 mm stainless face
- CNC machining of the switch plate and pointing device aperture
- Cherry keyswitch seating and soldering
- Laser or etching of key legends
- Desktop housing assembly to the 42.6 mm profile
Quality Control
- Switch actuation test on every Cherry keyswitch position
- Key travel confirmed at 2mm and force under 3N
- IP65 sealing verification
- Pointing device tracking test on trackball and touchpad builds
Approvals And Test Documentation
- RoHS
- IP65
- FCC
- CE
Customisation Options
- Free layout customization on the stainless button field
- Trackball 25mm or 38mm or touchpad 60x44mm
- Laser or etching key labeling
- USB or PS/2 cable configuration
- Customer branding on the panel
How It Compares
| KY-PC-H panel mount | The desktop build ships ready to place on a bench and adds a pointing device that the panel version does not carry |
|---|---|
| Metal keyboard without Cherry switches | Cherry mechanical keyswitches hold a consistent actuation feel across long shifts of continuous typing |
Use Guide
- Allow 42.6 mm height clearance on the bench
- Choose trackball or touchpad at order stage
- Operate within -10℃~55℃
- Wipe the stainless surface clean; the unit is IP65 rated
Industries
Solutions
Related Reading
Related Products
16 Key Metal Desktop Keypad KY-2088A-DESK
View Specification
KY-FB-DT-B Explosion Proof Metal Desktop Keyboard With Touchpad
View Specification
KY-TB-38-C2 Stainless Steel Keypad With Waterproof Mechanical Buttons
View Specification
KY-PC-MINI-T-DESK Stainless Steel Desktop Keyboard With Trackball or Touchpad
View SpecificationQuestions About This Model
What switches does KY-PC-H-DESK use?
Cherry mechanical keyswitches.
What are the overall dimensions?
392.5*149.5*42.6 mm.
Trackball or touchpad?
Trackball diameter 25mm/38mm or touchpad 60x44mm.
Is it sealed?
It is water, dust and vandal resistant with IP65 approval.
What is the key travel?
2mm, with operation force under 3N.
Does it need a panel cutout?
No, the mounting way is desktop.
Request A Quote On KY-PC-H-DESK
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
