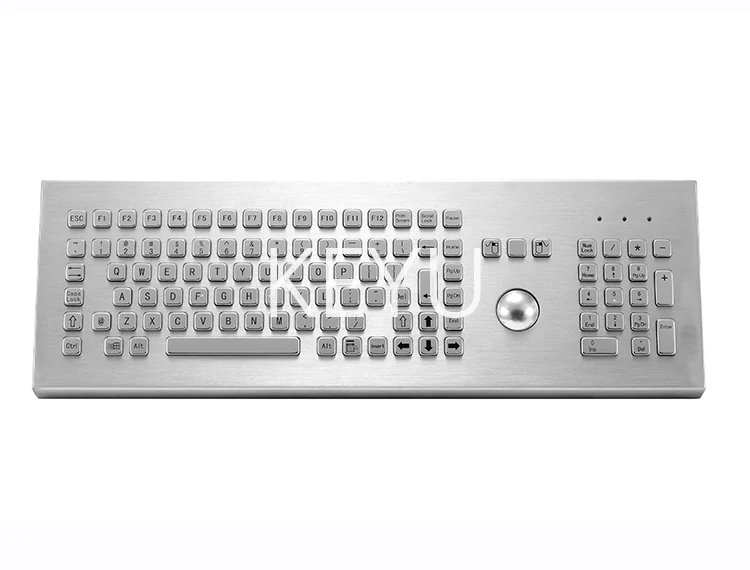

KY-PC-F3-DESK Desktop Keyboard With Numeric Keypad

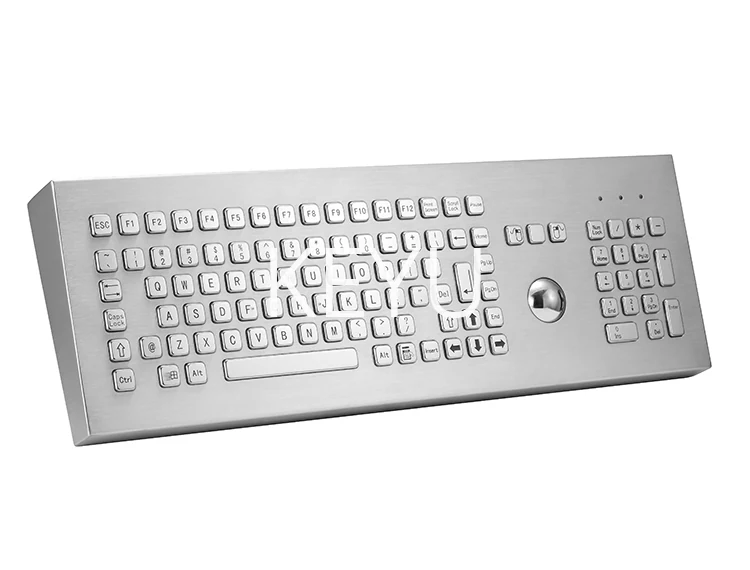

KY-PC-F3-DESK is the full width slab in the desktop family, 502*166.5*44.5 mm, with a separate numeric keypad for data entry roles.
Product Overview
KY-PC-F3-DESK is the full width slab in the desktop family, 502*166.5*44.5 mm, with a separate numeric keypad for data entry roles. Stainless steel buttons, IP65 sealing and an optional integrated pointer make it suitable for factory floors and public places. It is chosen where operators enter long numeric strings all day.
- Dedicated numeric keypad speeds repetitive data entry
- Full 502*166.5 mm slab keeps the layout close to office keyboard spacing
- IP65 sealing supports factory and public place installation
- Optional 25mm or 38mm trackball or 60x44mm touchpad on the same panel
- 2mm key travel with operation force under 3N
- Durability of 2Million actuations
Application Scenarios
- Industrial work stations handling order and batch numbers
- Control terminals on the production floor
- Factories and public places with shared terminals
- Kiosk service positions
- Medical equipment data entry desks
Who It Is For
- Manufacturing IT teams specifying floor terminals
- Kiosk solution providers
- Medical equipment integrators
- Public sector terminal operators
Problems It Solves
- Compact keyboards force numeric entry through the top row
- Office keyboards fail under dust, spills and shared public use
- Separate mice go missing from shared workstations
Technical Features
- Stainless steel desktop keyboard with numeric keypad
- Water, dust and vandal resistant construction
- Trackball diameter 25mm or 38mm and touchpad 60x44mm
- Key travel 2mm, operation force under 3N
- DC5V±5% supply, working current below 150mA
- USB and PS/2 interfaces
- Operation temperature -10℃~55℃
Specifications
| Front Panel | 502*166.5 mm |
|---|---|
| Overall Dimension | 502*166.5*44.5 mm |
| Key Travel | 2mm |
| Operation Force | <3N |
| Trackball Diameter | 25mm/38mm |
| Touchpad Size | 60x44mm |
| Power Supply | DC5V±5% |
| Working Current | <150mA |
| Interface | USB, PS/2 |
| Durability | ≥2Million |
| Mounting Way | Desktop |
| Approval | RoHS, IP65, FCC, CE |
Materials
- Stainless steel panel
- Stainless steel key buttons
Manufacturing Process
- Sheet metal forming of the 502*166.5 mm panel
- CNC machining of the alphanumeric and numeric key fields
- Laser or etching of key legends
- Pointer module installation
- IP65 sealing and brushing
- Assembly and full key test
Quality Control
- Every key tested for response across both key blocks
- Travel and force sampling to 2mm and under 3N
- IP65 water test
- Endurance sampling to the 2Million rating
Approvals And Test Documentation
- RoHS
- IP65
- FCC
- CE
Customisation Options
- Layout adjusted free of charge including the numeric block
- Choice of trackball or touchpad
- Language specific etched legends
- USB or PS/2 lead with specified length
- Panel branding
How It Compares
| KY-PC-DT-DESK | Adds a numeric keypad that the 416 mm layout does not carry |
|---|---|
| KY-PC-MINI3-DESK | Wider at 502 mm for full spacing rather than a compact console fit |
Use Guide
- Allow 502 mm of desk width and 44.5 mm of height
- Choose the pointer type before production
- Connect over USB or PS/2 with DC5V±5%
- Clean with a damp cloth after each shift in dusty areas
Industries
Solutions
Related Reading
Related Products
16 Key Metal Desktop Keypad KY-2088A-DESK
View Specification
KY-FB-DT-B Explosion Proof Metal Desktop Keyboard With Touchpad
View Specification
KY-TB-38-C2 Stainless Steel Keypad With Waterproof Mechanical Buttons
View Specification
KY-PC-MINI-T-DESK Stainless Steel Desktop Keyboard With Trackball or Touchpad
View SpecificationQuestions About This Model
Does it include a numeric keypad?
Yes. It is supplied as a desktop keyboard with numeric keypad.
What is the footprint?
502*166.5*44.5 mm overall.
Can a pointer be built in?
A 25mm or 38mm trackball or a 60x44mm touchpad can be fitted.
What approvals does it carry?
RoHS, IP65, FCC and CE.
How many cycles are the keys rated for?
2Million.
Request A Quote On KY-PC-F3-DESK
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
