Desktop Keyboard
KY-PC-F2-LED-DESK Backlit Stainless Steel Desktop Keyboard

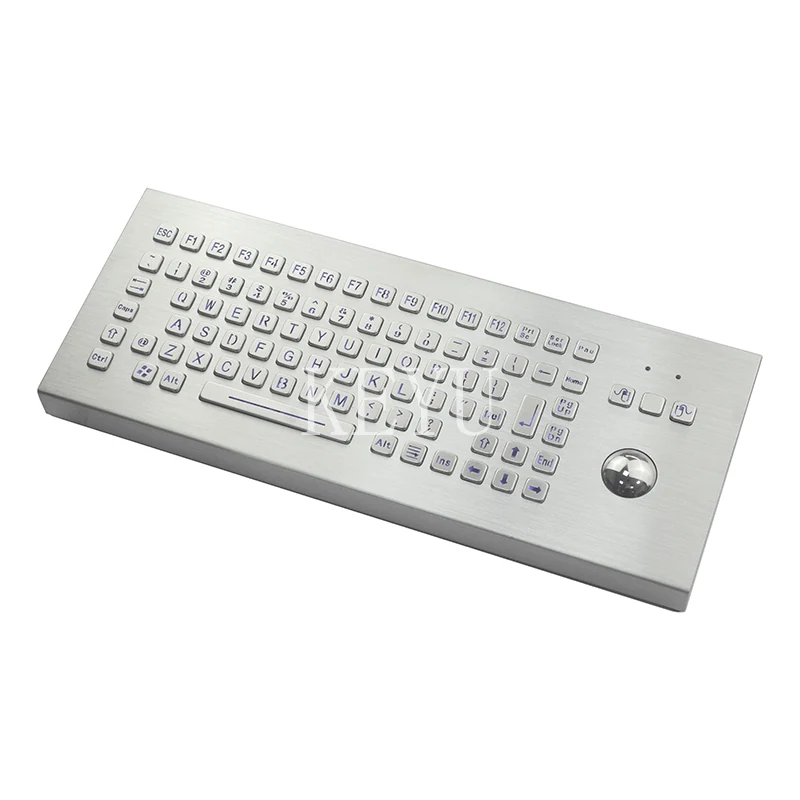

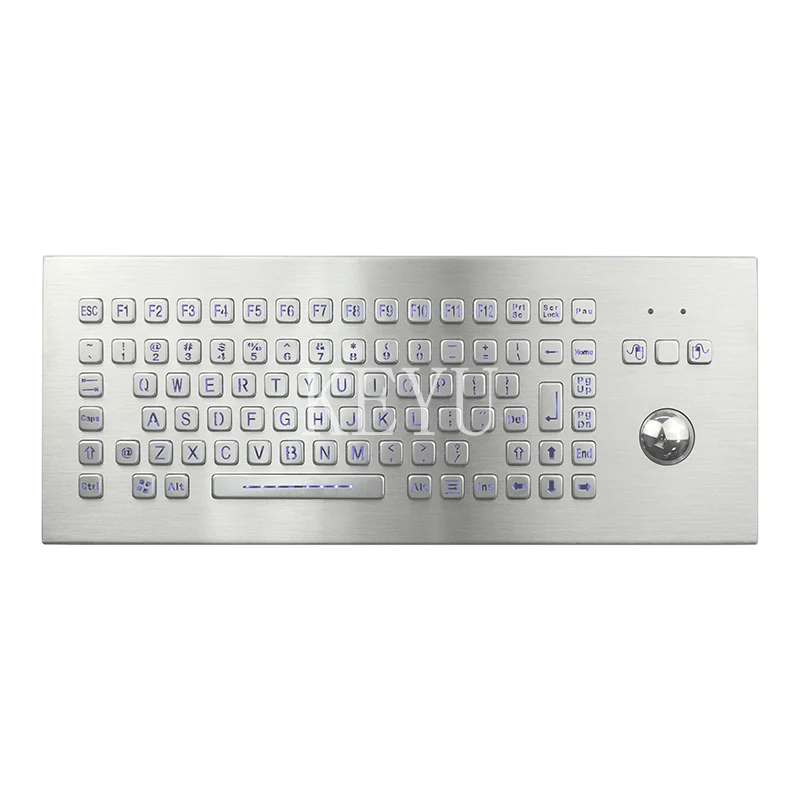

KY-PC-F2-LED-DESK is a desktop industrial keyboard whose hollow stainless steel buttons carry a backlight so legends stay readable in darkness.
Product Overview
KY-PC-F2-LED-DESK is a desktop industrial keyboard whose hollow stainless steel buttons carry a backlight so legends stay readable in darkness. The SUS304 brushed panel is anti riot and anti corrosion and keyboard layouts of various countries are built to customer needs. It is chosen for control rooms and night shift stations where operators work in low light.
- Stainless steel hollow buttons with backlight function for low light reading
- Desktop format needs no panel cutout
- Keyboard layouts of various countries customized to customer needs
- Light 1.2N+/-0.1N contact force with a 1.5mm key trip for comfortable typing
- SUS304 brushed stainless steel panel and buttons resist riot damage and corrosion
- Working current under 100mA including the backlit key field
Application Scenarios
- Control room desks operating in low light
- Night shift monitoring stations
- Security and surveillance consoles
- Broadcast and studio control desks
- Industrial workstations in dim plant areas
- Command desks needing a fixed rugged keyboard
Who It Is For
- Control room system integrators
- Security and surveillance equipment suppliers
- Industrial workstation builders
- Operators running continuous night shifts
Problems It Solves
- Unlit keyboards force operators to use torches in dark control rooms
- Office keyboards wear out under continuous shift operation
- Layouts do not match the operator language in export markets
- Heavy keys tire operators over long monitoring shifts
Technical Features
- Hollow stainless steel keys with backlight function
- Key size 14*14*4.5/14*28*4.5/100*14*4.5mm
- Key trip 1.5mm with key strength 1.2N+/-0.1N contact force
- Power supply 5V plus or minus 5 percent and current under 100mA
- Durability above 2 million operations
- Net weight 2.6Kg and gross weight 2.8Kg
- Operation temperature -10 to 45 degrees C and storage -30 to 85 degrees C
Specifications
| Power supply | 5V±5% |
|---|---|
| Working current | <100mA |
| Durability | >2 million |
| Product interface | USB / PS/2 |
| Key size | 14*14*4.5/14*28*4.5/100*14*4.5mm |
| Key Trip | 1.5mm |
| Key strength | 1.2N+/-0.1N(Contact Force) |
| Mounting Way | Rear mounting or Front mounting |
| Net weight | 2.6Kg |
| Gross weight | 2.8Kg |
| Operation Temperature | -10℃~45℃ |
| Storage Temperature | -30℃~85℃ |
Materials
- SUS304 brushed stainless steel panel
- SUS304 brushed stainless steel hollow buttons
Manufacturing Process
- SUS304 panel forming and brushing
- CNC machining of hollow key characters for light transmission
- LED backlight board assembly under the key field
- Desktop housing forming and fitting
- Key travel setting to 1.5mm
- USB and PS/2 functional and backlight test
Quality Control
- Backlight uniformity inspection across the key field
- Key contact force verified at 1.2N+/-0.1N
- Travel confirmed at 1.5mm
- Weight check against 2.6Kg net
- Life sampling above 2 million operations
Customisation Options
- Keyboard layout of various countries to customer needs
- Hollow character content for the backlit keys
- USB or PS/2 output
- Desktop housing finish
- Cable length for the console
How It Compares
| KY-PC-F2-DESK | Hollow stainless keys with a backlight function for dark rooms rather than the unlit desktop version |
|---|---|
| Plastic backlit keyboards | An anti riot SUS304 panel survives knocks that crack moulded backlit boards |
| Panel mount keyboards | A 2.6Kg desktop unit sits on the console with no enclosure work |
Use Guide
- Place on a desk allowing for the 2.6Kg net weight
- Connect over USB or PS/2
- Specify the country layout and hollow characters at order
- Operate between -10 and 45 degrees C
- Store between -30 and 85 degrees C
Industries
Solutions
Related Reading
Related Products
16 Key Metal Desktop Keypad KY-2088A-DESK
View Specification
KY-FB-DT-B Explosion Proof Metal Desktop Keyboard With Touchpad
View Specification
KY-TB-38-C2 Stainless Steel Keypad With Waterproof Mechanical Buttons
View Specification
KY-PC-MINI-T-DESK Stainless Steel Desktop Keyboard With Trackball or Touchpad
View SpecificationQuestions About This Model
Is KY-PC-F2-LED-DESK backlit?
Yes it uses stainless steel hollow buttons with a backlight function.
What is the key travel?
1.5mm with a key strength of 1.2N+/-0.1N.
What key sizes are used?
14*14*4.5 14*28*4.5 and 100*14*4.5mm.
Can the layout be changed?
Keyboard layouts of various countries are customized according to customer needs.
What does it weigh?
Net weight 2.6Kg and gross weight 2.8Kg.
Which interfaces are available?
USB and PS/2.
Request A Quote On KY-PC-F2-LED-DESK
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
