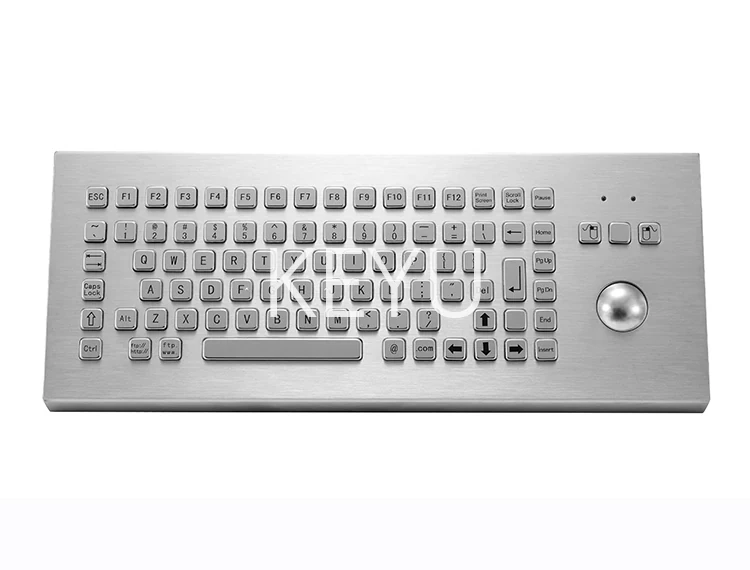

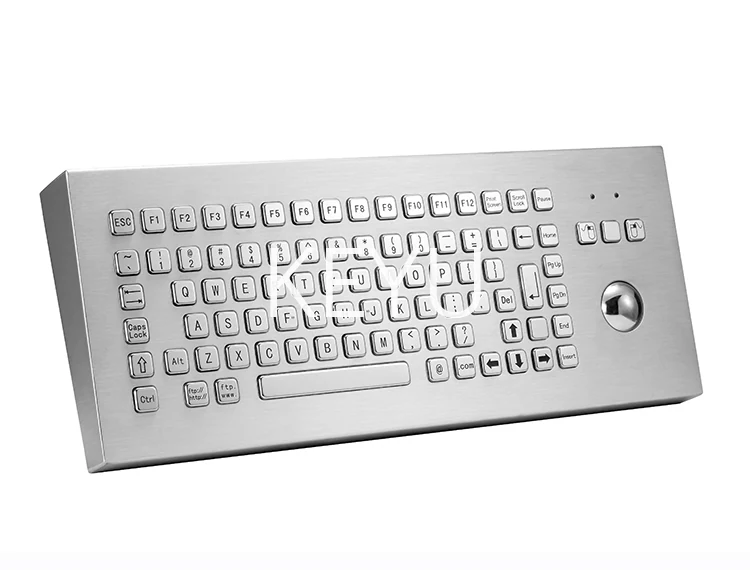

KY-PC-F2-DESK Desktop Metal Keyboard With Trackball
KY-PC-F2-DESK is an 89 key stainless steel desktop keyboard with an integrated pointing device for industrial work stations and control terminals.
Product Overview
KY-PC-F2-DESK is an 89 key stainless steel desktop keyboard with an integrated pointing device for industrial work stations and control terminals. Its 416*166.5*44.5mm body is water dust and vandal resistant and needs no panel cutout. It suits sites that need the fuller key count of a workstation board in a rugged bench unit.
- 89 keys give a fuller working layout than compact rugged boards
- Desktop housing removes all enclosure and cutout work
- Water dust and vandal resistant build for factories and public places
- 38mm trackball or 60x44mm touchpad as the pointing option
- Approvals cover RoHS IP65 FCC and CE
- Laser or etching key labeling for permanent legends
Application Scenarios
- Industrial work stations
- Control terminals in plant rooms
- Factory floor supervision desks
- Any public places with open access terminals
- Maintenance and calibration benches
- Shift handover stations needing a durable board
Who It Is For
- Industrial workstation OEMs
- Control system integrators
- Factory engineering teams
- Public facility operators
Problems It Solves
- Compact rugged keyboards lack keys that operators need
- Office keyboards fail in dusty or wet plant areas
- Panel mounting requires enclosure modification
- Loose mice slide off benches and are lost
Technical Features
- 89 keys with 2mm key trip and operation force under 3N
- Front panel 416*166.5mm with overall 416*166.5*44.5mm
- Trackball diameter 38mm or touchpad diameter 60x44mm
- DC5V plus or minus 5 percent supply with current under 150mA
- USB and PS/2 interface
- Durability of at least 2 Million operations
Specifications
| Keys | 89 |
|---|---|
| Power supply | DC5V±5% |
| Working current | <150mA |
| Interface | USB、PS/2 |
| Key trip | 2mm |
| Operation force | <3N |
| Durability | ≥2 Million |
| Front panel | 416*166.5mm |
| Overall | 416*166.5*44.5mm |
| Trackball diameter | 38mm |
| Touchpad diameter | 60x44mm |
| Approvals | RoHS、IP65、FCC、CE |
Materials
- Stainless steel panel
- Stainless steel buttons
Manufacturing Process
- Sheet metal forming of the 416*166.5mm desktop panel
- CNC punching of the 89 key apertures
- Laser or etching procedure for key labeling
- 38mm trackball or touchpad module fitting
- Desktop housing assembly and sealing
- USB and PS/2 interface test
Quality Control
- Key travel measured at 2mm
- Operation force confirmed under 3N
- Pointing device tracking test
- Sealing check against the IP65 approval
- Life sampling to at least 2 Million operations
Approvals And Test Documentation
- RoHS
- IP65
- FCC
- CE
Customisation Options
- Free layout customization of the 89 key field
- 38mm trackball or 60x44mm touchpad option
- Laser or etching key labeling
- USB or PS/2 output
- Legend language for the destination market
How It Compares
| KY-PC-D-DESK | 89 keys on a 416*166.5mm panel rather than 66 keys on the narrower 416*145mm body |
|---|---|
| Office desktop keyboards | A water dust and vandal resistant steel build survives factory and public use |
| Panel mount keyboards | The desktop housing needs no fascia cutting or mounting hardware |
Use Guide
- Allow 416*166.5*44.5mm of bench space
- Connect over USB or PS/2
- Choose the 38mm trackball or the 60x44mm touchpad at order
- Operate between -10 and 55 degrees C
- Store between -30 and 85 degrees C
Industries
Solutions
Related Reading
Related Products
16 Key Metal Desktop Keypad KY-2088A-DESK
View Specification
KY-FB-DT-B Explosion Proof Metal Desktop Keyboard With Touchpad
View Specification
KY-TB-38-C2 Stainless Steel Keypad With Waterproof Mechanical Buttons
View Specification
KY-PC-MINI-T-DESK Stainless Steel Desktop Keyboard With Trackball or Touchpad
View SpecificationQuestions About This Model
How many keys does KY-PC-F2-DESK have?
89 keys.
What pointing options are available?
A 38mm trackball or a 60x44mm touchpad.
What is the overall size?
416*166.5*44.5mm with a 416*166.5mm front panel.
Which approvals are listed?
RoHS IP65 FCC and CE.
What is the key travel?
2mm with an operation force under 3N.
Which systems are compatible?
Window XP Window 7 Window 8 Linux Ubuntu and Android.
Request A Quote On KY-PC-F2-DESK
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
