KY-PC-F1-DESK Raised Metal Desktop Keyboard

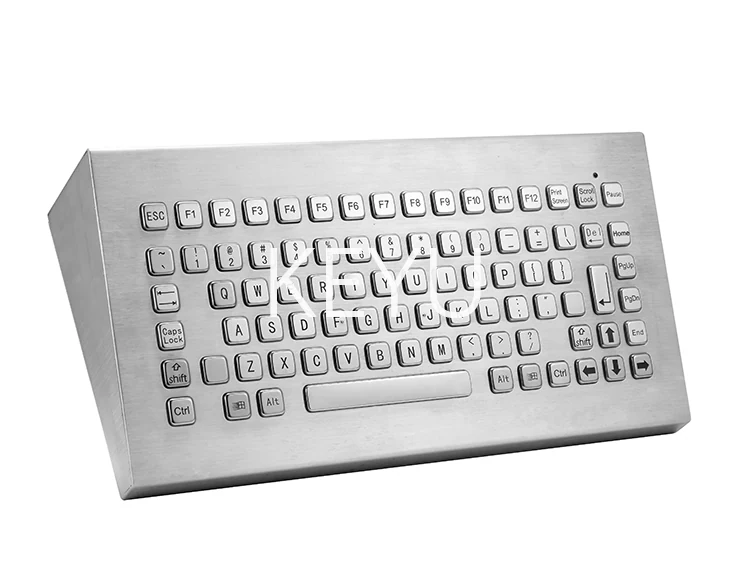

KY-PC-F1-DESK is a 346*175.5*70 mm stainless steel desktop keyboard with a deeper 70 mm body that raises the key plane for standing operators.
Product Overview
KY-PC-F1-DESK is a 346*175.5*70 mm stainless steel desktop keyboard with a deeper 70 mm body that raises the key plane for standing operators. The compact 346 mm width keeps it usable on a console while the depth of 175.5 mm leaves room for an integrated pointer. It is aimed at control terminals, factories and public places.
- 70 mm body height raises the key plane for standing use at a console
- 346 mm width suits control desks that cannot take a full width slab
- IP65 sealed stainless construction for public placement
- Optional 25mm or 38mm trackball or 60x44mm touchpad
- 2mm key travel with operation force under 3N
Application Scenarios
- Control terminals operated while standing
- Factory floor entry stations
- Public place information desks
- Industrial work stations near machinery
- Shift handover terminals
Who It Is For
- Control terminal integrators
- Factory automation contractors
- Public facility terminal operators
Problems It Solves
- Flat keyboards are uncomfortable for standing operators
- Consumer keyboards are torn off public consoles
- Cable clutter from a separate mouse on a busy desk
Technical Features
- Stainless steel desktop keyboard, water, dust and vandal resistant
- Overall height of 70 mm for a raised key plane
- Trackball diameter 25mm or 38mm and touchpad 60x44mm
- Key travel 2mm and operation force under 3N
- DC5V±5% supply, working current below 150mA
- USB and PS/2 interfaces
Specifications
| Front Panel | 346*175.5 mm |
|---|---|
| Overall Dimension | 346*175.5*70 mm |
| Key Travel | 2mm |
| Operation Force | <3N |
| Trackball Diameter | 25mm/38mm |
| Touchpad Size | 60x44mm |
| Power Supply | DC5V±5% |
| Working Current | <150mA |
| Interface | USB, PS/2 |
| Durability | ≥2Million |
| Operation Temperature | -10℃~55℃ |
| Approval | RoHS, IP65, FCC, CE |
Materials
- Stainless steel top panel
- Stainless steel buttons
Manufacturing Process
- Forming of the deeper 70 mm desktop housing
- CNC machining of key apertures in the 346*175.5 mm panel
- Laser or etching of legends
- Pointer module fitting
- Sealing and surface brushing
Quality Control
- Housing height and squareness check
- Key travel and force sampling
- IP65 sealing verification
- Full key response test before packing
Approvals And Test Documentation
- RoHS
- IP65
- FCC
- CE
Customisation Options
- Free layout change on the 346*175.5 mm panel
- Trackball or touchpad selection
- Etched or laser legends by language
- Cable exit direction for the console
How It Compares
| KY-PC-MINI2-DESK | The 70 mm body stands taller than the 42.3mm slab for standing operators |
|---|---|
| KY-PC-F3-DESK | Narrower at 346 mm where the 502 mm layout will not fit the desk |
Use Guide
- Confirm the console can take a 70 mm tall unit
- Specify pointer type before manufacture
- Supply DC5V±5% over USB or PS/2
- Run within -10℃~55℃ and store within -30℃~85℃
Industries
Solutions
Related Reading
Related Products
16 Key Metal Desktop Keypad KY-2088A-DESK
View Specification
KY-FB-DT-B Explosion Proof Metal Desktop Keyboard With Touchpad
View Specification
KY-TB-38-C2 Stainless Steel Keypad With Waterproof Mechanical Buttons
View Specification
KY-PC-MINI-T-DESK Stainless Steel Desktop Keyboard With Trackball or Touchpad
View SpecificationQuestions About This Model
Why is this model taller?
The overall dimension is 346*175.5*70 mm, giving a raised key plane.
Is a pointing device included?
A 25mm or 38mm trackball or a 60x44mm touchpad can be integrated.
What is the key force?
Operation force is under 3N with 2mm of travel.
Which approvals apply?
RoHS, IP65, FCC and CE.
Can the layout be localised?
Yes, the layout is customised free of charge and legends are laser marked or etched.
Request A Quote On KY-PC-F1-DESK
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
