Desktop Keyboard

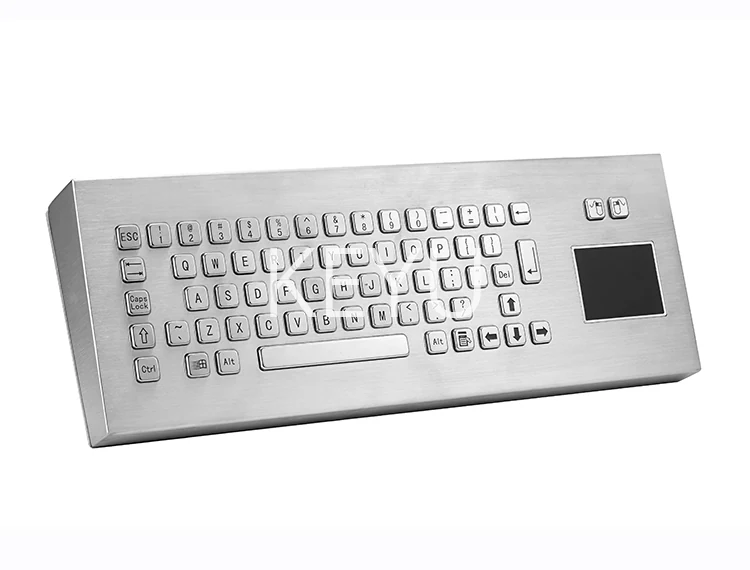

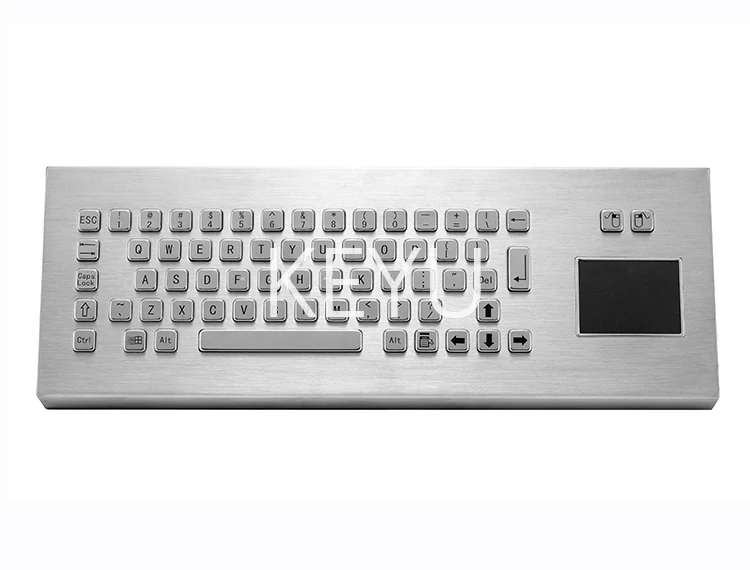

KY-PC-DT-DESK Metal Desktop Keyboard
KY-PC-DT-DESK is a 416*145*45.8 mm stainless steel desktop keyboard sized between the compact and full width slabs. The 145 mm depth gives space for an integrated trackball or touchpad without extending the desk footprint.
Product Overview
KY-PC-DT-DESK is a 416*145*45.8 mm stainless steel desktop keyboard sized between the compact and full width slabs. The 145 mm depth gives space for an integrated trackball or touchpad without extending the desk footprint. It is installed at industrial work stations, control terminals and in public places.
- 416*145 mm footprint balances key spacing against desk space
- 45.8 mm height keeps the unit low on a shared console
- IP65 sealed stainless steel body for factory and public duty
- Optional 25mm or 38mm trackball or 60x44mm touchpad
- Working current below 150mA at DC5V±5%
Application Scenarios
- Industrial work stations on the shop floor
- Control terminals in utility rooms
- Factories and public places with shared entry points
- Maintenance and diagnostics benches
- Logistics dispatch desks
Who It Is For
- Industrial automation contractors
- Facility managers replacing office keyboards on the floor
- Control terminal manufacturers
Problems It Solves
- Office keyboards clogging with dust and swarf on the shop floor
- Desks too shallow for a keyboard plus a separate mouse pad
- Repeated replacement of damaged shared keyboards
Technical Features
- Stainless steel desktop keyboard with vandal proof construction
- Trackball diameter 25mm or 38mm and touchpad 60x44mm options
- Key travel 2mm and operation force under 3N
- DC5V±5% supply and working current below 150mA
- USB and PS/2 interfaces
- Durability of 2Million
Specifications
| Front Panel | 416*145 mm |
|---|---|
| Overall Dimension | 416*145*45.8 mm |
| Key Travel | 2mm |
| Operation Force | <3N |
| Trackball Diameter | 25mm/38mm |
| Touchpad Size | 60x44mm |
| Power Supply | DC5V±5% |
| Working Current | <150mA |
| Interface | USB, PS/2 |
| Durability | ≥2Million |
| Operation Temperature | -10℃~55℃ |
| Approval | RoHS, IP65, FCC, CE |
Materials
- Stainless steel panel
- Stainless steel buttons
Manufacturing Process
- Panel forming to the 416*145 mm outline
- CNC machining of key and pointer openings
- Laser or etched legend marking
- Pointer assembly and sealing
- Brushing and electrical test
Quality Control
- Key response check across the full field
- Travel and force sampling
- IP65 water test on assembled units
- Pointer tracking verification
Approvals And Test Documentation
- RoHS
- IP65
- FCC
- CE
Customisation Options
- Free layout customisation on the 416*145 mm panel
- Trackball or touchpad module choice
- Legend language and symbol set
- USB or PS/2 cable specification
How It Compares
| KY-PC-F3-DESK | Shorter at 416 mm with no separate numeric block |
|---|---|
| KY-PC-F1-DESK | Lower at 45.8 mm for seated console work rather than standing use |
Use Guide
- Check 416 mm of desk width is free before installation
- Choose the pointer module at order stage
- Supply DC5V±5% through USB or PS/2
- Keep ambient within -10℃~55℃
Industries
Solutions
Related Reading
Related Products
16 Key Metal Desktop Keypad KY-2088A-DESK
View Specification
KY-FB-DT-B Explosion Proof Metal Desktop Keyboard With Touchpad
View Specification
KY-TB-38-C2 Stainless Steel Keypad With Waterproof Mechanical Buttons
View Specification
KY-PC-MINI-T-DESK Stainless Steel Desktop Keyboard With Trackball or Touchpad
View SpecificationQuestions About This Model
What is the overall size?
416*145*45.8 mm.
Is a pointer included?
A 25mm or 38mm trackball or a 60x44mm touchpad can be built in.
How is it connected?
By USB or PS/2 at DC5V±5%.
Is it sealed?
It is listed with RoHS, IP65, FCC and CE approvals.
What durability is quoted?
2Million actuations.
Request A Quote On KY-PC-DT-DESK
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
