Desktop Keyboard

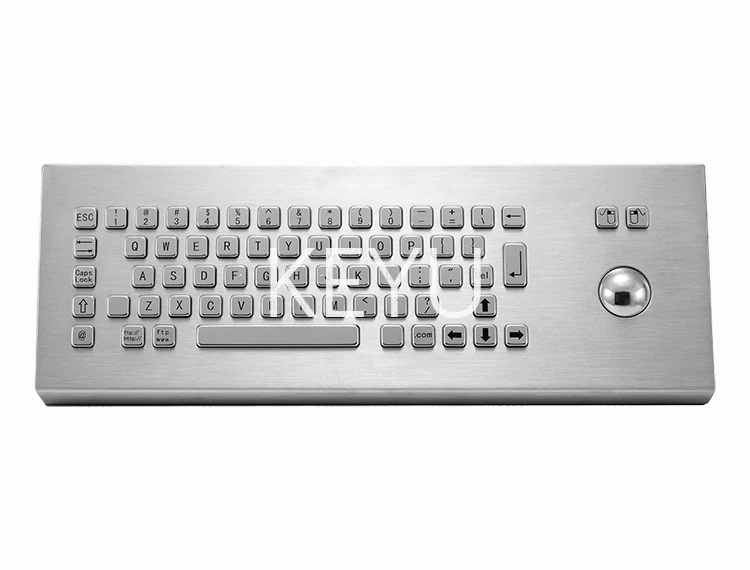

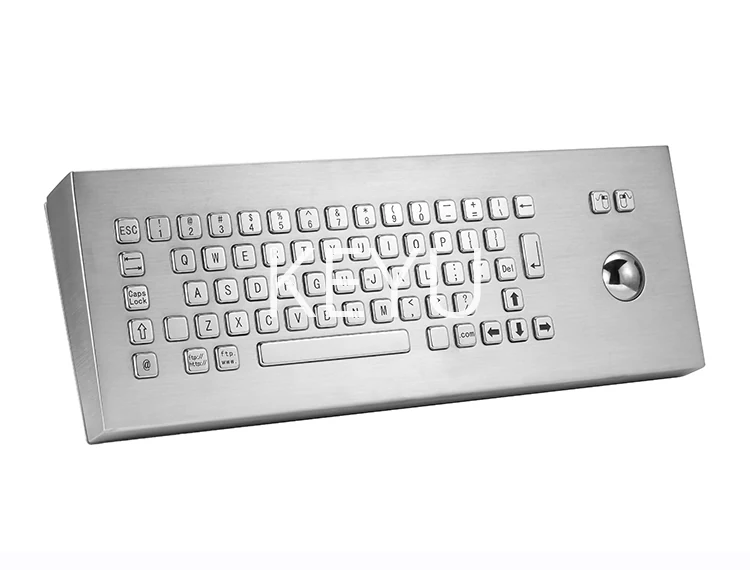

KY-PC-D-DESK Stainless Steel Desktop Keyboard With Trackball
KY-PC-D-DESK is a 66 key stainless steel desktop keyboard with an integrated pointing device for industrial work stations and control terminals.
Product Overview
KY-PC-D-DESK is a 66 key stainless steel desktop keyboard with an integrated pointing device for industrial work stations and control terminals. The water dust and vandal resistant body measures 416*145*45.8mm overall so it sits on a bench without any panel cutout. It is for plants and public sites that need a fixed rugged keyboard rather than an office board.
- Desktop format needs no fascia cutout or enclosure work
- 66 keys give a full working layout in a 416*145mm panel
- Water dust and vandal resistant build for factory and public places
- Trackball diameter 25mm/38mm or touchpad 60x44mm as the pointing option
- IP65 in the approvals list alongside RoHS FCC and CE
- Laser or etching key labeling keeps legends readable over years of use
Application Scenarios
- Industrial work stations on the shop floor
- Control terminals in plant rooms
- Factory quality and inspection benches
- Public places with open access terminals
- Maintenance desks exposed to dust and splash
- Control rooms replacing office keyboards
Who It Is For
- Plant engineering and maintenance teams
- Control system integrators
- Industrial workstation OEMs
- Facility operators of public access terminals
Problems It Solves
- Office keyboards fail quickly in dusty and wet plant areas
- Separate mice slide off benches and get damaged
- Panel mount keyboards require enclosure modification
- Key legends wear off on high use desks
Technical Features
- 66 keys with 2mm key trip and operation force under 3N
- Front panel 416*145mm and overall 416*145*45.8mm
- Working current under 150mA at DC5V plus or minus 5 percent
- USB and PS/2 interface support
- Durability of at least 2 Million operations
- Operation temperature -10 to 55 degrees C and storage -30 to 85 degrees C
Specifications
| Keys | 66 |
|---|---|
| Power supply | DC5V±5% |
| Working current | <150mA |
| Interface | USB、PS/2 |
| Key trip | 2mm |
| Operation force | <3N |
| Durability | ≥2 Million |
| Front panel | 416*145mm |
| Overall | 416*145*45.8mm |
| Trackball diameter | 25mm/38mm |
| Touchpad diameter | 60x44mm |
| Approvals | RoHS、IP65、FCC、CE |
Materials
- Stainless steel panel
- Stainless steel buttons
Manufacturing Process
- Sheet metal forming of the 416*145mm desktop panel
- CNC punching of the 66 key apertures
- Laser marking or etching of key legends
- Trackball or touchpad module fitting
- Sealing and desktop housing assembly
- USB and PS/2 interface test
Quality Control
- Key travel verified at 2mm
- Actuation force confirmed under 3N
- Sealing check against the IP65 approval
- Pointing device tracking test
- Life sampling to at least 2 Million operations
Approvals And Test Documentation
- RoHS
- IP65
- FCC
- CE
Customisation Options
- Free layout customization of the key field
- Choice of 25mm or 38mm trackball or the 60x44mm touchpad
- Laser or etching procedure for key labeling
- USB or PS/2 output
- Legend language for the destination market
How It Compares
| Panel mount keyboards | The desktop housing removes fascia cutting and mounting work entirely |
|---|---|
| Office desktop keyboards | Stainless steel construction with IP65 in the approvals survives dust and splash |
| KY-PC-F2-DESK | 66 keys in a 416*145mm panel rather than 89 keys in a wider 416*166.5mm body |
Use Guide
- Place on a bench allowing 416*145*45.8mm of space
- Connect by USB or PS/2 to the workstation
- Specify the trackball or touchpad option at order
- Operate between -10 and 55 degrees C
- Wipe the steel face rather than soaking the unit
Industries
Solutions
Related Reading
Related Products
16 Key Metal Desktop Keypad KY-2088A-DESK
View Specification
KY-FB-DT-B Explosion Proof Metal Desktop Keyboard With Touchpad
View Specification
KY-TB-38-C2 Stainless Steel Keypad With Waterproof Mechanical Buttons
View Specification
KY-PC-MINI-T-DESK Stainless Steel Desktop Keyboard With Trackball or Touchpad
View SpecificationQuestions About This Model
How many keys does KY-PC-D-DESK have?
66 keys.
What pointing devices are available?
A trackball of 25mm/38mm diameter or a 60x44mm touchpad.
What is the overall size?
416*145*45.8mm with a 416*145mm front panel.
Which approvals are listed?
RoHS IP65 FCC and CE.
What is the key travel?
2mm with an operation force under 3N.
Which systems are supported?
Window XP Window 7 Window 8 Linux Ubuntu and Android.
Request A Quote On KY-PC-D-DESK
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
